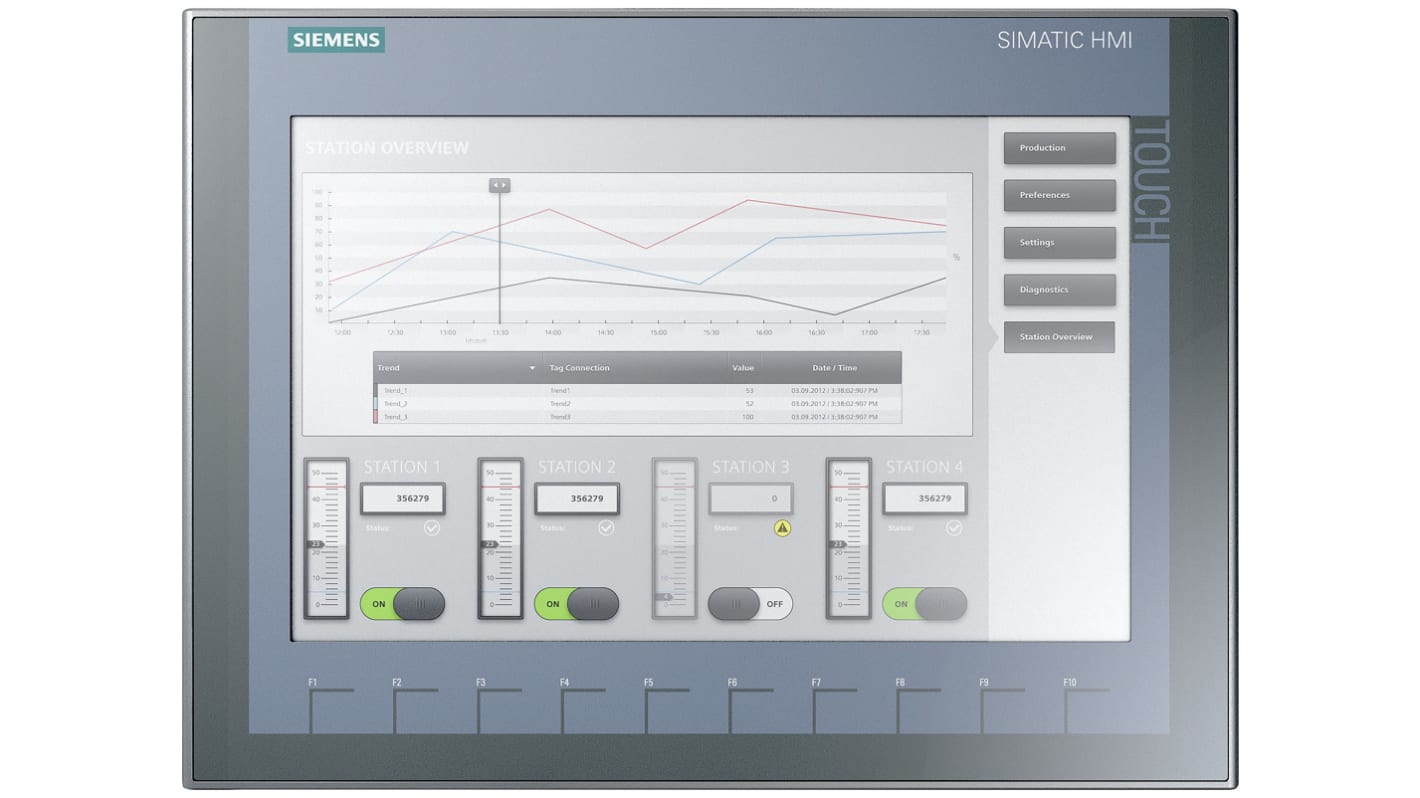

Siemens KTP1200 Basic, SIMATIC Series HMI Panel - 304.8 mm, TFT Display, 1280 x 800 pixel

모든 HMI Displays 열람하기

Subtotal (1 unit)*

₩4,506,500.00

Add to Basket
수량 선택 또는 입력
재고있음
  • 7 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 +₩4,506,500.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
159-6331
제조사 부품 번호:
6AV2123-2MA03-0AX0
제조업체:
Siemens
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Siemens

Series

KTP1200 Basic, SIMATIC

Product Type

HMI Panel

Display Type

TFT

Display Resolution

1280 x 800 pixel

Number of Ports

3

Port Type

USB

Minimum Operating Temperature

0°C

Diagonal Display Size

304.8mm

Backlighting

Yes

Maximum Operating Temperature

50°C

Standards/Approvals

cULus, RCM, KC, CE

Depth

60mm

Width

245mm

Length

330mm

IP Rating

IP65

Hazardous Area Certification

IECEx, ATEX

COO (Country of Origin):
CN

Siemens Touchscreen HMI, 24V DC Supply Voltage, Colour Display - SIMATIC Series - 6AV2123-2MA03-0AX0


To keep in contact with your equipment, team it up with this touchscreen HMI from Siemens. The unit's designed to make working with automated applications a cinch by giving you control over your machinery with just one device. As a result, you benefit from maximum productivity and efficiency. Vector graphics, bar charts and trend curves deliver easy-to-read information that gives you the complete picture. Don't worry about details getting lost in translation as the unit supports 32 languages. It can be mounted vertically or horizontally to best suit your workspace and data presentation. This HMI is a versatile partner for programmers and technicians who maintain and optimise production lines and automated industrial processes.

Features & Benefits


• Widescreen display of 261.1 (W) x 263.2mm (H) is easy to read

• Dimmable backlight, for convenient adjustment to ambient light conditions

• IP65-rated front panel is dust-tight and protected against low-pressure water jets

• Includes a USB port to support additional storage devices or connection to a computer

Does this HMI come with a keyboard?


Yes, the interface includes an onscreen numeric and alphanumeric keyboard, so there's no need to lug around two separate pieces of kit.
