Subtotal (1 unit)*
₩227,122.80
제조사가 재고 비축중
- 2026년 5월 08일 부터 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩227,122.80 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 764-4165
- 제조사 부품 번호:
- 3SE5232-0HU21
- 제조업체:
- Siemens
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Siemens | |
| Product Type | Safety Hinge Switch | |
| Series | 3SE5 | |
| Contact Configuration | 1 NO/1 NC | |
| Housing Material | Plastic | |
| Number of Cable Entries | 1 | |
| Terminal Type | Screw | |
| IP Rating | IP65 | |
| Cable Entry Size | M20 x 1.5 | |
| Contact Current | 6A | |
| Minimum Operating Temperature | -25°C | |
| Contact DC Voltage | 400V dc | |
| Contact AC Voltage | 400V ac | |
| Trigger Angle Range | 10 ° | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | No | |
| Width | 31mm | |
| Length | 92mm | |
| Mechanical Life | 1000000Operations | |
| 모두 선택 | ||
|---|---|---|
브랜드 Siemens | ||
Product Type Safety Hinge Switch | ||
Series 3SE5 | ||
Contact Configuration 1 NO/1 NC | ||
Housing Material Plastic | ||
Number of Cable Entries 1 | ||
Terminal Type Screw | ||
IP Rating IP65 | ||
Cable Entry Size M20 x 1.5 | ||
Contact Current 6A | ||
Minimum Operating Temperature -25°C | ||
Contact DC Voltage 400V dc | ||
Contact AC Voltage 400V ac | ||
Trigger Angle Range 10 ° | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals No | ||
Width 31mm | ||
Length 92mm | ||
Mechanical Life 1000000Operations | ||
- COO (Country of Origin):
- DE

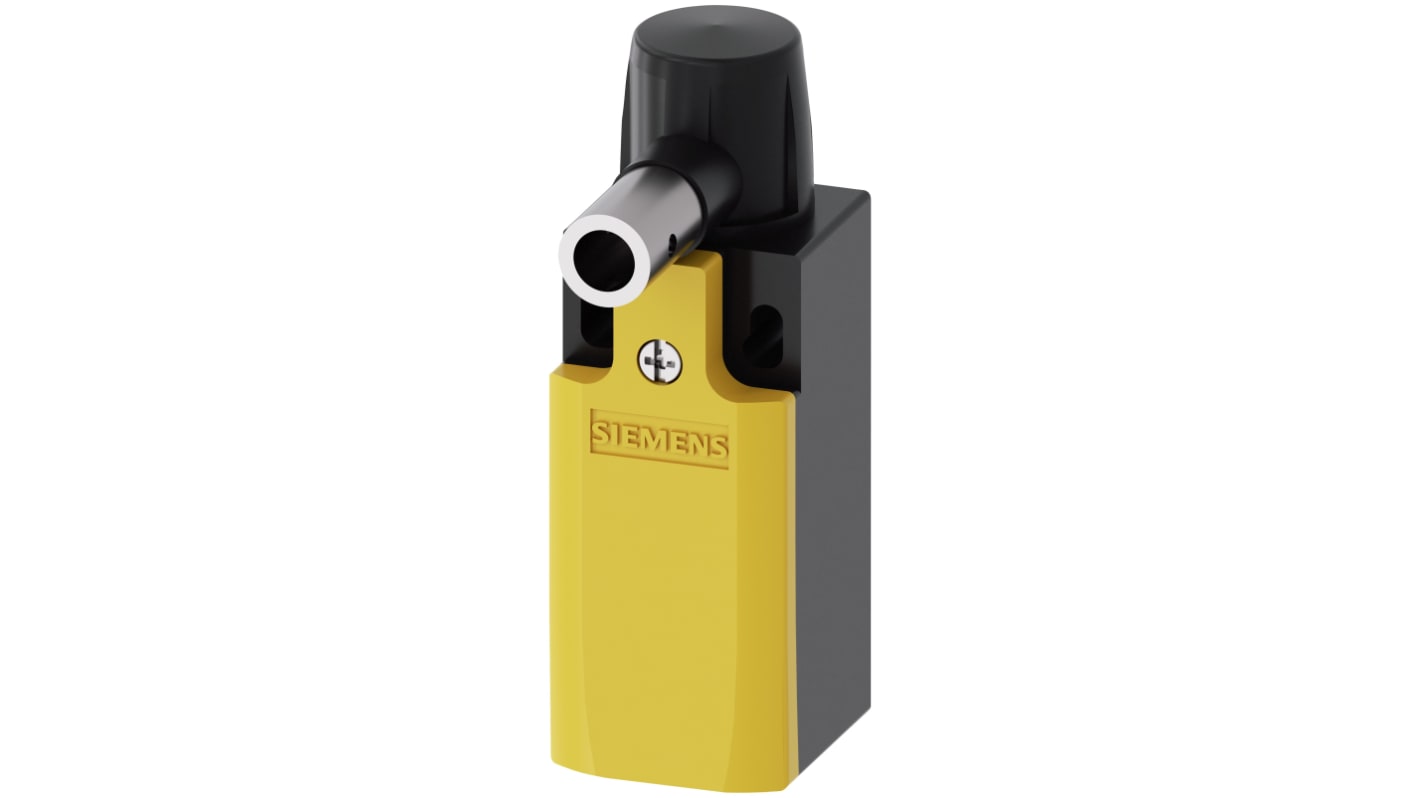

3SE5 Hinge Switch
The SIRIUS 3SE5 Series hinge switch is designed for monitoring hinged doors and flaps. These mechanical position switches offer excellent protection from tampering thanks to the fixed, positive pivoting point connection between switch and door hinge. They have a standard enclosure according to EN 50047 and EN 50041 and a very small operating angle. Simultaneous shut down and signalling is provided in addition by the snap-action contacts.
For the mechanical monitoring of protective doors or flaps
Protection up to Cat 4 (EN 954-1), Up to SIL 3 IEC 62061
Snap on contacts
Simple, fast wiring offers approx 20 to 25% reduction in connection time
Cable entry M20 x 1.5
Actuator head can be rotated in 22.5° increments
Hinge Switch
Note
Actuators are supplied, accessories are for spares.
