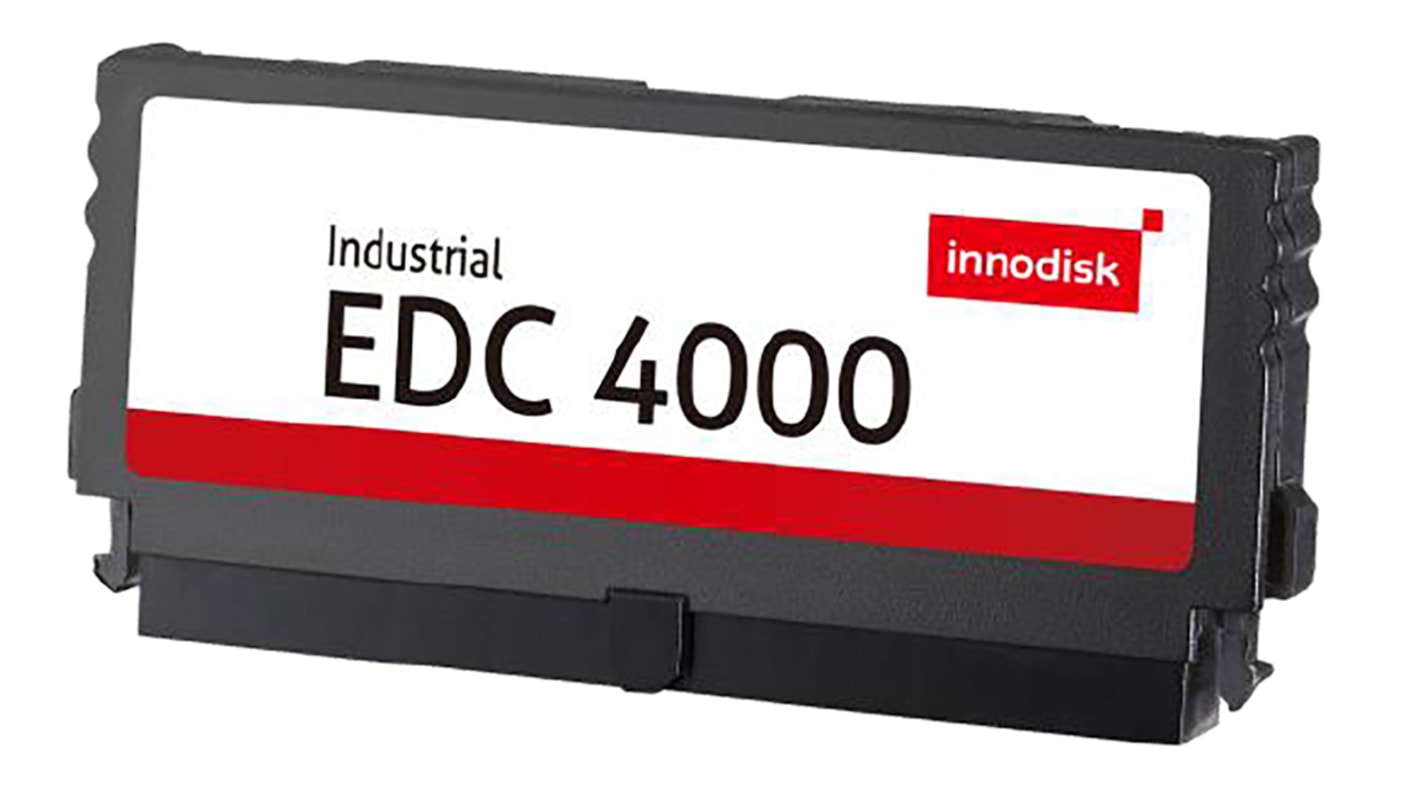

InnoDisk EDC4000 IDE DOM 44 Pins 4 GB Internal SSD

모든 Hard Drives 열람하기
공급 부족
글로벌 공급 부족으로 인해 언제 재입고될지 모릅니다.
RS 제품 번호:
144-8077
제조사 부품 번호:
DE4H-04GD31W1DB
제조업체:
InnoDisk
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

InnoDisk

Memory Size

4GB

Model Number

EDC4000

Sub Type

SSD

Product Type

SSD

Internal/External

Internal

Form Factor

IDE DOM 44 Pins

Industrial Grade

Yes

NAND Type

SLC

Interface Type

PATA

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

85°C

Standards/Approvals

No

Height

27.3mm

Length

50.3mm

Width

5.8 mm

COO (Country of Origin):
TW

Innodisk EDC 4000 Industrial SLC Vertical PATA / IDE DOM


Innodisk’s vertical EDC 4000 fits into any platform with an IDE connector and provides a simple, fast path upgrade. Designed for industrial embedded applications that require a speedy booting process, the EDC 4000 upgrades the working environment efficiently and enhances data transfer rates with read and write performances of up to 40 MB and 20 MB per second respectively. The vertical EDC 4000 comes in capacities ranging from 128 MB to 16 GB.

Embedded DISK CARD (EDC 4000) supports advanced PIO (0-4), Multi-Word DMA (0-2), Ultra DMA (0-4) transfer modes, multi-sector transfers, and LBA addressing.

• iSMART disk health monitoring;• Support static wear levelling algorithm;• Intelligent error recovery system;• Mechanical design for anti-vibration;• High reliability and compatibility;• Enhanced power cycling management;• Industrial Grade Toshiba SLC 60K NAND;• Controlled BOM;• Operating Temperature range: -40ﾟC to +85ﾟC
