Rose Aluminium Standard Series Grey Grey Lid Die Cast Aluminium Enclosure, IP66, IK09 80 mm, 125 mm, 57 mm
- RS 제품 번호:
- 509-305
- 제조사 부품 번호:
- 01081306
- 제조업체:
- Rose
대량 구매 할인 기용 가능
View bulk pricing optionsSubtotal (1 unit)*
₩61,820.00
재고있음
- 4 개 단위 배송 준비 완료
- 추가로 다른 지역에서 271 개 단위 배송 준비 완료
- 추가로 2026년 10월 07일 부터 4 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 24 | ₩61,820.00 |
| 25 - 49 | ₩59,900.00 |
| 50 + | ₩58,560.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 509-305
- 제조사 부품 번호:
- 01081306
- 제조업체:
- Rose
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Rose | |
| Product Type | Enclosure | |
| Body Material | Die Cast Aluminium | |
| External Height | 80mm | |
| External Width | 57mm | |
| External Length | 125mm | |
| IP Rating | IP66 | |
| Colour | Grey | |
| Lid Colour | Grey | |
| Flanged | No | |
| Hazardous Area Certification | Maritime, UL | |
| Shielding | Unshielded | |
| Series | Aluminium Standard | |
| Standards/Approvals | UL508 | |
| Weight | 355g | |
| Transparent Door | No | |
| IK Rating | IK09 | |
| Gasket Material | Polyurethane | |
| 모두 선택 | ||
|---|---|---|
브랜드 Rose | ||
Product Type Enclosure | ||
Body Material Die Cast Aluminium | ||
External Height 80mm | ||
External Width 57mm | ||
External Length 125mm | ||
IP Rating IP66 | ||
Colour Grey | ||
Lid Colour Grey | ||
Flanged No | ||
Hazardous Area Certification Maritime, UL | ||
Shielding Unshielded | ||
Series Aluminium Standard | ||
Standards/Approvals UL508 | ||
Weight 355g | ||
Transparent Door No | ||
IK Rating IK09 | ||
Gasket Material Polyurethane | ||
- COO (Country of Origin):
- DE

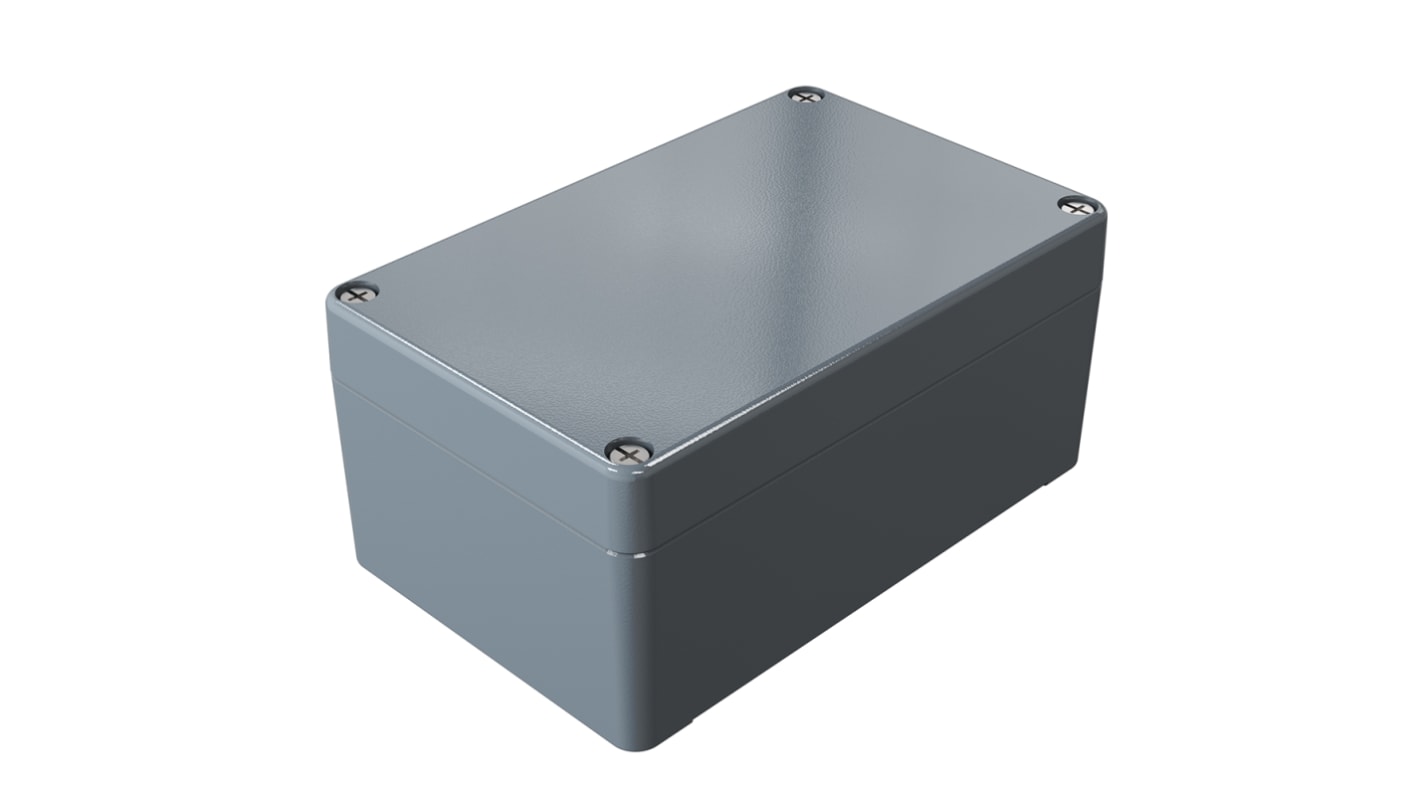

ROSE Grey Die-Cast Aluminium Enclosure, 80mm Height, 125mm Width - Aluminium Standard Series - 01081306
Use this hardwearing enclosure from ROSE for a reliable cable management and protection solution in industrial settings. Thanks to its IP66 (ingress protection) rating, this box protects your electrical components from dust and high-pressure water jets for use in indoor and outdoor environments. Its die-cast aluminium construction makes it resistant to impact and corrosion, so it can withstand use in heavy-duty environments. The enclosure is supplied with captive screws that you can use to secure the protective lid in place, keeping your components safe from tampering.
Features & Benefits
• PU (polyurethane) gasket blocks out contaminants for enhanced electrical safety
• Compact external dimensions of 80 (height) x 125 (width) x 57mm (depth) for storing small devices
• Conforms to UL 508A safety standards for industrial control panels
• Light weight of 449g to minimise strain on a DIN rail or fixing plate
Applications
• Mechanical workshops
• Process control systems
• Telecommunications
Can this enclosure withstand extreme temperatures?
This enclosure has a broad operating temperature range of -40°C to +90°C, so it's suitable for use in demanding environments.
