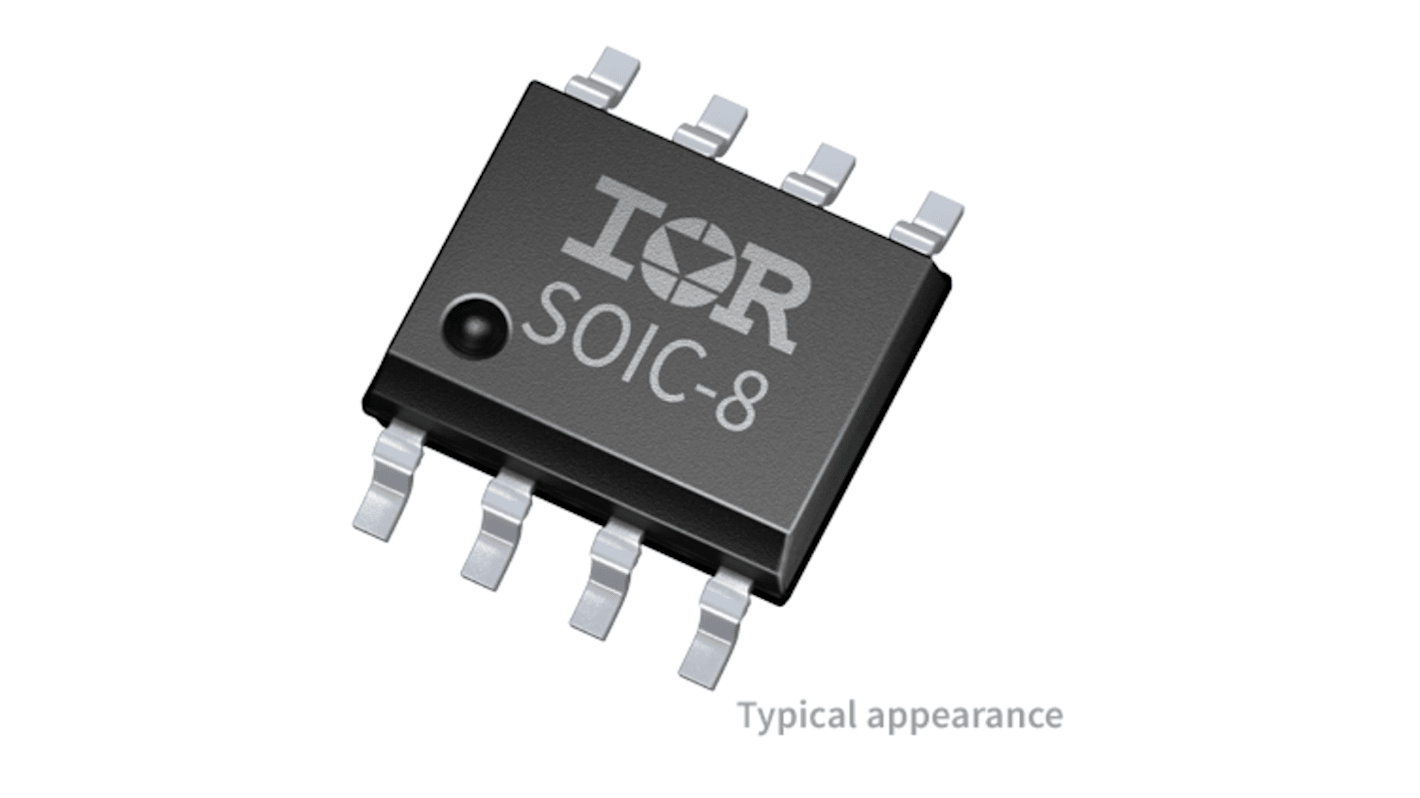

Infineon High Side Gate Driver, 4 A 8-Pin 20 V, SOIC-8

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

모든 Gate Drivers 열람하기

Subtotal (1 reel of 2500 units)*

₩4,267,600.00

Add to Basket
수량 선택 또는 입력
일시적 품절
  • 2026년 5월 25일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
릴당*
2500 +₩1,707.04₩4,268,070.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
257-5604
제조사 부품 번호:
IRS21867STRPBF
제조업체:
Infineon
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Infineon

Product Type

Gate Driver

Output Current

4A

Pin Count

8

Package Type

SOIC-8

Fall Time

18ns

Driver Type

High Side

Rise Time

38ns

Minimum Supply Voltage

6.8V

Maximum Supply Voltage

20V

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

150°C

Standards/Approvals

RoHS

Series

IRS

Automotive Standard

No

The Infineon high and low side driver is a high voltage, high speed power MOSFET and IGBT driver with independent high and low side referenced output channels. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. Low VCC operation allows use in battery powered applications. The logic input is compatible with standard CMOS or LSTTL output, down to 3.3 V logic. The output drivers feature a high pulse current buffer stage designed for minimum driver cross-conduction.

Floating channel designed for bootstrap operation

Fully operational to +600 V

Tolerant to negative transient voltage, dV/dt immune

Low VCC operation

Under voltage lockout for both channels

33 V and 5 V input logic compatible

Matched propagation delay for both channels

Logic and power ground +/- 5 V offset

Lower di/dt gate driver for better noise immunity

Output source/sink current capability 40 A (Typ)
