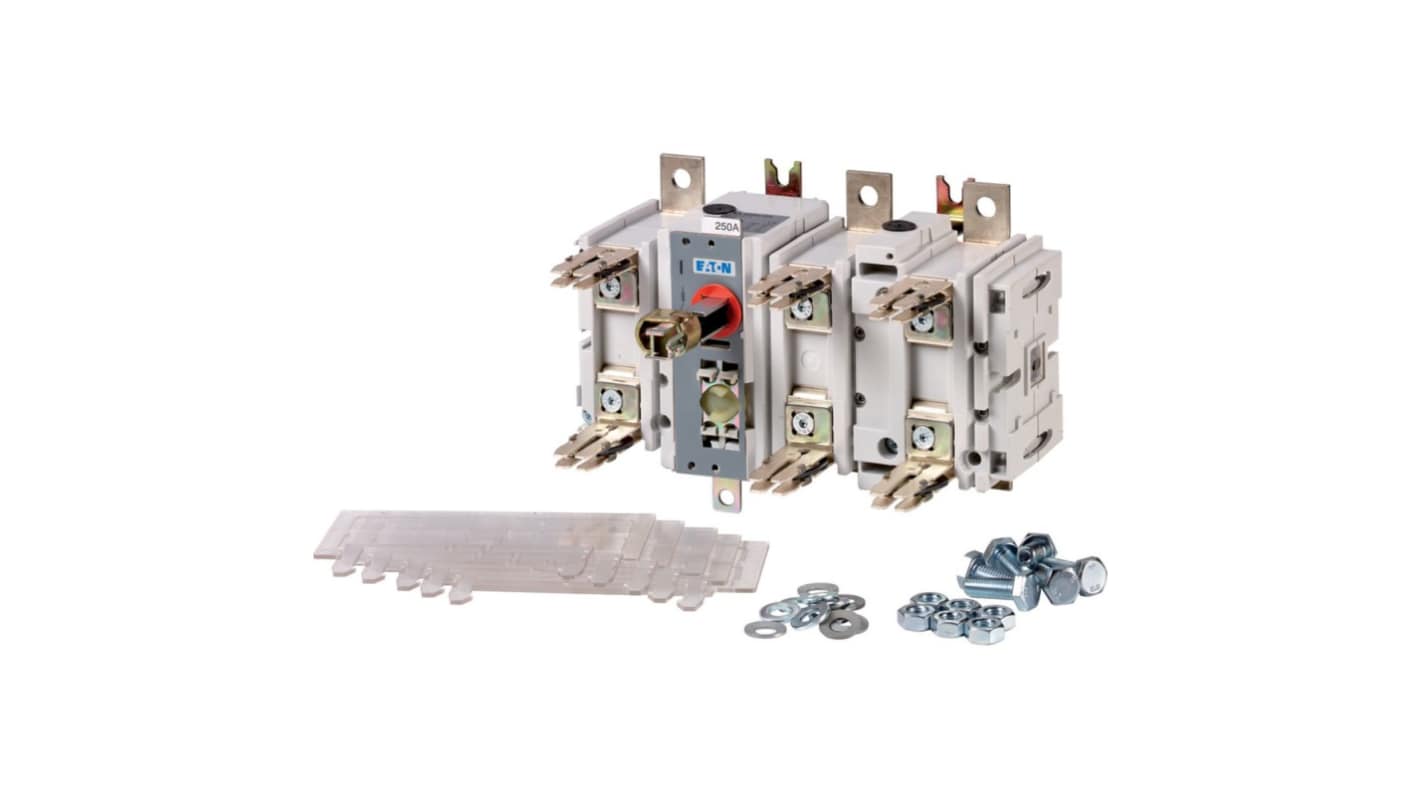

Eaton Fuse Switch Disconnector, 3-Pole, 250 A, 250A
- RS 제품 번호:
- 247-871
- 제조사 부품 번호:
- 1318526 QSA250N-2/3
- 제조업체:
- Eaton
Subtotal (1 unit)*
₩1,498,064.10
제조사가 재고 비축중
- 2026년 7월 06일 부터 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩1,498,064.10 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 247-871
- 제조사 부품 번호:
- 1318526 QSA250N-2/3
- 제조업체:
- Eaton
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Eaton | |
| Product Type | Fuse Switch Disconnector | |
| Number of Poles | 3 | |
| Enclosed/Not Enclosed | Not Enclosed | |
| Mount Type | Rear | |
| Switching Voltage | 690V | |
| Switching Current | 250A | |
| Terminal Type | Screw | |
| Series | QSA | |
| IP Rating | IP00, IP20 | |
| Minimum Operating Temperature | -25°C | |
| Switching Power | 147kW | |
| Mechanical Fuse Size | NH1-NH2 | |
| Fuse Current | 250A | |
| Maximum Operating Temperature | 55°C | |
| Standards/Approvals | VDE 0660, IEC/EN 60204, IEC/EN 60947, IEC/EN 60947-3, RoHS | |
| Auxiliary Contacts Available | Yes | |
| 모두 선택 | ||
|---|---|---|
브랜드 Eaton | ||
Product Type Fuse Switch Disconnector | ||
Number of Poles 3 | ||
Enclosed/Not Enclosed Not Enclosed | ||
Mount Type Rear | ||
Switching Voltage 690V | ||
Switching Current 250A | ||
Terminal Type Screw | ||
Series QSA | ||
IP Rating IP00, IP20 | ||
Minimum Operating Temperature -25°C | ||
Switching Power 147kW | ||
Mechanical Fuse Size NH1-NH2 | ||
Fuse Current 250A | ||
Maximum Operating Temperature 55°C | ||
Standards/Approvals VDE 0660, IEC/EN 60204, IEC/EN 60947, IEC/EN 60947-3, RoHS | ||
Auxiliary Contacts Available Yes | ||
제외
- COO (Country of Origin):
- GB
The Eaton fuse switch-disconnector exemplifies reliability and innovation in electrical engineering. Designed for rear mounting and boasting a robust three-pole configuration, this device is ideal for a range of demanding applications where durability and performance are paramount. It is engineered to handle a high operational power of up to 147 kW, ensuring consistent performance in various environments. The device not only meets stringent industry standards but is also equipped with advanced features that allow for greater operational flexibility. Its compact design makes it suitable for installation in limited spaces, while exceptional protection ratings provide peace of mind in any application. Take advantage of its versatility as it supports ground mounting and is compatible with DIN fuse-links for seamless integration into existing systems.
Fitted with connectors for improved versatility
Suitable for diverse mounting positions to adapt to your installation needs
IP20 degree of protection enhances safety and reliability
Constructed for optimal performance in challenging environments
Ambient operating conditions accommodate a wide temperature range
Designed with a functional stop feature for added control
Optimised for easy integration and configuration in switchgear systems
Offers a clear advantage with its high rated operational power
