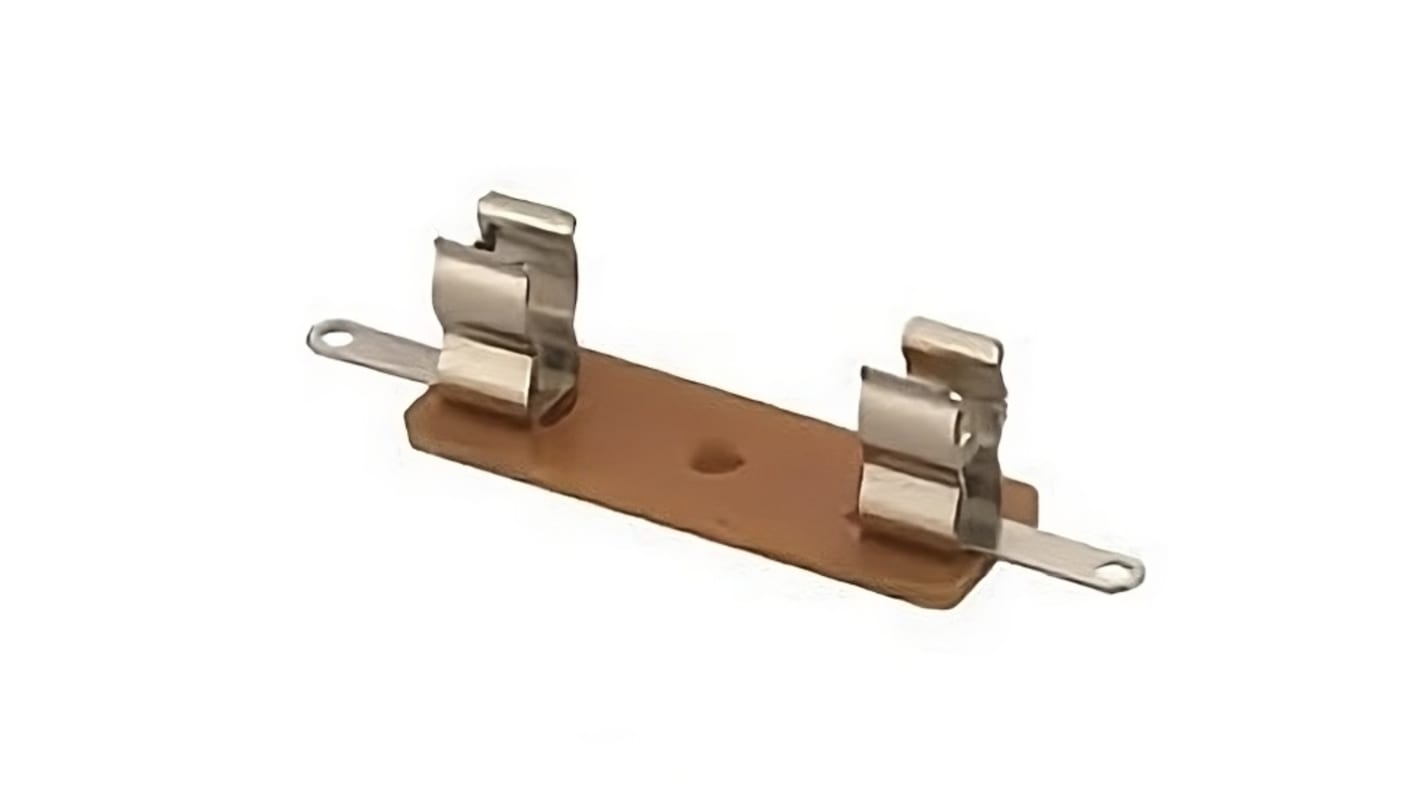

Eaton 10A 6.3 x 32 mm, Panel Cartridge Fuse Block, 250V ac

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

모든 Fuse Blocks 열람하기

Subtotal (1 pack of 10 units)*

₩15,260.00

Add to Basket
수량 선택 또는 입력
재고있음
  • 190 개 단위 배송 준비 완료
  • 추가로 2026년 7월 10일 부터 3,560 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
한팩당*
10 +₩1,526.00₩15,260.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
233-0611
제조사 부품 번호:
BK4-S-4001-1-R
제조업체:
Eaton
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Eaton

Product Type

Fuse Block

Fuse Type

Cartridge

Fuse Size

6.3 x 32 mm

Number of Fuses

1

Current Rating

10A

Voltage

250V ac

Mount Type

Panel

Minimum Operating Temperature

0°C

Maximum Operating Temperature

60°C

Body Material

Phenolic

Standards/Approvals

CE, CSA, UL

Series

BK4

For Use With

Class J

Clip Material

Brass

Holder Terminal Type

Clamp

Dielectric Strength

600V

Compatible Fuse Class

Class J

COO (Country of Origin):
TW

Eaton BK4 Series Fuse Block, 10A Current Rating, 250V AC Voltage - BK4-S-4001-1-R


This fuse Block provides a single mounting point for Class J fuses in panel-mounted electrical assemblies, offering a Compact solution for circuit protection in industrial and automation environments. It is built for integration into control panels and equipment where a secure, single-fuse retention is required and operates within standard moderate-temperature conditions.

Features and Benefits:


• Rated for 10 A current to manage moderate circuit loads • Accepts 6.3 x 32mm Class J fuses for compatibility with common fuse types • 250V AC rating enabling use in typical industrial AC circuits • Phenolic laminate body to provide electrical insulation and structural support • Brass clamp Terminal for secure conductor retention and good conductivity • Dielectric strength of 600V to resist voltage breakdown between live parts

Applications


• Suitable for panel-mounted motor control protection • Ideal for distribution boards in automation cabinets • Used with control-system circuits requiring Class J protection • Can be used for single-line branch circuit safeguarding in machinery • Suitable for replacement or upgrade of single-position fuse holders in electrical panels

What Terminal connection method does it use?


It employs a clamp-style Terminal that secures conductors with a brass clip to maintain a low-resistance contact.

What ambient temperatures can it tolerate during operation?


The holder is suitable for use in environments up to 60 °C and down to 0 °C without degradation of standard performance.

Which approvals cover its acceptance in installations?


The component meets recognised safety standards for use where CE, CSA and UL approvals are required.

How many fuses can be installed in a single unit?


The design accommodates one fuse position for single-circuit protection.

Note

Eaton formerly known as Bussmann
