Eaton 15A 5 x 20 mm, Panel Cartridge Fuse Block, 250V

RS 제품 번호:: 233-0605
제조사 부품 번호:: BK4-HTC-518M
제조업체:: Eaton

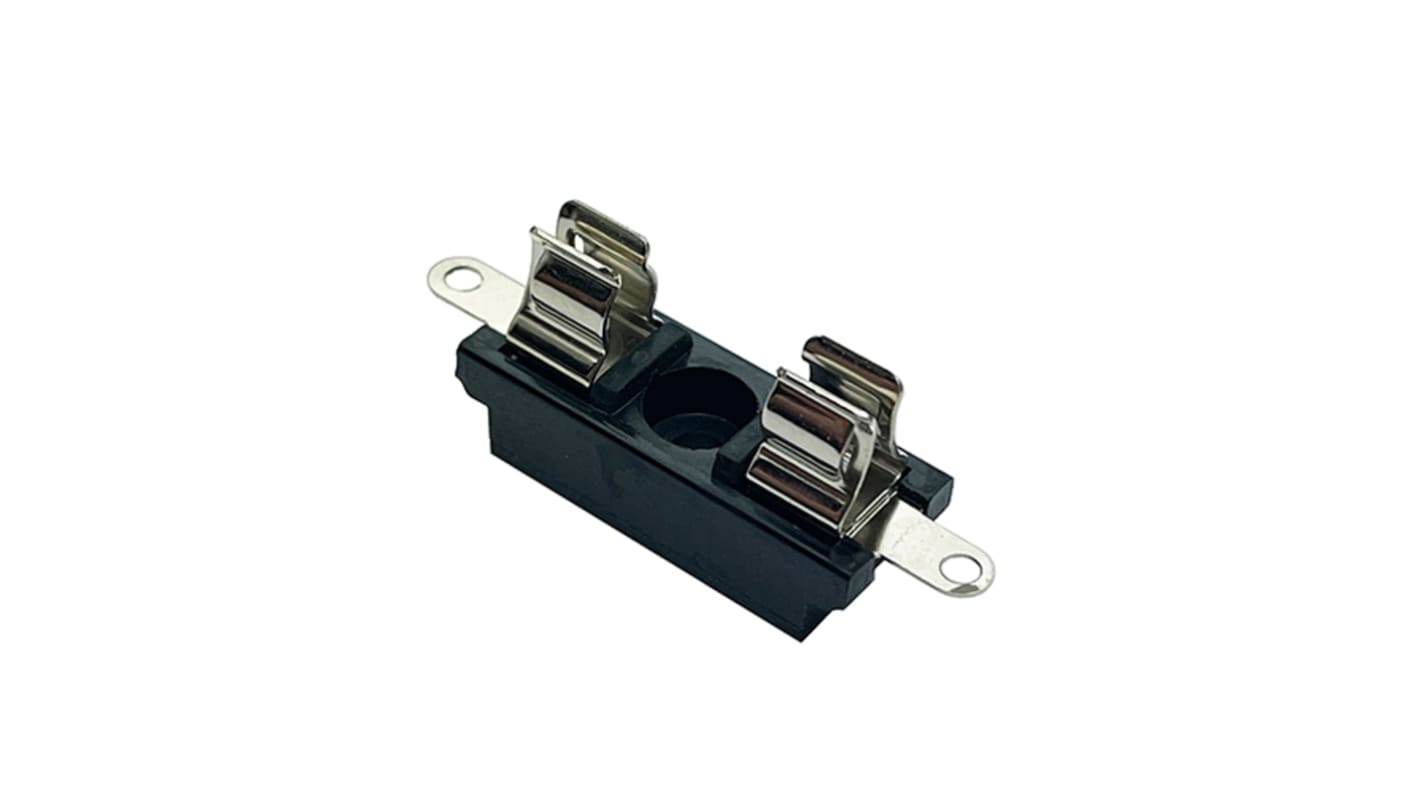

Eaton 15A 5 x 20 mm, Panel Cartridge Fuse Block, 250V

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

대량 구매 할인 기용 가능

View bulk pricing options

Subtotal (1 Box of 4000 units)*

₩5,176,300.00

일시적 품절

2026년 11월 30일 부터 배송

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

Box(es)	Per Box	한팩당*
1 - 4	₩5,176,300.00	₩1,294.00
5 +	₩5,021,020.00	₩1,256.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 233-0605
제조사 부품 번호:: BK4-HTC-518M
제조업체:: Eaton

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Eaton
	Fuse Type	Cartridge
	Product Type	Fuse Block
	Fuse Size	5 x 20 mm
	Number of Fuses	1
	Current Rating	15A
	Voltage	250V
	Minimum Operating Temperature	0°C
	Mount Type	Panel
	Maximum Operating Temperature	60°C
	Body Material	Thermoplastic
	Standards/Approvals	CSA, UL, CE
	Compatible Fuse Class	Class J
	Holder Terminal Type	Clamp
	Clip Material	Copper
	For Use With	Class J
	Series	BK4
	Dielectric Strength	600V

	모두 선택
	브랜드 Eaton
	Fuse Type Cartridge
	Product Type Fuse Block
	Fuse Size 5 x 20 mm
	Number of Fuses 1
	Current Rating 15A
	Voltage 250V
	Minimum Operating Temperature 0°C
	Mount Type Panel
	Maximum Operating Temperature 60°C
	Body Material Thermoplastic
	Standards/Approvals CSA, UL, CE
	Compatible Fuse Class Class J
	Holder Terminal Type Clamp
	Clip Material Copper
	For Use With Class J
	Series BK4
	Dielectric Strength 600V

Datasheet - BK4-HTC-518M

COO (Country of Origin):: TW

Eaton BK4 Series Fuse Block, 15A Current Rating, 250V Voltage - BK4-HTC-518M

This fuse Block provides a Compact means to secure and connect a single Class J 5x20mm fuse within panel-mounted electrical assemblies. It is intended for use where controlled overcurrent protection and straightforward installation are required, offering insulation and a clamp-style Terminal arrangement to integrate into industrial control and distribution setups.

Features and Benefits:

• Thermoplastic body limits heat transfer and reduces weight • Copper clips ensure low-resistance contact and longevity • Rated for 15A to match common control circuit loads • 250V rating supports moderate-voltage distribution systems • Dielectric strength of 600V enhances isolation safety margins • Panel-mount design allows secure fixed installation

Applications

• Suitable for industrial motor control panels requiring Class J protection • Ideal for automation racks where straightforward fuse replacement is needed • Used with distribution modules in electrical switchboards • Can be used for protection in mechanical equipment control circuits • Used for retrofitting legacy panels that accept 5x20mm fuses

What Terminal connection style does it use and how does that affect installation?

It uses a clamp-style Terminal that provides a firm mechanical and electrical connection, simplifying screw-down wiring during panel assembly.

What ambient temperatures can it reliably operate in?

It is specified to operate between 0°C and 60°C, making it suitable for typical indoor industrial environments.

Which approvals indicate suitability for international installations?

It carries CSA, UL and CE approvals, reflecting conformity with North American and European component standards.

How many fuses can be accommodated and what mounting method is required?

The holder accepts a single fuse and is designed for panel mounting to secure it within control enclosures.

Note

Eaton formerly known as Bussmann
