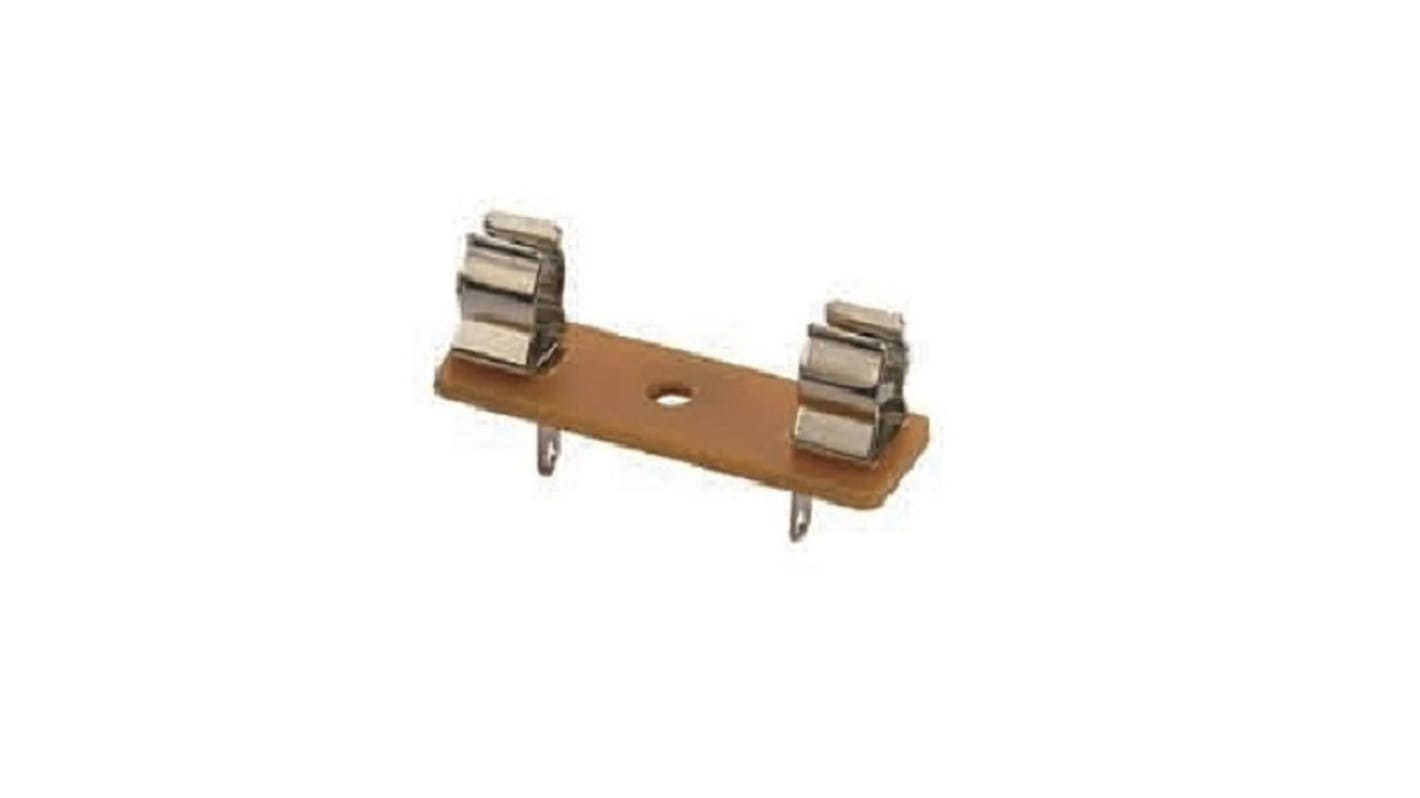

Eaton 25A 6.3 x 32 mm, Panel Cartridge Fuse Block, 250V ac

RS 제품 번호:: 233-0602
제조사 부품 번호:: BK2-S-4202-1-R
제조업체:: Eaton

Eaton 25A 6.3 x 32 mm, Panel Cartridge Fuse Block, 250V ac

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

Subtotal (1 pack of 10 units)*

₩16,080.00

일시적 품절

2026년 7월 10일 부터 4,060 개 단위 배송

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당	한팩당*
10 +	₩1,608.00	₩16,080.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 233-0602
제조사 부품 번호:: BK2-S-4202-1-R
제조업체:: Eaton

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Eaton
	Product Type	Fuse Block
	Fuse Type	Cartridge
	Fuse Size	6.3 x 32 mm
	Number of Fuses	1
	Current Rating	25A
	Voltage	250V ac
	Mount Type	Panel
	Minimum Operating Temperature	0°C
	Maximum Operating Temperature	60°C
	Body Material	PA66
	Standards/Approvals	UL, CE, CSA
	Dielectric Strength	600V
	Compatible Fuse Class	Class J
	For Use With	Class J
	Series	BK2
	Clip Material	Copper
	Holder Terminal Type	Clamp

	모두 선택
	브랜드 Eaton
	Product Type Fuse Block
	Fuse Type Cartridge
	Fuse Size 6.3 x 32 mm
	Number of Fuses 1
	Current Rating 25A
	Voltage 250V ac
	Mount Type Panel
	Minimum Operating Temperature 0°C
	Maximum Operating Temperature 60°C
	Body Material PA66
	Standards/Approvals UL, CE, CSA
	Dielectric Strength 600V
	Compatible Fuse Class Class J
	For Use With Class J
	Series BK2
	Clip Material Copper
	Holder Terminal Type Clamp

Datasheet - BK2-S-4202-1-R

COO (Country of Origin):: TW

Eaton BK2 Series Fuse Block, 25A Current Rating, 250V AC Voltage - BK2-S-4202-1-R

This fuse Block is a single-position holder designed to accommodate Class J fuses in panel-mounted electrical assemblies. It provides a secure mounting solution for overcurrent protection in control panels and equipment, enabling straightforward replacement of fuses while supporting typical industrial operating environments.

Features and Benefits:

• 25A current rating for moderate-duty circuit protection • 250V AC working voltage suitable for standard AC systems • Clamp-style terminals ensure tight conductor connection • PA66 body offers electrical insulation and mechanical stability • Copper clip material for consistent electrical contact • Dielectric strength rated 600V to resist breakdown

Applications

• Suitable for protection circuits in automation control panels • Ideal for power distribution modules in electrical switchgear • Used with Class J fuses in industrial machinery protection • Can be used for maintenance replacement in retrofit projects • Used for panel-mounted overcurrent devices in factories

What temperature range can it operate within safely?

It is rated to operate between 0°C and 60°C, so it should be installed where ambient temperatures remain within this range.

How many fuses does a single unit accommodate?

Each unit holds one fuse, designed for straightforward single-circuit protection.

What mounting arrangement is required for installation?

It is designed for panel mounting and is secured to panels using its intended mounting interface.

Which standards has it been assessed against for acceptance?

It carries UL, CE and CSA approvals, indicating conformity with those inspection and safety frameworks.

What fuse size is compatible with the holder?

The holder accepts 6.3 x 32mm fuses compatible with the specified Class J family.

Note

Eaton formerly known as Bussmann
