모두 선택	제품 정보	값
	브랜드	IKALOGIC
	Dimensions	84.9 x 59.9 x 13.1mm
	Maximum Operating Temperature	+40°C
	Model Number	SP209
	Length	84.9mm
	Input Impedance	200 kΩ
	Minimum Operating Temperature	+10°C
	Height	13.1mm
	Weight	105g
	Width	59.9mm

	모두 선택
	브랜드 IKALOGIC
	Dimensions 84.9 x 59.9 x 13.1mm
	Maximum Operating Temperature +40°C
	Model Number SP209
	Length 84.9mm
	Input Impedance 200 kΩ
	Minimum Operating Temperature +10°C
	Height 13.1mm
	Weight 105g
	Width 59.9mm

Datasheet

COO (Country of Origin):: FR

9 logic channels with adjustable thresholds (1.8V, 2.5V, 3.3V, 5V)
State of the art input stage, with Schmitt triggers that eliminate glitches on slow signals
200 MHz sampling rate, with all 9 channels used
External clock option (state mode), up to 50MHz
Precise trigger-In and trigger-Out signals on SMA ports
Samples compression and streaming via USB
2Gb DDR-3 memory kicks-in when USB isn't fast enough

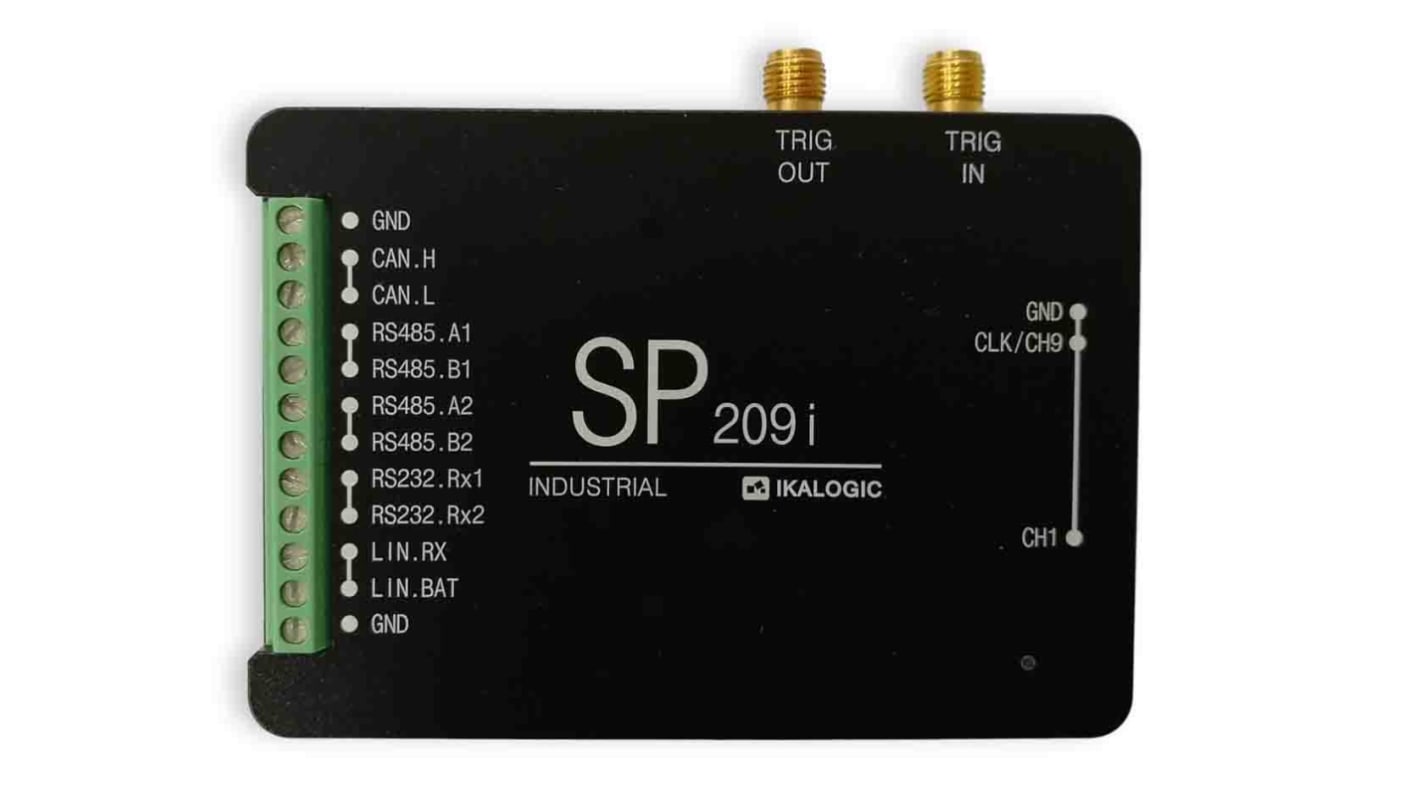

Embedded receivers on industrial version: SP209i (RS232, CAN, LIN, RS485)
Guaranteed performances on all hosts
Capture very long sequences of logic signals (up to 2 Tera samples)
Software lets you view decoded signals in many different levels of abstractions (Packets or detailed bits and bytes)
Target very specific event thanks to a versatile multi-stage trigger system
Device performance do not depend on USB connection bandwidth
Software running on Windows, macOS and Linux
Software is free, intuitive and very easy to use
Synchronize captured samples with other lab instruments via Trigger IN and OUT ports
Premium quality micro-grabbers probes set

IKALOGIC SP209 Logic analyzer
