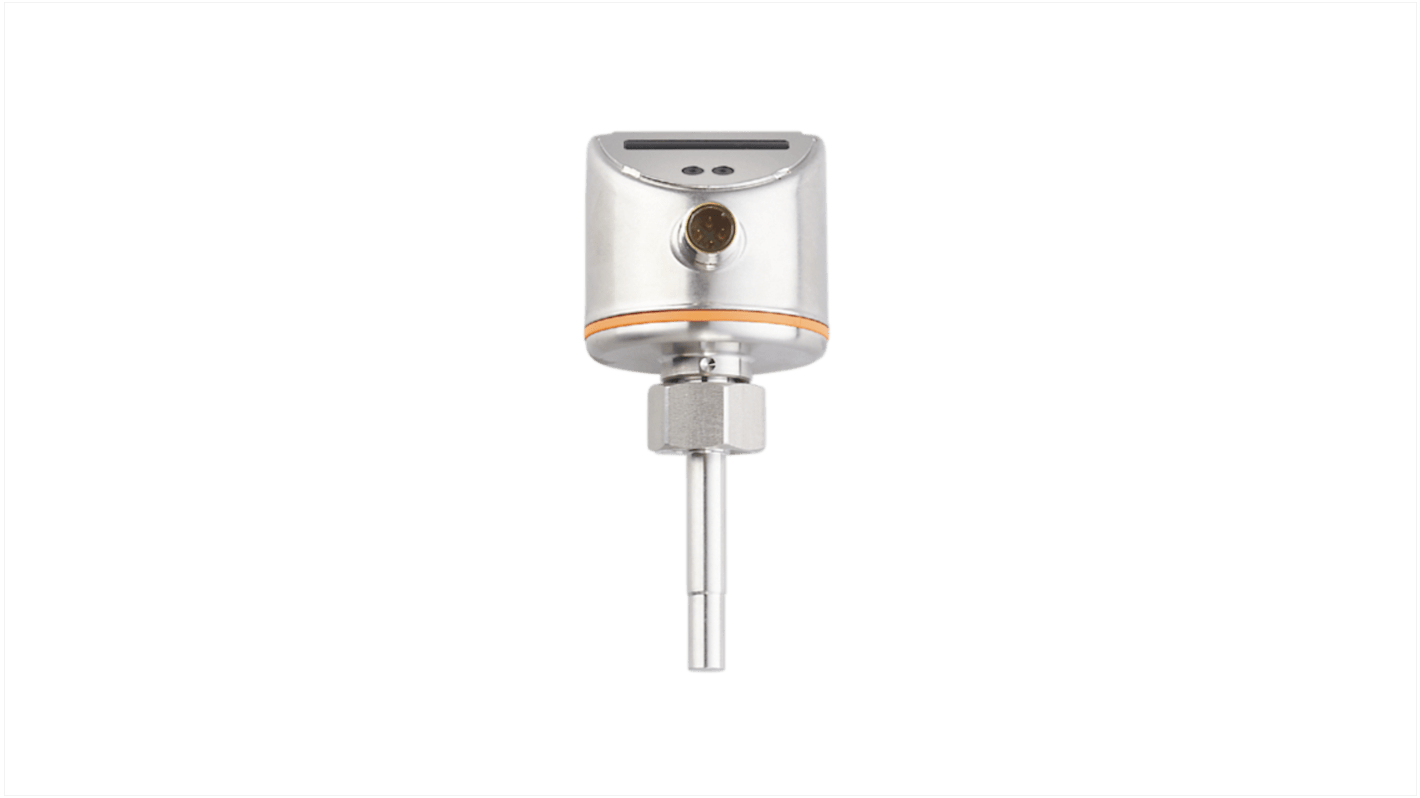

ifm electronic SI Series Flow Monitor Flow Sensor for Liquid

모든 Flow Sensors 열람하기

Subtotal (1 unit)*

₩832,825.50

Add to Basket
수량 선택 또는 입력
재고있음
  • 9 개 단위 배송 준비 완료
  • 추가로 2026년 4월 30일 부터 7 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 +₩832,825.50

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
191-521
제조사 부품 번호:
SI500A
제조업체:
ifm electronic
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

ifm electronic

Media Monitored

Liquid

Product Type

Flow Sensor

Device Type

Flow Monitor

Housing Material

316L Stainless Steel

Maximum Pressure

300bar

Minimum Media Temperature

-25°C

IP Rating

IP67, IP65

Maximum Supply Voltage

36V

Maximum Media Temperature

80°C

Minimum Operating Temperature

0°C

Maximum Operating Temperature

100°C

Series

SI

Standards/Approvals

UKCA, CE, UL, DIN EN 61000-6-2

Current Rating

20mA

COO (Country of Origin):
RO
The ifm electronic Flow Monitor is a versatile device designed for accurate flow measurement in both liquids and gases. It features a single PNP digital output that can be configured for normally open or normally closed operation, with a maximum voltage drop of 2.5 V and a permanent current rating of 250 mA. The monitor is equipped with short circuit protection and overload protection. The response time is adjustable between 1 and 10 seconds for both liquids and gases. The flow monitor operates within an ambient temperature range of -20 to 60°C and a storage temperature range of -25 to 100°C, with an IP 67 protection rating. Switch points are adjusted using a pushbutton for ease of use.

Reliable monitoring of liquids and gases in pipes

Variable process connection using adapters

Easy setting of the switch points for quick set-up

Robust stainless steel housing for use in harsh industrial environments

LED bar graph for indication of switch point and flow
