ifm electronic SN0150 Series, DIN Rail Flow Controller, Relay Output 240 V ac
- RS 제품 번호:
- 411-144
- 제조사 부품 번호:
- SN0150
- 제조업체:
- ifm electronic
Subtotal (1 unit)*
₩717,483.20
재고있음
- 10 개 단위 배송 준비 완료
- 추가로 2026년 3월 23일 부터 3 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩717,483.20 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 411-144
- 제조사 부품 번호:
- SN0150
- 제조업체:
- ifm electronic
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | ifm electronic | |
| Product Type | Flow Controller | |
| Terminal Type | Combicon Connector | |
| Control Output | Relay | |
| Mount Type | DIN Rail | |
| Display Screen | LED | |
| Minimum Operating Temperature | -20°C | |
| Maximum Supply Voltage | 240V ac | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | UL, CE | |
| Hazardous Area Certification | No | |
| Series | SN0150 | |
| Current Rating | 4 A | |
| 모두 선택 | ||
|---|---|---|
브랜드 ifm electronic | ||
Product Type Flow Controller | ||
Terminal Type Combicon Connector | ||
Control Output Relay | ||
Mount Type DIN Rail | ||
Display Screen LED | ||
Minimum Operating Temperature -20°C | ||
Maximum Supply Voltage 240V ac | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals UL, CE | ||
Hazardous Area Certification No | ||
Series SN0150 | ||
Current Rating 4 A | ||
- COO (Country of Origin):
- DE

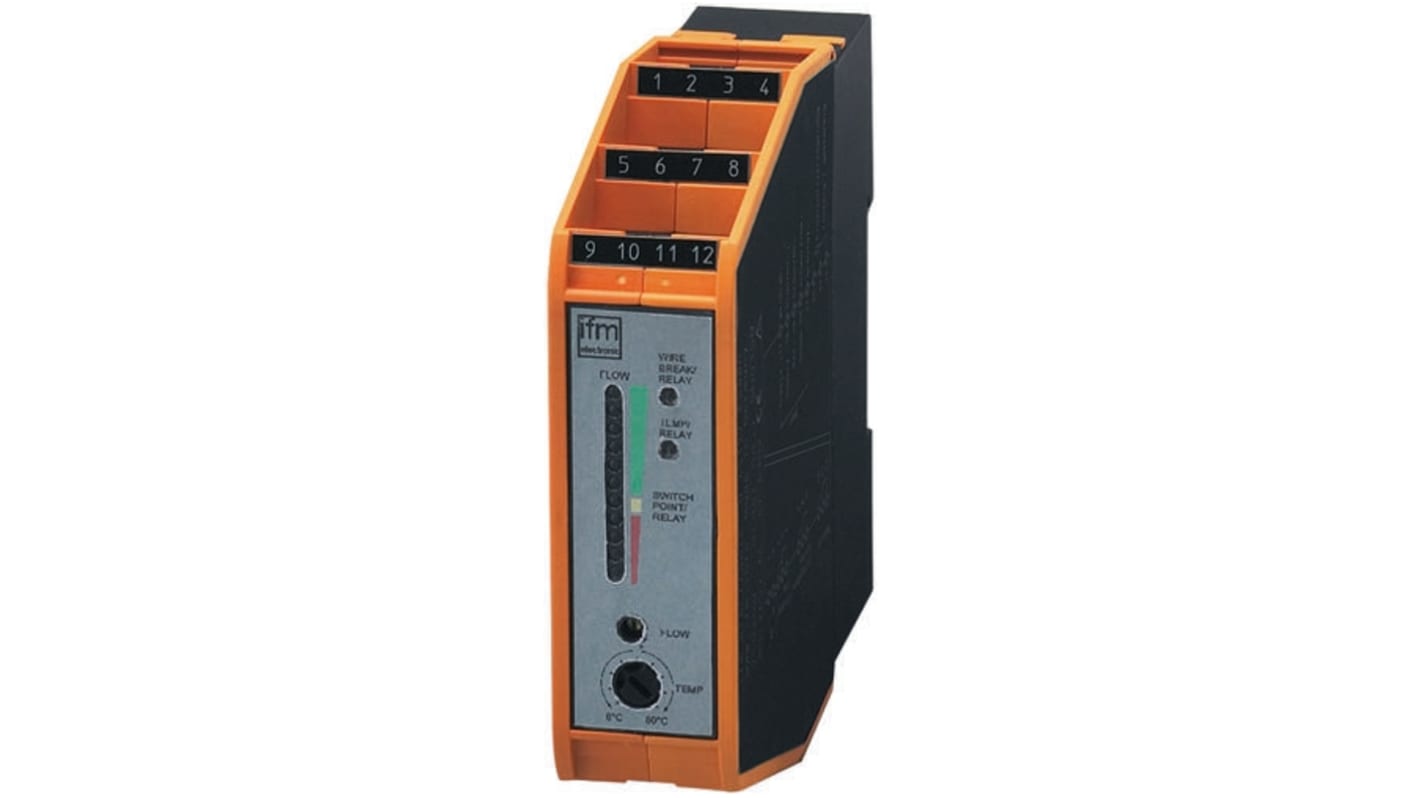

ifm electronic Control Monitor For Flow Sensor
The ifm electronic control monitor for flow sensor operates. It has 3 switching functions one is relay energised when the flow is present and during the power-ON delay time for flow monitoring, second is relay energised when the temperature is exceeded for temperature monitoring and third is relay de-energised in case of wire break or short circuit for wire break monitoring. The input supply voltage rating ranging between 90VAC and 240VAC. The sensors are connected via pre-mounted comb icon connectors with screw terminals. The slim (25mm) control cabinet housing can be easily mounted on a DIN rail.
Features and Benefits
For the connection of flow sensors
Adjustable switching outputs for monitoring flow and temperature
Clearly visible multi-coloured LED bar graph display
Signal output via potential-free relay contacts with 4A current rating at 230VAC
Switch points configurable using a potentiometer
DIN rail mounting
Power consumption is 4VA
Combicon connector for electrical connection
Applications
Flow, temperature and wire-break monitoring
Industrial use
Certifications
CE certified
UL listed
