nVent HOFFMAN MKD Series Mild Steel 2-Door Floor Standing Enclosure, Double Door Door, IP55 500 mm, 1600 mm 2000 mm
- RS 제품 번호:
- 275-082
- 제조사 부품 번호:
- MKD20165R5
- 제조업체:
- nVent HOFFMAN
Subtotal (1 unit)*
₩3,703,440.00
제조사가 재고 비축중
- 2026년 10월 19일 부터 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩3,703,440.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 275-082
- 제조사 부품 번호:
- MKD20165R5
- 제조업체:
- nVent HOFFMAN
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | nVent HOFFMAN | |
| Number of Doors | 2 | |
| Product Type | Floor Standing Enclosure | |
| IP Rating | IP55 | |
| Construction | Welded | |
| Series | MKD | |
| Door Type | Double Door | |
| Body Material | Mild Steel | |
| External Width | 1600mm | |
| External Depth | 500mm | |
| External Height | 2000mm | |
| Mounting plate | Yes | |
| Colour RAL | RAL 7035 | |
| Standards/Approvals | EAC, UKCA, CE, cULus-UL Listed, GOST | |
| IK Rating | IK10 | |
| 모두 선택 | ||
|---|---|---|
브랜드 nVent HOFFMAN | ||
Number of Doors 2 | ||
Product Type Floor Standing Enclosure | ||
IP Rating IP55 | ||
Construction Welded | ||
Series MKD | ||
Door Type Double Door | ||
Body Material Mild Steel | ||
External Width 1600mm | ||
External Depth 500mm | ||
External Height 2000mm | ||
Mounting plate Yes | ||
Colour RAL RAL 7035 | ||
Standards/Approvals EAC, UKCA, CE, cULus-UL Listed, GOST | ||
IK Rating IK10 | ||
제외
- COO (Country of Origin):
- RO

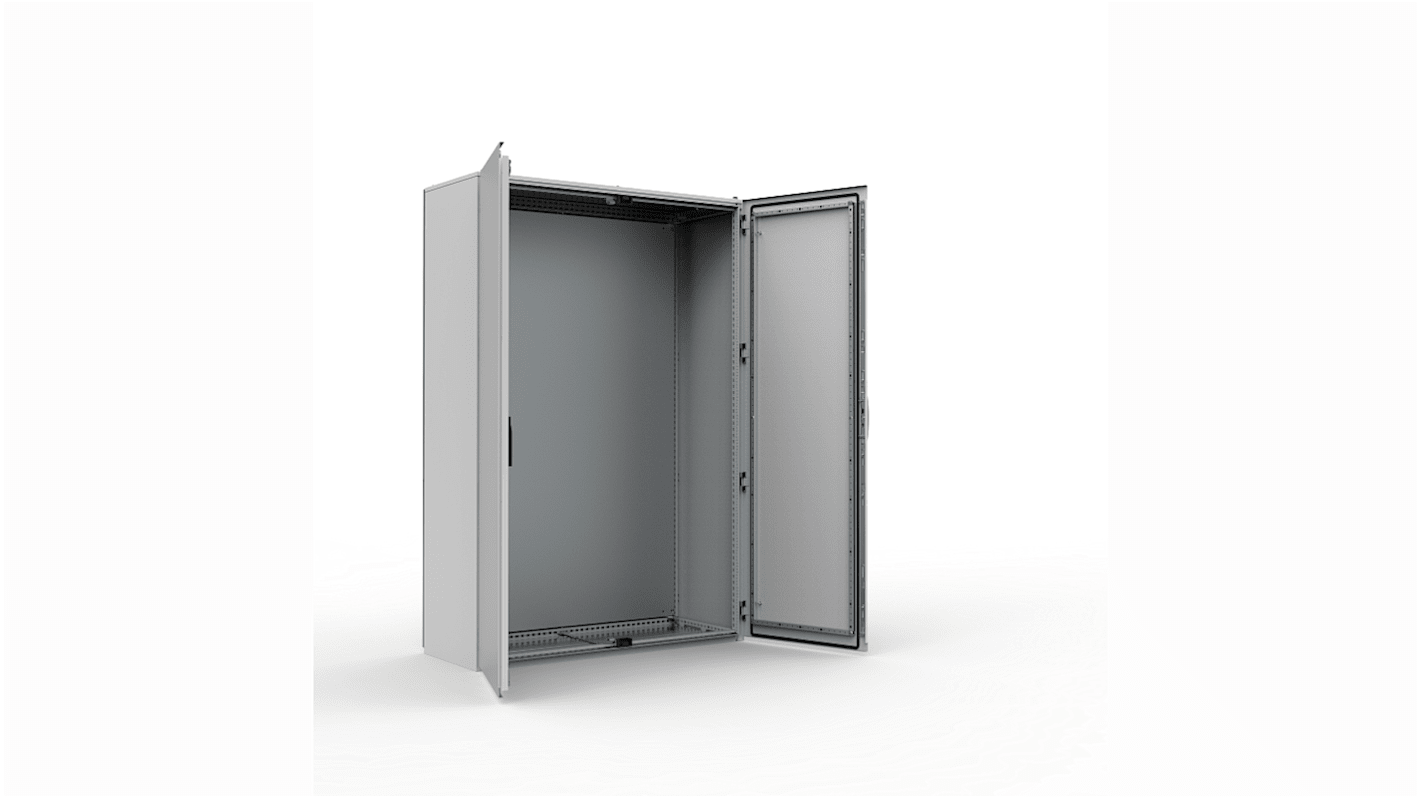

The nVent Hoffman Floor Standing Enclosure is specifically designed for tight spaces where a single door would occupy too much area. This enclosure meets high protection standards with an IP 55 rating, ensuring components within are safeguarded against dust and water ingress. Constructed with a robust frame utilizing 1.35 mm painted steel, it features an innovative four times folded design, which not only enhances its durability but also provides the flexibility of depth adjustment for the mounting plate.
Doors designed with a four point locking system for improved security
Easy access through two doors minimising the space required for operation
Integrated depth profiles provide versatile mounting options for accessories
Environmentally friendly packaging designed for easy recycling
