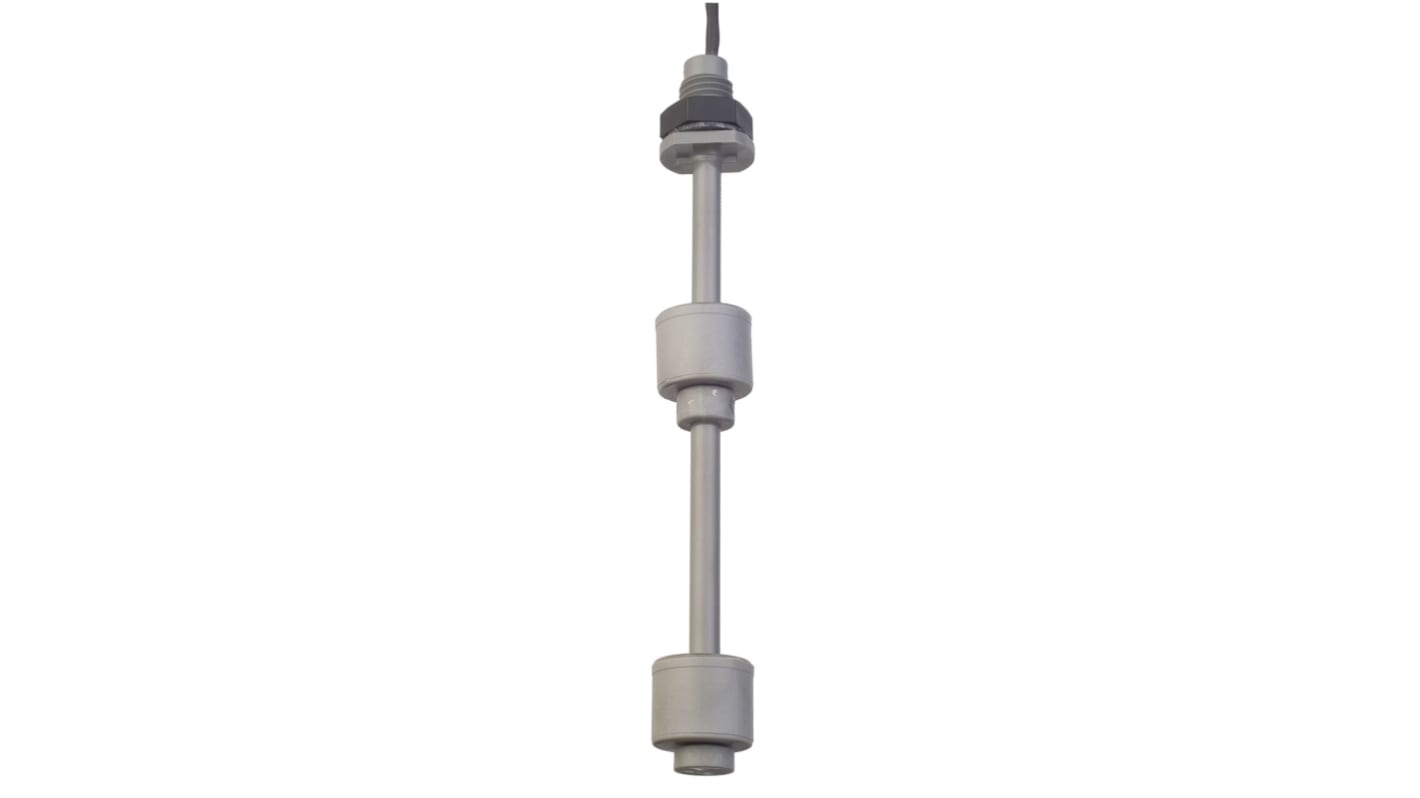

RS PRO Internal Polyphenylene Sulfide Float Switch, Float, 1m Cable, 240V ac Max, 120V dc Max

모든 Float Switches 열람하기

Subtotal (1 unit)*

₩46,962.40

Add to Basket
수량 선택 또는 입력
제한된 재고
  • 9 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 +₩46,962.40

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
191-9508
제조업체:
RS PRO
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

RS PRO

Device Type

Float

Mounting Type

Internal

Body Material

Polyphenylene Sulfide

Cable Length

1m

Minimum Operating Temperature

-10°C

Maximum Operating Temperature

+85°C

Maximum AC Voltage

240V

Maximum DC Voltage

120V

Maximum Current

600 mA

Gasket Material

Nitrile

Current Rating

600 mA

COO (Country of Origin):
CN
The dual float version can be used for controlling emptying of tanks via electromechanical relays. These float switch series is designed to offer a number of switching options to meet a variety of system requirements. They are manufactured in PPS (Polyphenylene Sulphide), which is compatible with a wide range of liquids. They are mounted internally (requires access to the inside of the tank) via a M16 thread with nylon nut & a nitrile gasket. The single float types are generally used in systems with PLC control of processes.

Version for Emptying Control
High & Low level switching
Internal Mount
PPS material
