Infineon NOR 512 MB SPI Flash Memory 56-Pin TSOP-56, S29GL512T10TFI020

RS 제품 번호:: 273-7542
제조사 부품 번호:: S29GL512T10TFI020
제조업체:: Infineon

Infineon NOR 512 MB SPI Flash Memory 56-Pin TSOP-56, S29GL512T10TFI020

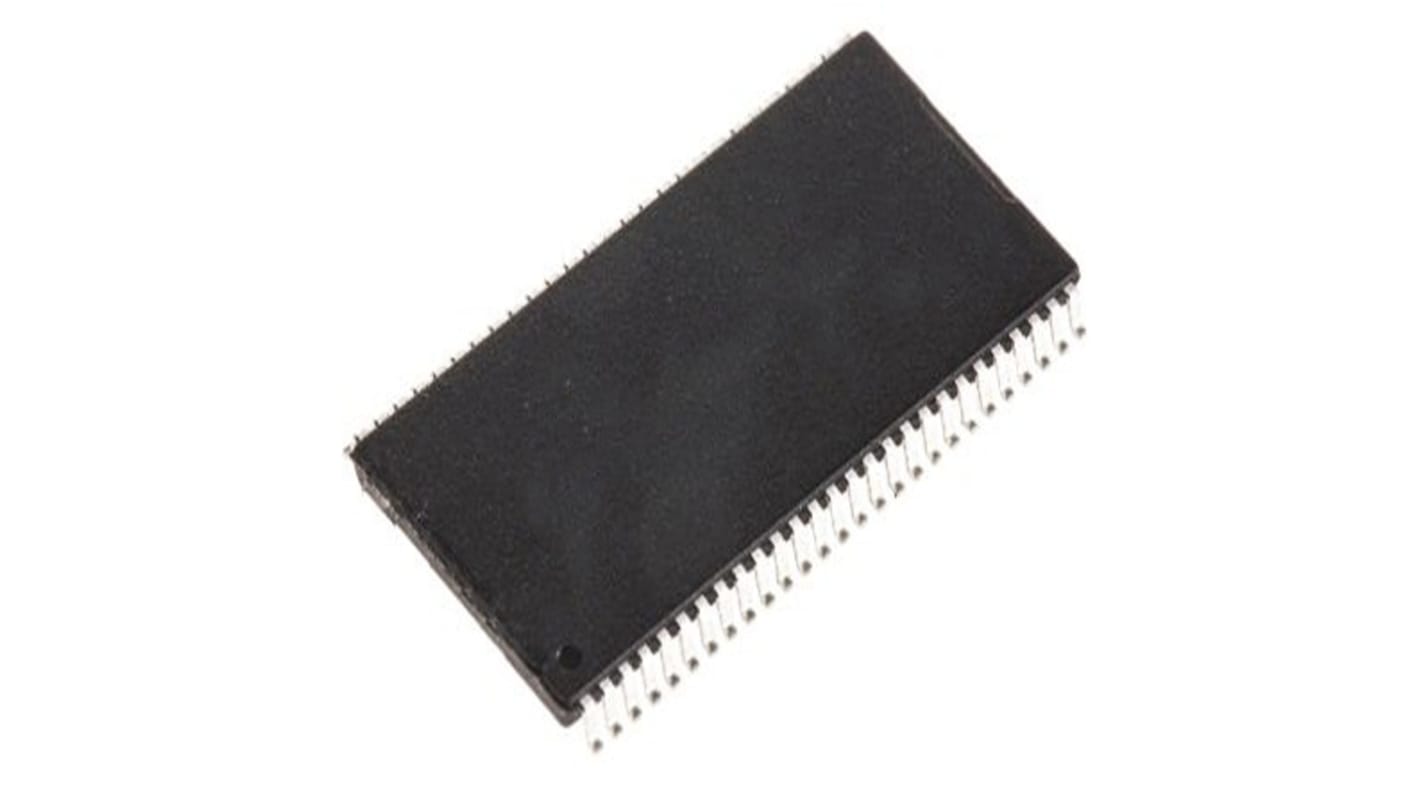

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

대량 구매 할인 기용 가능

View bulk pricing options

Subtotal (1 tray of 91 units)*

₩1,678,586.00

364 개 단위 배송 준비 완료

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당	Per Tray*
91 - 91	₩18,446.00	₩1,678,514.00
182 +	₩18,358.00	₩1,670,632.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 273-7542
제조사 부품 번호:: S29GL512T10TFI020
제조업체:: Infineon

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Infineon
	Product Type	Flash Memory
	Memory Size	512MB
	Interface Type	SPI
	Package Type	TSOP-56
	Pin Count	56
	Maximum Clock Frequency	133MHz
	Cell Type	NOR
	Maximum Supply Voltage	3.6V
	Minimum Supply Voltage	2.7V
	Timing Type	Asynchronous
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	+85°C
	Standards/Approvals	RoHS
	Maximum Random Access Time	120ns
	Number of Words	256
	Series	S29GL01GT/512T
	Automotive Standard	AEC-Q100 Grade 2 & 3
	Number of Bits per Word	16

	모두 선택
	브랜드 Infineon
	Product Type Flash Memory
	Memory Size 512MB
	Interface Type SPI
	Package Type TSOP-56
	Pin Count 56
	Maximum Clock Frequency 133MHz
	Cell Type NOR
	Maximum Supply Voltage 3.6V
	Minimum Supply Voltage 2.7V
	Timing Type Asynchronous
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature +85°C
	Standards/Approvals RoHS
	Maximum Random Access Time 120ns
	Number of Words 256
	Series S29GL01GT/512T
	Automotive Standard AEC-Q100 Grade 2 & 3
	Number of Bits per Word 16

Datasheet - S29GL512T10TFI020

Infineon S29GL01GT/512T Series Flash Memory, 512MB Memory Size, 16-bit Word Width - S29GL512T10TFI020

This flash memory is a non-volatile NOR device designed for embedded storage in demanding environments. It operates across a wide industrial temperature range and connects via a serial peripheral Interface suitable for systems requiring parallel 16-bit data organisation and asynchronous timing. The device is supplied in a 56-pin TSOP package intended for board-level integration.

Features and Benefits:

• 2.7 to 3.6V supply range provides flexible power options
• +85°C maximum operating temperature allows high-temperature operation
• 120ns random access supports fast read responsiveness
• 133MHz maximum clock enables high-speed serial transfers
• RoHS compliance simplifies regulatory adherence

Applications

• Suitable for flash memory for automotive electronics in control units
• Ideal for systems requiring 56-pin flash memory SPI Interface
• Used with industrial controllers needing 512MB NOR flash memory TSOP-56 SPI
• Can be used for designs demanding Automotive AEC-Q100 Grade 2 flash
• Used for storage with 256-word 16-bit flash storage mapping

What pin-count and package type does it use?

It is supplied in a 56-pin TSOP-56 package for Compact board mounting.

Which voltage range must the power rail provide?

The device requires a supply between 2.7V and 3.6V for normal operation.

How does its timing classification affect integration?

Asynchronous NOR flash timing allows flexible clocking without fixed synchronous cycles.

What cell architecture underpins data retention and read performance?

A NOR cell topology is used to support random-access read operations.

Is this suitable for automotive-grade deployment?

It meets Automotive AEC-Q100 Grade 2 & 3 requirements for relevant applications.
