Infineon NOR 512 MB SPI Flash Memory 56-Pin TSOP, S29GL512S10TFI010

RS 제품 번호:: 273-7540
제조사 부품 번호:: S29GL512S10TFI010
제조업체:: Infineon

Infineon NOR 512 MB SPI Flash Memory 56-Pin TSOP, S29GL512S10TFI010

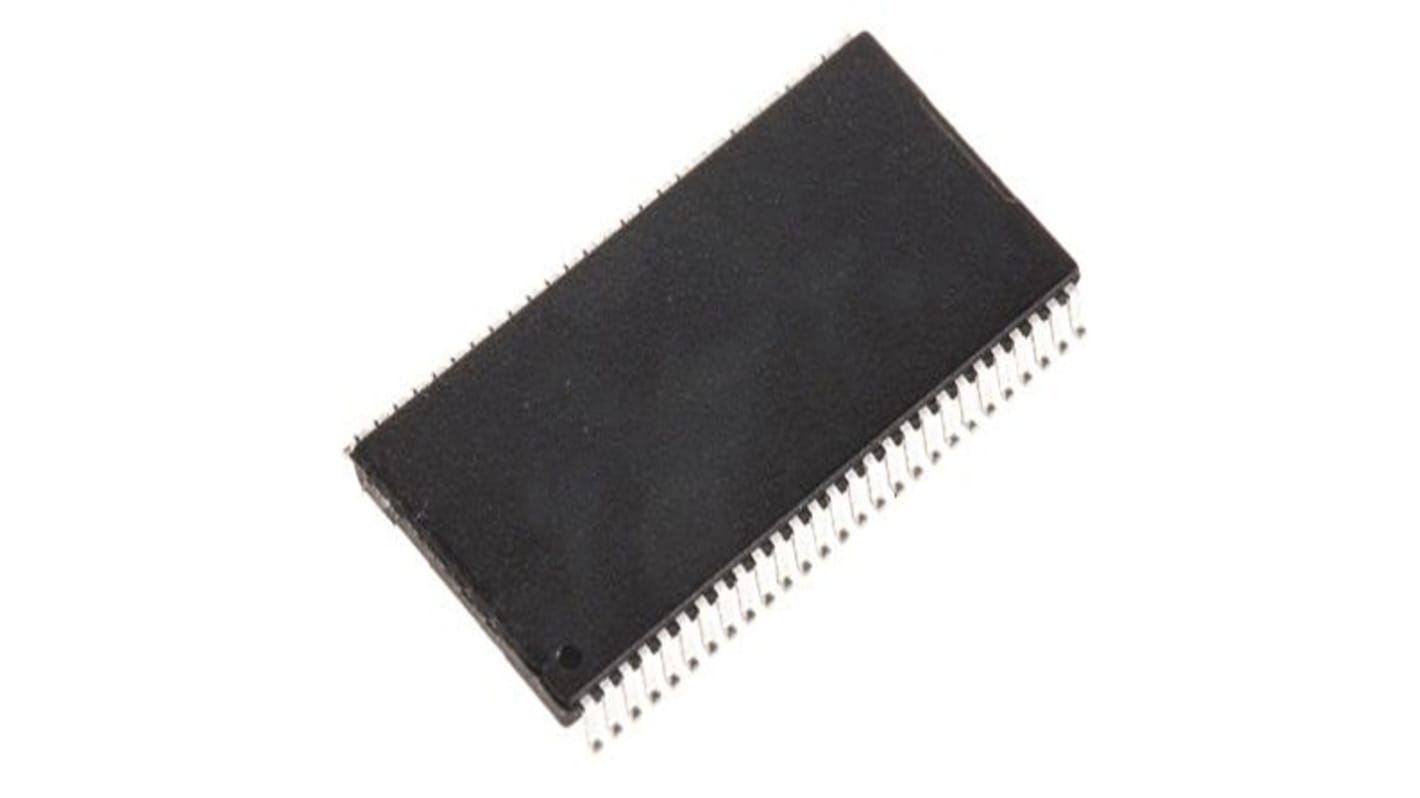

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

대량 구매 할인 기용 가능

View bulk pricing options

Subtotal (1 tray of 91 units)*

₩2,380,560.00

일시적 품절

2027년 1월 29일 부터 배송

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당	Per Tray*
91 - 91	₩26,160.00	₩2,380,506.00
182 +	₩25,374.00	₩2,309,106.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 273-7540
제조사 부품 번호:: S29GL512S10TFI010
제조업체:: Infineon

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Infineon
	Memory Size	512MB
	Product Type	Flash Memory
	Interface Type	SPI
	Package Type	TSOP
	Pin Count	56
	Maximum Clock Frequency	133MHz
	Cell Type	NOR
	Minimum Supply Voltage	2.7V
	Maximum Supply Voltage	3.6V
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	+85°C
	Standards/Approvals	AEC-Q100
	Automotive Standard	No
	Number of Bits per Word	16
	Maximum Random Access Time	90ns
	Series	S29GL-S
	Supply Current	100mA

	모두 선택
	브랜드 Infineon
	Memory Size 512MB
	Product Type Flash Memory
	Interface Type SPI
	Package Type TSOP
	Pin Count 56
	Maximum Clock Frequency 133MHz
	Cell Type NOR
	Minimum Supply Voltage 2.7V
	Maximum Supply Voltage 3.6V
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature +85°C
	Standards/Approvals AEC-Q100
	Automotive Standard No
	Number of Bits per Word 16
	Maximum Random Access Time 90ns
	Series S29GL-S
	Supply Current 100mA

Datasheet - S29GL512S10TFI010

Infineon S29GL-S Series Flash Memory, 512MB Memory Size, 16-bit Word Width - S29GL512S10TFI010

This flash memory provides non-volatile code and data storage for embedded systems operating across a wide temperature range. It uses NOR architecture with an SPI Interface and is supplied in a 56-pin TSOP package. The device is suitable for applications requiring a balance of density and access performance while operating from low voltages.

Features and Benefits:

• 133MHz clock frequency delivers Faster read throughput
• 90ns random access time improves execution-in-place responsiveness
• 2.7V to 3.6V supply range enables flexible power designs
• 100mA supply current supports predictable power budgeting
• -40°C to +85°C rating supports extended temperature operation

Applications

• Suitable for industrial control firmware storage
• Ideal for in-vehicle infotainment code retention
• Used with microcontrollers requiring a 16-bit data bus
• Can be used for boot code in automotive-adjacent systems
• Used for high-density firmware image storage

What Interface does it use for system connectivity?

It communicates via an SPI Interface implemented over a 56-pin TSOP connection.

What bus width does the device present to the host?

It presents a 16-bit word organisation for aligned data transfers.

What are the usable supply voltage limits during operation?

The operating voltage spans from 2.7V up to 3.6V.

How does temperature affect deployment choices?

The device is rated for operation between -40°C and +85°C, permitting use in extended-temperature environments.

What is the memory capacity available for code and data?

The device provides 512MB of non-volatile storage suitable for large firmware images.
