Infineon MIRRORBIT 64 MB SPI Flash Memory 48-Pin TSOP-56

RS Stock No.:: 273-7531
Mfr. Part No.:: S29GL064S70TFI070
Brand:: Infineon

Infineon MIRRORBIT 64 MB SPI Flash Memory 48-Pin TSOP-56

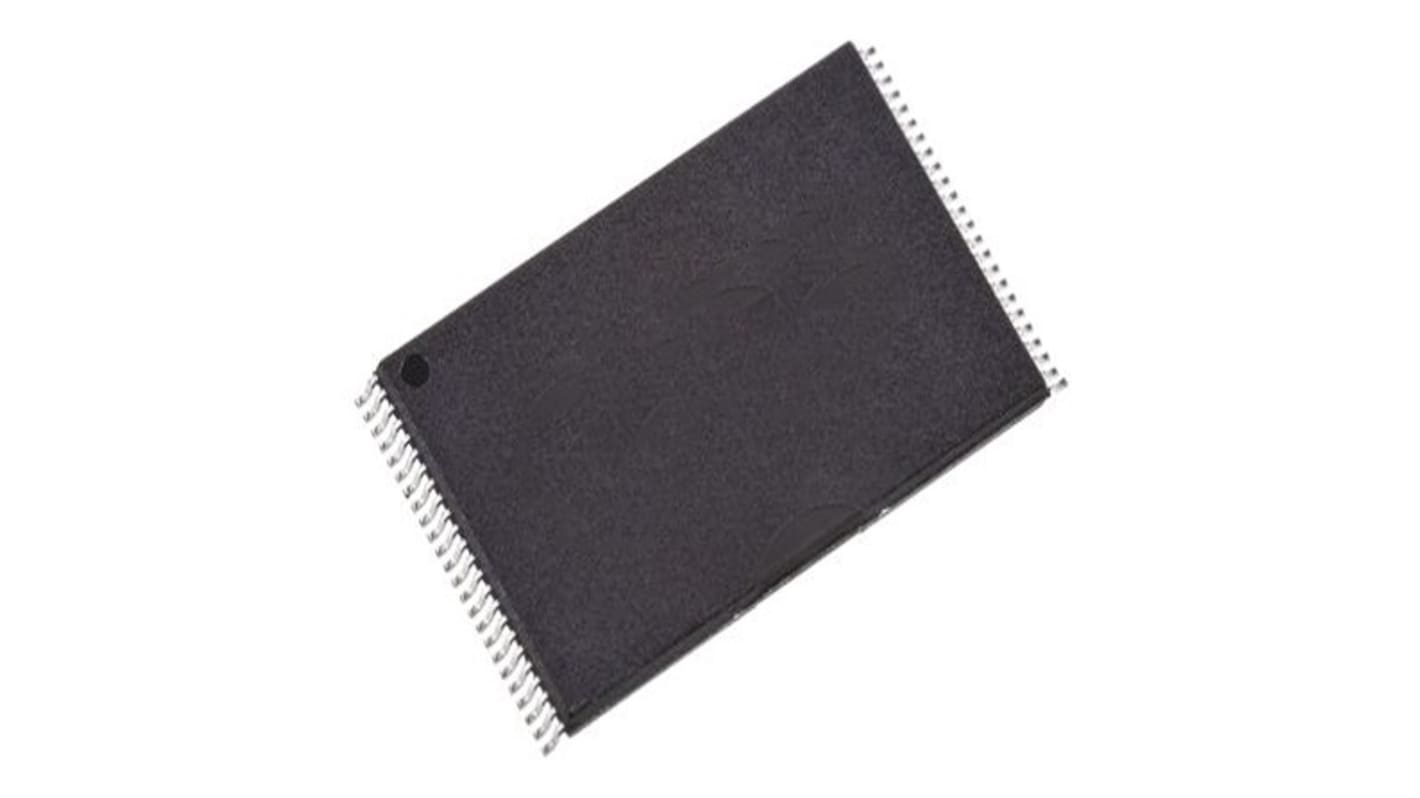

Image representative of range

Bulk discount available

Subtotal (1 unit)*

₩6,222.80

재고있음

960 개 단위 배송 준비 완료

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

Units	Per unit
1 - 9	₩6,222.80
10 - 24	₩4,850.40
25 - 49	₩4,756.40
50 - 99	₩4,662.40
100 +	₩4,568.40

*price indicative

RS Stock No.:: 273-7531
Mfr. Part No.:: S29GL064S70TFI070
Brand:: Infineon

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	브랜드	Infineon
	Product Type	Flash Memory
	Memory Size	64MB
	Interface Type	SPI
	Package Type	TSOP-56
	Pin Count	48
	Maximum Clock Frequency	33MHz
	Cell Type	MIRRORBIT
	Minimum Supply Voltage	2.7V
	Maximum Supply Voltage	3.6V
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	105°C
	Standards/Approvals	JEDEC
	Height	1.4mm
	Automotive Standard	AEC-Q100 Grade 2 & 3
	Number of Bits per Word	16
	Supply Current	50mA
	Maximum Random Access Time	70ns
	Number of Words	4M
	Series	S29GL064S

	Select all
	브랜드 Infineon
	Product Type Flash Memory
	Memory Size 64MB
	Interface Type SPI
	Package Type TSOP-56
	Pin Count 48
	Maximum Clock Frequency 33MHz
	Cell Type MIRRORBIT
	Minimum Supply Voltage 2.7V
	Maximum Supply Voltage 3.6V
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 105°C
	Standards/Approvals JEDEC
	Height 1.4mm
	Automotive Standard AEC-Q100 Grade 2 & 3
	Number of Bits per Word 16
	Supply Current 50mA
	Maximum Random Access Time 70ns
	Number of Words 4M
	Series S29GL064S

Datasheet - S29GL064S70TFI070

The Infineon Flash Memory offer high densities coupled with the flexibility and fast performance required by a variety of mobile or embedded applications. Provides an ideal storage solution for systems with limited space, signal connections and power. These memories offer flexibility and performance well beyond ordinary serial flash devices. They are ideal for code shadowing to RAM, executing code directly and storing re programmable data.

Double data rate option

Quad peripheral interface option

Minimum 20 year data retention

Serial peripheral interface with multi IO

Minimum 100000 program erase cycles

Clock polarity and phase modes 0 and 3

Infineon MIRRORBIT 64 MB SPI Flash Memory 48-Pin TSOP-56
