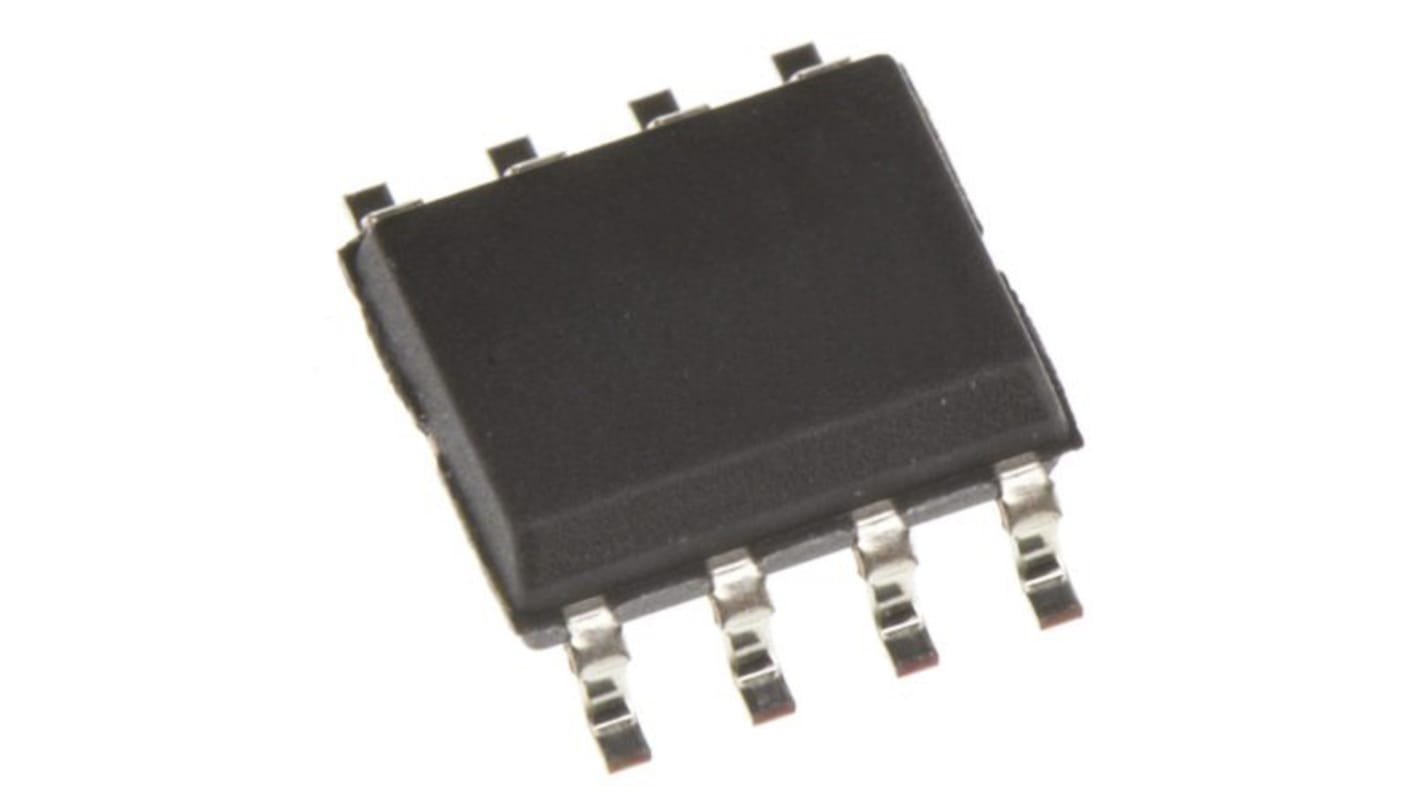

Winbond NOR 1 MB SPI Flash Memory 8-Pin SOIC

Name: Winbond NOR 1 MB SPI Flash Memory 8-Pin SOIC
Brand: Winbond
SKU: 188-2545
Price: 547.08 KRW
Availability: Discontinued

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

현재 비가용

RS는 이 제품을 더 이상 판매하지 않습니다.

사양

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Winbond
	Product Type	Flash Memory
	Memory Size	1MB
	Interface Type	SPI
	Package Type	SOIC
	Pin Count	8
	Organisation	128K x 8 bit
	Mount Type	Surface
	Maximum Clock Frequency	104MHz
	Cell Type	NOR
	Maximum Supply Voltage	3.6V
	Minimum Supply Voltage	2.3V
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	85°C
	Standards/Approvals	No
	Width	4 mm
	Height	1.5mm
	Length	5mm
	Number of Bits per Word	8
	Supply Current	15mA
	Maximum Random Access Time	8ns
	Series	W25X10CL
	Number of Words	128k
	Automotive Standard	No

	모두 선택
	브랜드 Winbond
	Product Type Flash Memory
	Memory Size 1MB
	Interface Type SPI
	Package Type SOIC
	Pin Count 8
	Organisation 128K x 8 bit
	Mount Type Surface
	Maximum Clock Frequency 104MHz
	Cell Type NOR
	Maximum Supply Voltage 3.6V
	Minimum Supply Voltage 2.3V
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 85°C
	Standards/Approvals No
	Width 4 mm
	Height 1.5mm
	Length 5mm
	Number of Bits per Word 8
	Supply Current 15mA
	Maximum Random Access Time 8ns
	Series W25X10CL
	Number of Words 128k
	Automotive Standard No

Density 1Mbit Voltage 2.3 - 3.6V Speed 104MHZ Package SOIC8 150mil Package USON8 2x3mm.

Single/Dual SPI

UID

2.3V to 3.6V Vcc Range, Space Efficient Packaging

Flexible Architecture with 4KB Sectors

1mA Active Read Current, <1mA Power Down Current
