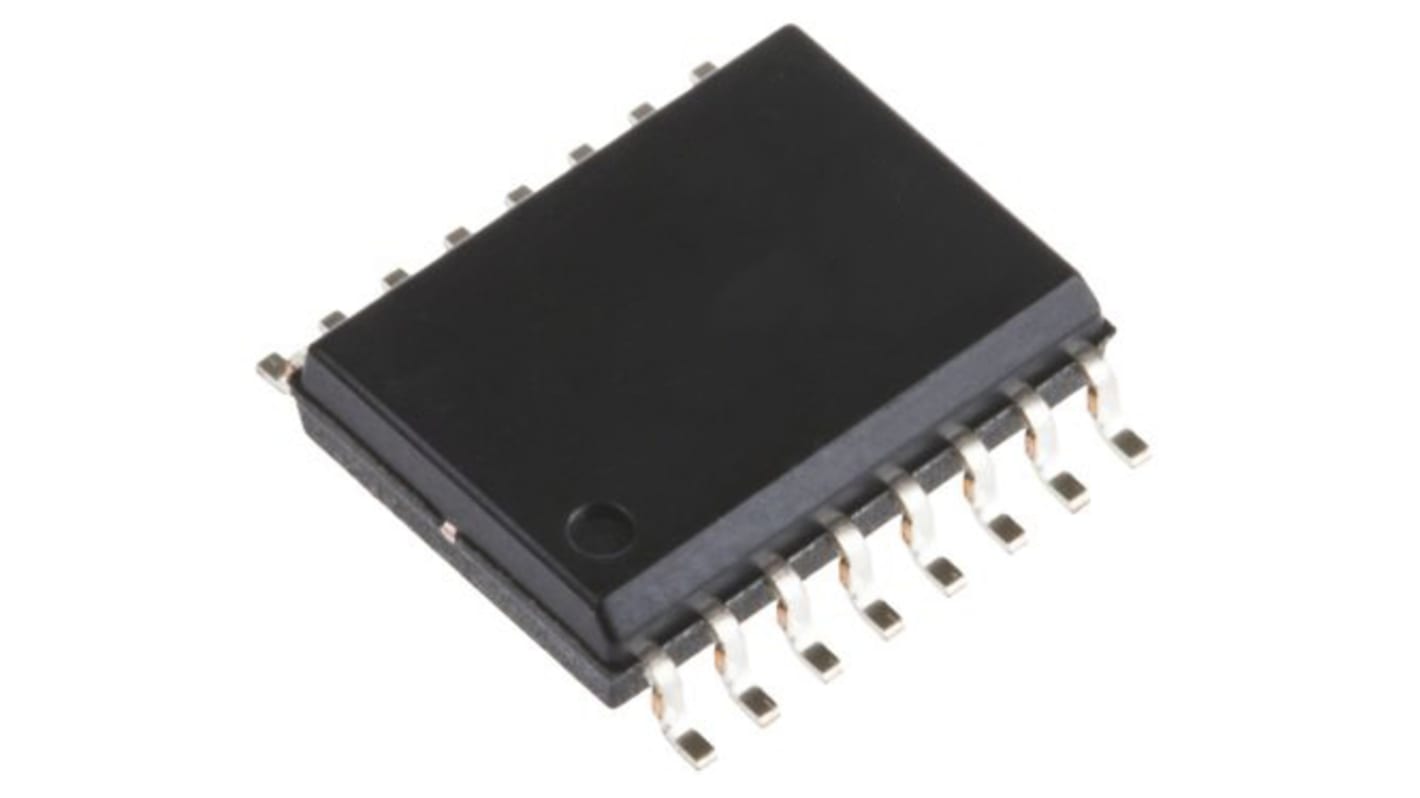

Winbond NOR 256 MB Quad-SPI Flash Memory 16-Pin SOIC
- RS 제품 번호:
- 188-2526
- 제조사 부품 번호:
- W25Q256JVFIM
- 제조업체:
- Winbond
본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
현재 비가용
RS는 이 제품을 더 이상 판매하지 않습니다.
- RS 제품 번호:
- 188-2526
- 제조사 부품 번호:
- W25Q256JVFIM
- 제조업체:
- Winbond
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Winbond | |
| Product Type | Flash Memory | |
| Memory Size | 256MB | |
| Interface Type | Quad-SPI | |
| Package Type | SOIC | |
| Pin Count | 16 | |
| Organisation | 32M x 8 bit | |
| Mount Type | Surface | |
| Maximum Clock Frequency | 133MHz | |
| Cell Type | NOR | |
| Minimum Supply Voltage | 2.7V | |
| Maximum Supply Voltage | 3.6V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Height | 2.34mm | |
| Width | 7.5mm | |
| Length | 10.49mm | |
| Standards/Approvals | No | |
| Number of Words | 32M | |
| Supply Current | 25mA | |
| Maximum Random Access Time | 6ns | |
| Number of Bits per Word | 8 | |
| Series | W25Q256JV | |
| Automotive Standard | No | |
| 모두 선택 | ||
|---|---|---|
브랜드 Winbond | ||
Product Type Flash Memory | ||
Memory Size 256MB | ||
Interface Type Quad-SPI | ||
Package Type SOIC | ||
Pin Count 16 | ||
Organisation 32M x 8 bit | ||
Mount Type Surface | ||
Maximum Clock Frequency 133MHz | ||
Cell Type NOR | ||
Minimum Supply Voltage 2.7V | ||
Maximum Supply Voltage 3.6V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Height 2.34mm | ||
Width 7.5mm | ||
Length 10.49mm | ||
Standards/Approvals No | ||
Number of Words 32M | ||
Supply Current 25mA | ||
Maximum Random Access Time 6ns | ||
Number of Bits per Word 8 | ||
Series W25Q256JV | ||
Automotive Standard No | ||
256M-bit Serial Flash Memory with uniform 4KB sectors and Dual/Quad SPI.
3 or 4-Byte Addressing Modes
4 I/O Fixed
UID & OTP Feature
Individual Block/Sector Write Protection
Volatile & Non-Volatile Status Registers
