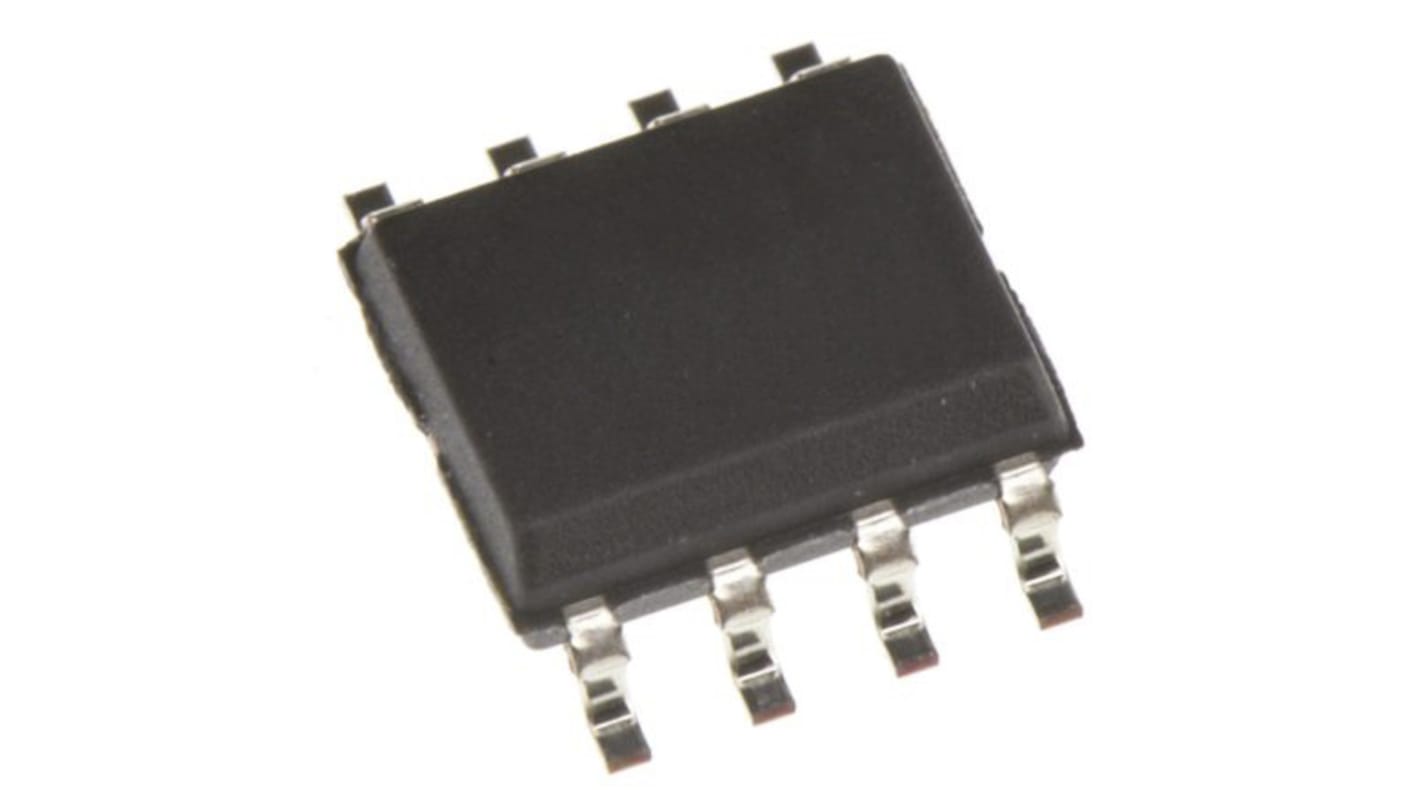

Winbond NOR 4 MB SPI Flash Memory 8-Pin SOIC, W25X40CLSNIG/TUBE

RS 제품 번호:: 171-2194
제조사 부품 번호:: W25X40CLSNIG/TUBE
제조업체:: Winbond

Winbond NOR 4 MB SPI Flash Memory 8-Pin SOIC, W25X40CLSNIG/TUBE

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

대량 구매 할인 기용 가능

Subtotal (1 tube of 100 units)*

₩81,780.00

재고있음

5,700 개 단위 배송 준비 완료

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당	Per Tube*
100 - 100	₩817.80	₩81,704.80
200 - 300	₩797.12	₩79,655.60
400 +	₩783.96	₩78,433.60

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 171-2194
제조사 부품 번호:: W25X40CLSNIG/TUBE
제조업체:: Winbond

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Winbond
	Product Type	Flash Memory
	Memory Size	4MB
	Interface Type	SPI
	Package Type	SOIC
	Pin Count	8
	Organisation	512 k x 8 Bit
	Mount Type	Surface
	Maximum Clock Frequency	104MHz
	Cell Type	NOR
	Maximum Supply Voltage	3.6V
	Minimum Supply Voltage	2.3V
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	85°C
	Length	5mm
	Width	4 mm
	Height	1.5mm
	Standards/Approvals	No
	Number of Bits per Word	8
	Number of Words	512K
	Supply Current	15mA
	Maximum Random Access Time	8ns
	Series	W25X40CL
	Automotive Standard	No

	모두 선택
	브랜드 Winbond
	Product Type Flash Memory
	Memory Size 4MB
	Interface Type SPI
	Package Type SOIC
	Pin Count 8
	Organisation 512 k x 8 Bit
	Mount Type Surface
	Maximum Clock Frequency 104MHz
	Cell Type NOR
	Maximum Supply Voltage 3.6V
	Minimum Supply Voltage 2.3V
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 85°C
	Length 5mm
	Width 4 mm
	Height 1.5mm
	Standards/Approvals No
	Number of Bits per Word 8
	Number of Words 512K
	Supply Current 15mA
	Maximum Random Access Time 8ns
	Series W25X40CL
	Automotive Standard No

Datasheet

4M-bit 2.5V Serial Flash Memory with uniform 4KB sectors and Dual SPI

Single and Dual Serial Peripheral Interface

Uniform 4KB erasable sectors & 32KB/64KB erasable blocks

2,048 pages (256 bytes), page program in 0.4mS (typ.)

Fast Read (0Bh), Fast Read Dual Output (3Bh) and Fast Read Dual I/O (BBh) instructions

Clock operation up to 104MHz (208MHz equivalent with Fast Read Dual Output)

2.3 to 3.6V power supply

1mA active read current, 1μA power down current

-40° to +85°C operating range

Electronic ID in Single or Dual I/O mode

Read Unique ID (4Bh) instruction

Hardware and software write protection for top or bottom blocks

Volatile & Non-volatile Status Register Bits

Winbond NOR 4 MB SPI Flash Memory 8-Pin SOIC, W25X40CLSNIG/TUBE
