Infineon NOR 8 MB Parallel Flash Memory 48-Pin TSOP, S29AL008J70TFI023
- RS 제품 번호:
- 181-7536
- 제조사 부품 번호:
- S29AL008J70TFI023
- 제조업체:
- Infineon

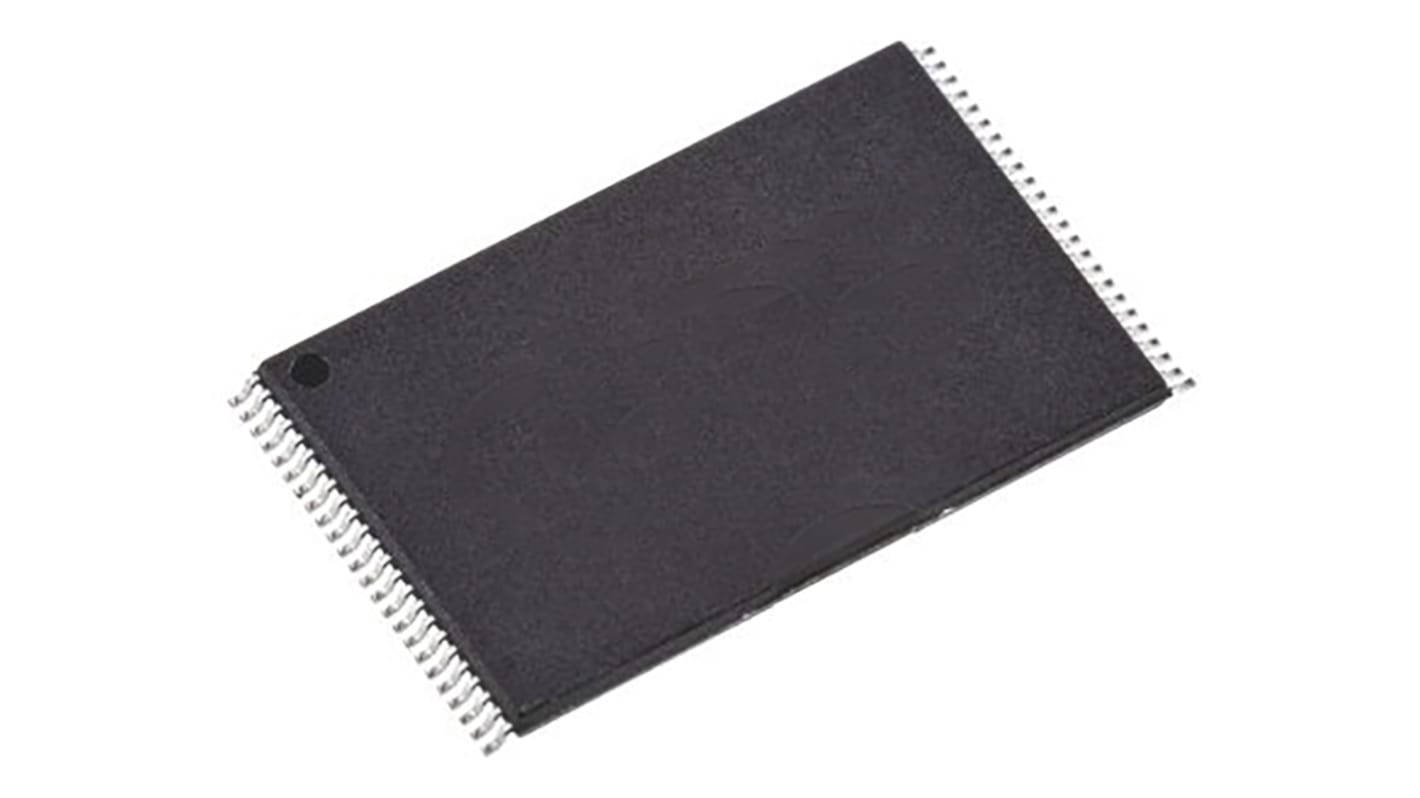

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
현재 비가용
RS는 이 제품을 더 이상 판매하지 않습니다.
- RS 제품 번호:
- 181-7536
- 제조사 부품 번호:
- S29AL008J70TFI023
- 제조업체:
- Infineon
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Infineon | |
| Memory Size | 8MB | |
| Product Type | Flash Memory | |
| Interface Type | Parallel | |
| Package Type | TSOP | |
| Pin Count | 48 | |
| Mount Type | Surface | |
| Cell Type | NOR | |
| Maximum Supply Voltage | 3.6V | |
| Minimum Supply Voltage | 2.7V | |
| Timing Type | Asynchronous | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Height | 1.05mm | |
| Length | 12mm | |
| Standards/Approvals | No | |
| Number of Bits per Word | 8 | |
| Number of Words | 1M | |
| Automotive Standard | AEC-Q100 | |
| Supply Current | 20mA | |
| Series | S29AL008J | |
| Maximum Random Access Time | 72ns | |
| 모두 선택 | ||
|---|---|---|
브랜드 Infineon | ||
Memory Size 8MB | ||
Product Type Flash Memory | ||
Interface Type Parallel | ||
Package Type TSOP | ||
Pin Count 48 | ||
Mount Type Surface | ||
Cell Type NOR | ||
Maximum Supply Voltage 3.6V | ||
Minimum Supply Voltage 2.7V | ||
Timing Type Asynchronous | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Height 1.05mm | ||
Length 12mm | ||
Standards/Approvals No | ||
Number of Bits per Word 8 | ||
Number of Words 1M | ||
Automotive Standard AEC-Q100 | ||
Supply Current 20mA | ||
Series S29AL008J | ||
Maximum Random Access Time 72ns | ||
The S29AL008J is a 8 Mbit, 3.0 Volt-only Flash memory organized as 1,048,576 bytes or 524,288 words. The device is offered in 48-ball Fine-pitch BGA (0.8 mm pitch), and 48-pin TSOP packages. The word-wide data (x16) appears on DQ15-DQ0, the byte- wide (x8) data appears on DQ7-DQ0. This device is designed to be programmed in-system with the standard system 3.0 volt VCC supply. A 12.0 V VPP or 5.0 VCC are not required for write or erase operations. The device can also be programmed in standard EPROM programmers.
