Alliance Memory NOR 512 MB Serial Serial Flash Memory 8-Pin WSON, AS25F3512MQ-7W2INTR
- RS 제품 번호:
- 338-531
- 제조사 부품 번호:
- AS25F3512MQ-7W2INTR
- 제조업체:
- Alliance Memory
Subtotal (1 reel of 3000 units)*
₩29,796,120.00
일시적 품절
- 2026년 6월 22일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 | 릴당* |
|---|---|---|
| 3000 + | ₩9,932.04 | ₩29,796,120.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 338-531
- 제조사 부품 번호:
- AS25F3512MQ-7W2INTR
- 제조업체:
- Alliance Memory
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Alliance Memory | |
| Memory Size | 512MB | |
| Product Type | Serial Flash Memory | |
| Interface Type | Serial | |
| Package Type | WSON | |
| Pin Count | 8 | |
| Maximum Clock Frequency | 133MHz | |
| Cell Type | NOR | |
| Minimum Supply Voltage | 2.7V | |
| Maximum Supply Voltage | 3.6V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | RoHS | |
| Height | 10.63mm | |
| Automotive Standard | No | |
| Series | NOR Flash | |
| Supply Current | 20mA | |
| 모두 선택 | ||
|---|---|---|
브랜드 Alliance Memory | ||
Memory Size 512MB | ||
Product Type Serial Flash Memory | ||
Interface Type Serial | ||
Package Type WSON | ||
Pin Count 8 | ||
Maximum Clock Frequency 133MHz | ||
Cell Type NOR | ||
Minimum Supply Voltage 2.7V | ||
Maximum Supply Voltage 3.6V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals RoHS | ||
Height 10.63mm | ||
Automotive Standard No | ||
Series NOR Flash | ||
Supply Current 20mA | ||
- COO (Country of Origin):
- TW

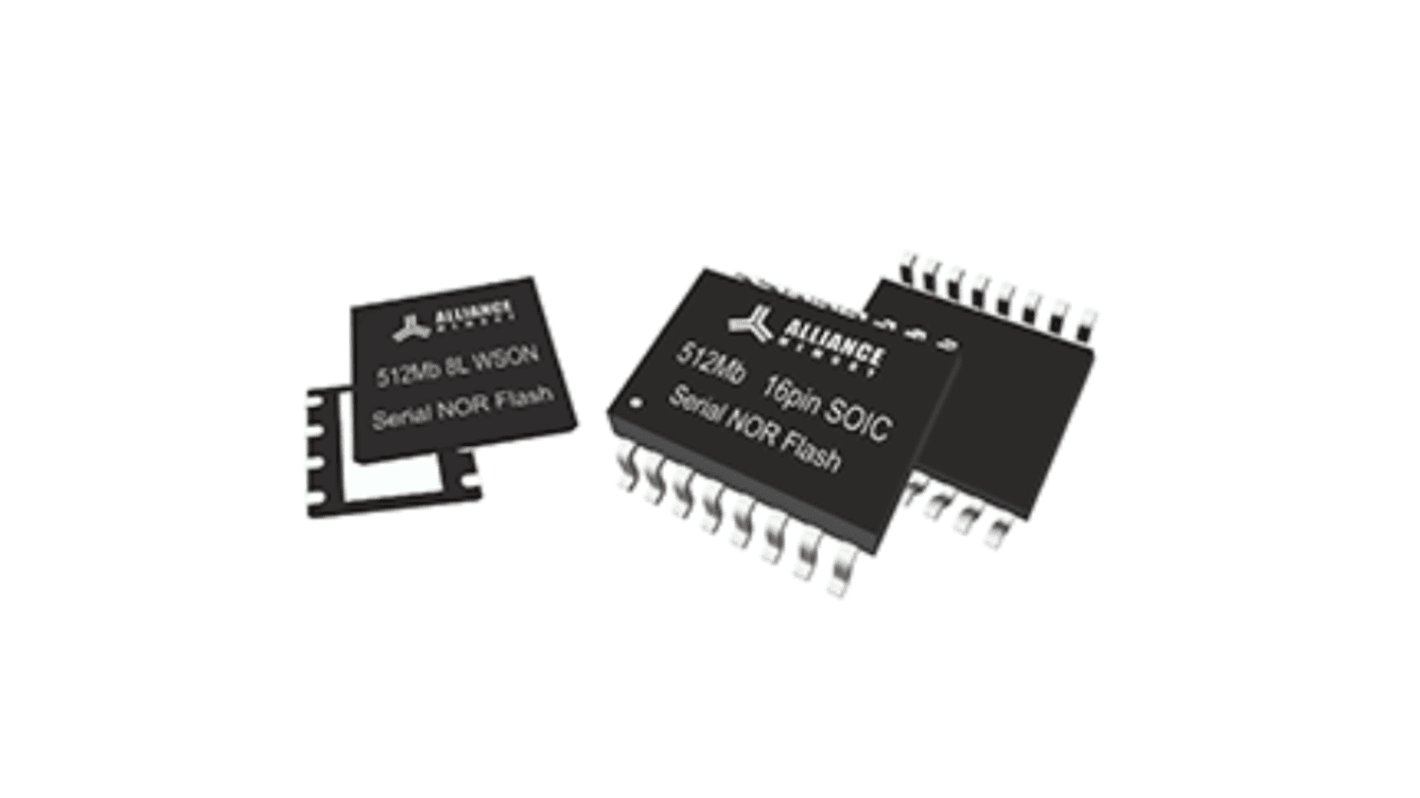

The Alliance Memory 512Mega bits serial interface NOR Flash memory devices designed for operating on a single power supply from 2.7 to 3.6V. These devices supports Serial Peripheral Interface, Dual or Quad IO SPI as well as Quad Peripheral Interface with SPI clock frequencies up to 133MHz, allowing equivalent clock rate of 266MHz for Dual I/O and 532MHz for Quad IO. Available in 16-pin SOIC (300mils) and 8L WSON 6x8mm packages, the devices provide reliable, long-term performance with High program or erase cycles and Long data retention.
Software and hardware write-protect
Power supply lock-down and OTP protection
Top or bottom complement array protection
64-bit unique ID for each device
Support serial flash discoverable parameters SFDP signature
Volatile and non-volatile status register bits
