Festo LFR Filter Regulator, 1/4 in G, Manual, 16 bar, 162703

모든 Filter Regulators 열람하기

Subtotal (1 unit)*

₩232,217.60

Add to Basket
수량 선택 또는 입력
재고있음
  • 8 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 +₩232,217.60

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
202-4327
제조사 부품 번호:
LFR-1/4-D-7-MINI
제조업체:
Festo
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Festo

Product Type

Filter Regulator

Port Size

1/4 in G

Maximum Flow Rate

1500L/min

Maximum Operating Pressure

16 bar

Series

LFR

Drain Type

Manual

Pressure Gauge Port Size

1/4 in

Maximum Operating Temperature

60°C

Standards/Approvals

RoHS

Pressure Setting Range

0.5 to 7 bar

Bowl Material

Polycarbonate

Model Number

162703

Pressure Gauge Port Thread Standard

G

COO (Country of Origin):
HU

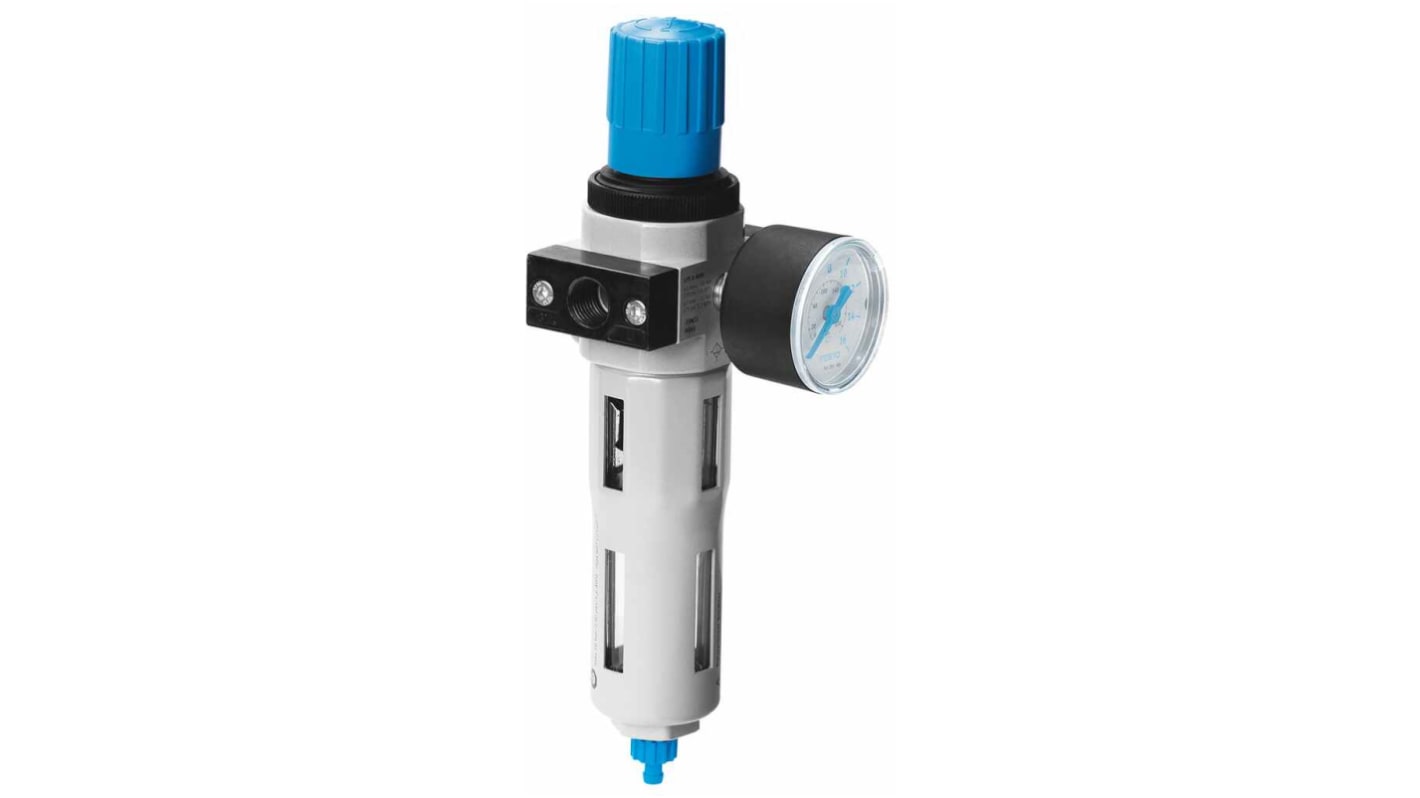

Festo Filter Regulator, G 1/4, 16 Bar - LFR Series - LFR-1/4-D-7-MINI


Save space in your pneumatic systems with this filter regulator from Festo. It's designed to make sure the input valves and equipment in your factory automation systems always receive ambient air. Good regulation characteristics with minimal hysteresis ensures this device is optimised for higher productivity. The unit comes with a pressure gauge, so it's easy to maintain and monitor. Plus, a manually-operated condensate drain allows for the efficient ejection of waste from the system. Its zinc die-cast design means you can be confident of long-lasting use.

• Two pressure-gauge mounting options for flexible installation

• Broad operating temperature range of -10°C to +60°C makes this suitable for use in demanding industrial settings

• Settings are secured by locking the rotary knob

• Filters particles of size right down to 40μm (micrometres)

• Wide pressure regulation range of 0.5 to 7 bar for sensitive systems

Application Information


• Factory automation systems

• Medical and dental equipment

• Aerosol lubrication systems

Is this unit corrosion-resistant?


This unit offers satisfactory protection for medium corrosion-stress environments. As it's built for indoor factory use, it can withstand direct contact with common industrial media such as coolants or lubricating agents.
