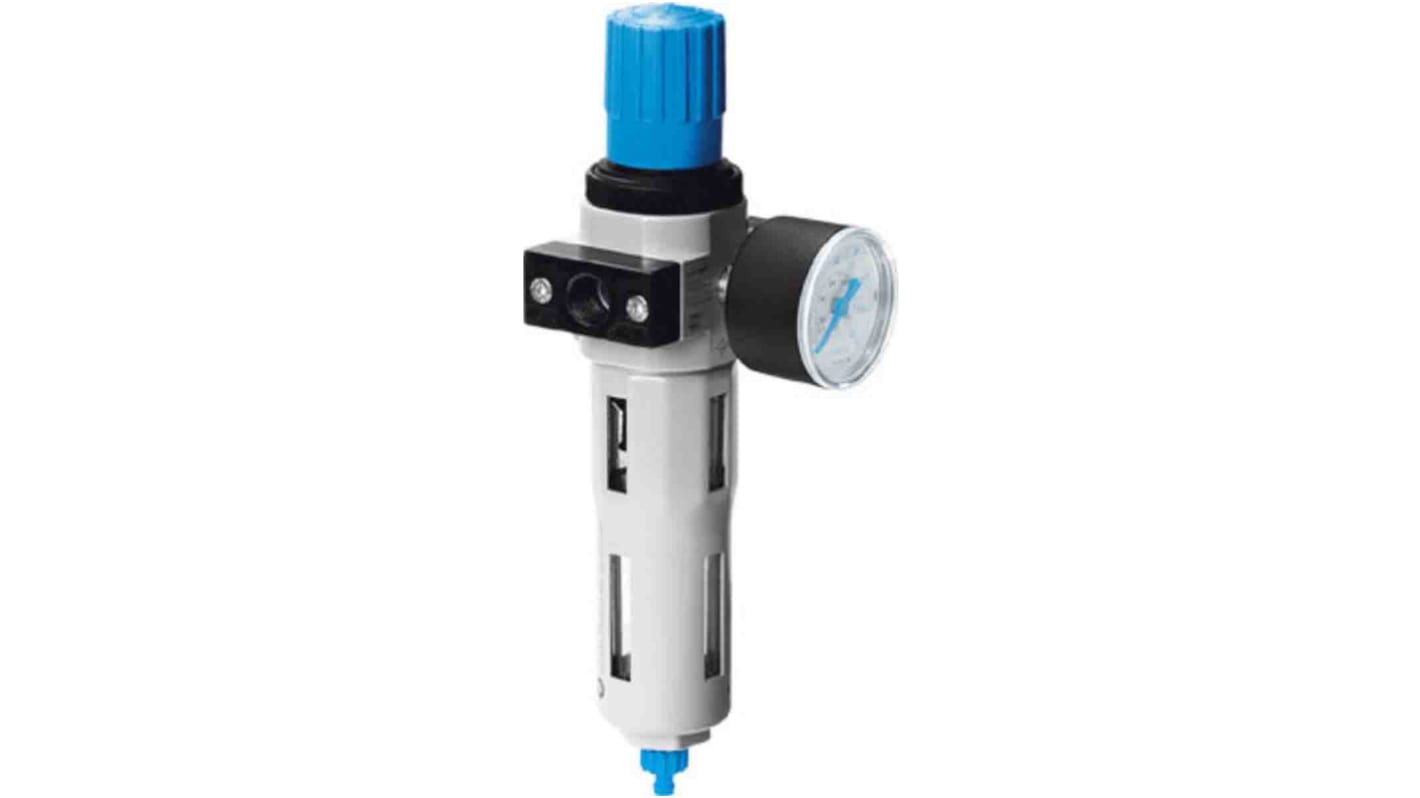

Festo LFR Filter Regulator, 40 μm, 3/4 in G, Manual, 16 bar, 162683

RS 제품 번호:: 202-9674
제조사 부품 번호:: LFR-3/4-D-MIDI
제조업체:: Festo

Festo LFR Filter Regulator, 40 μm, 3/4 in G, Manual, 16 bar, 162683

Subtotal (1 unit)*

₩307,183.50

22 개 단위 배송 준비 완료

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 +	₩307,183.50

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 202-9674
제조사 부품 번호:: LFR-3/4-D-MIDI
제조업체:: Festo

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Festo
	Port Size	3/4 in G
	Product Type	Filter Regulator
	Maximum Flow Rate	3400L/min
	Maximum Operating Pressure	16 bar
	Connection Thread Standard	G
	Series	LFR
	Drain Type	Manual
	Filtration Size	40μm
	Pressure Gauge Port Size	3/4 in
	Minimum Operating Temperature	-10°C
	Maximum Operating Temperature	60°C
	Standards/Approvals	RoHS, ISO 8573-1:2010
	Pressure Gauge Port Thread Standard	G
	Bowl Material	Polycarbonate
	Model Number	162683
	Pressure Setting Range	0.5 to 12 bar

	모두 선택
	브랜드 Festo
	Port Size 3/4 in G
	Product Type Filter Regulator
	Maximum Flow Rate 3400L/min
	Maximum Operating Pressure 16 bar
	Connection Thread Standard G
	Series LFR
	Drain Type Manual
	Filtration Size 40μm
	Pressure Gauge Port Size 3/4 in
	Minimum Operating Temperature -10°C
	Maximum Operating Temperature 60°C
	Standards/Approvals RoHS, ISO 8573-1:2010
	Pressure Gauge Port Thread Standard G
	Bowl Material Polycarbonate
	Model Number 162683
	Pressure Setting Range 0.5 to 12 bar

COO (Country of Origin):: HU

Festo LFR Series Filter Regulator, 3/4 inches Port size, 0.5 to 12 Bar Pressure Setting Range - LFR-3/4-D-MIDI, Numeric Part Number: 162683

This filter regulator controls and conditions compressed Air for industrial pneumatic systems, combining particulate removal with pressure regulation to support downstream components. It is designed for use where continuous high-flow Air delivery and adjustable pressure are required within standard industrial temperature ranges.

Features & Benefits

• 3400 L/min maximum flow supports high-demand pneumatic circuits
• 40 μm filtration reduces particulate ingress into equipment
• Manual drain enables controlled condensate removal during maintenance
• 0.5–12 bar adjustable range allows precise downstream pressure setting
• 16 bar maximum pressure rating suits robust supply conditions
• Polycarbonate bowl tolerates operating temperatures of -10 to 60 °C

Applications

• Suitable for automation lines requiring high-volume Airflow
• Ideal for pneumatic control panels in electrical assemblies
• Used with actuators and valves in mechanical systems
• Can be used for Air preparation in electronics manufacturing

What connection Interface does it use for system integration?

It connects via a G‑threaded port sized at 3/4 in to match common industrial piping and fittings.

How can a pressure indicator be fitted to monitor outputs?

A 3/4 in pressure gauge port with G‑threading accepts standard pressure instruments for local monitoring.

Are there standards relating to its Air quality performance?

It complies with ISO 8573‑1:2010 specifications for compressed Air quality categories.

What environmental approvals or restrictions apply to its materials?

The device meets RoHS directives regarding restricted hazardous substances.

How does the bowl material affect handling and inspection?

The transparent polycarbonate construction permits Visual condensate checks while remaining usable across the product’s specified temperature range.
