United Automation X10784 Series Fan Speed Controller for Use with Mains Driven Motors and Fans, 10 A Max 230 V ac

RS 제품 번호:: 847-4709
제조사 부품 번호:: FSC230/10
제조업체:: United Automation

United Automation X10784 Series Fan Speed Controller for Use with Mains Driven Motors and Fans, 10 A Max 230 V ac

대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩216,762.00

현재 액세스할 수 없는 재고 정보 - 나중에 다시 확인해 주세요.

수량	한팩당
1 - 2	₩216,762.00
3 +	₩201,591.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 847-4709
제조사 부품 번호:: FSC230/10
제조업체:: United Automation

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	United Automation
	Product Type	Fan Speed Controller
	For Use With	Mains Driven Motors and Fans
	Maximum Current	10A
	Output Configuration	Phase Control
	Frequency	50Hz
	Maximum Supply Voltage	230V ac
	Standards/Approvals	RoHS
	Series	X10784

	모두 선택
	브랜드 United Automation
	Product Type Fan Speed Controller
	For Use With Mains Driven Motors and Fans
	Maximum Current 10A
	Output Configuration Phase Control
	Frequency 50Hz
	Maximum Supply Voltage 230V ac
	Standards/Approvals RoHS
	Series X10784

Datasheet - X10784

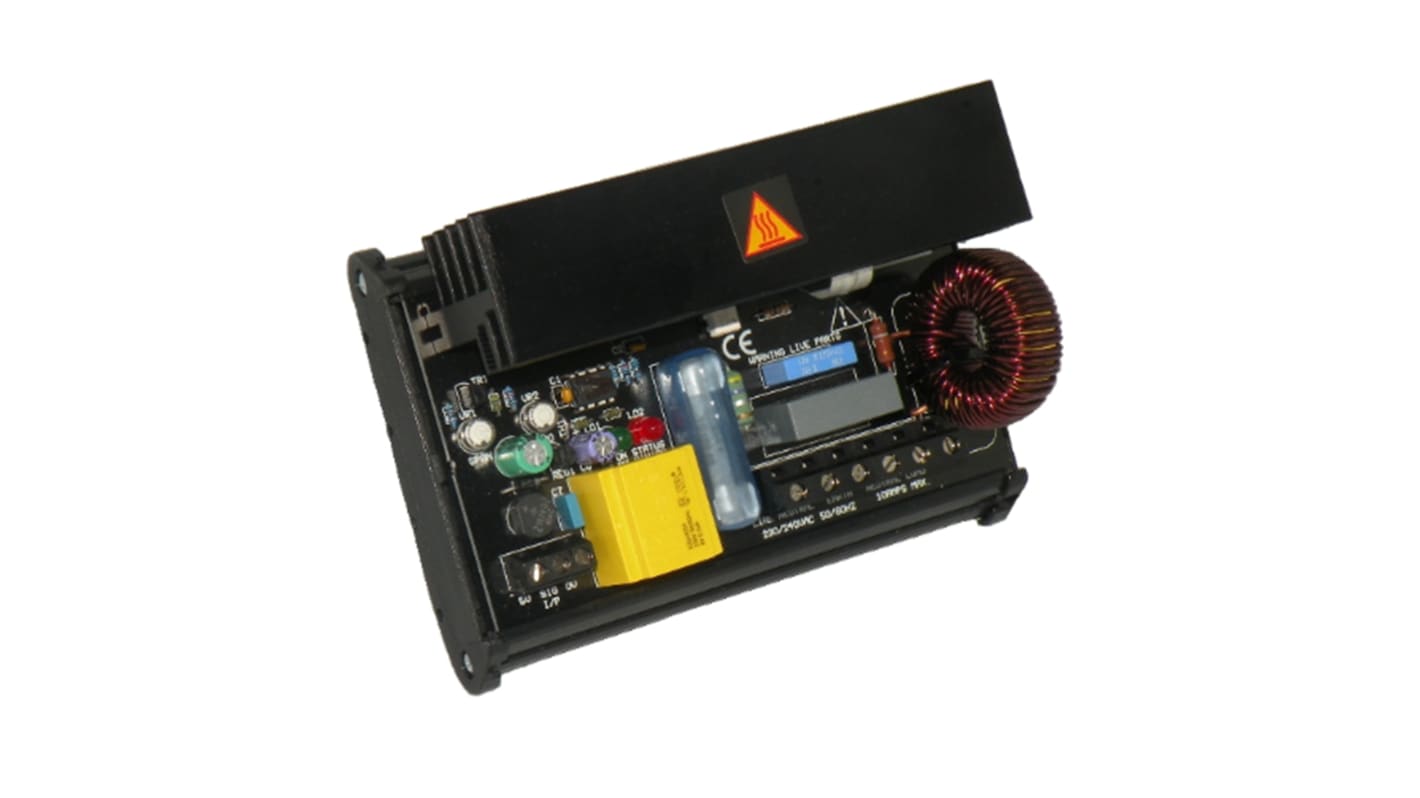

10A Fan and Pump Speed Controller, FSC230/10

The FSC230/10 Variable Fan Speed Controller is designed for mains 230Vac, 10A single-phase driven inductive loads, giving fully adjustable voltage outputs from zero to maximum. This allows to set a minimum output voltage level in order to prevent a motor from being driven to slowly.

Standard Din Rail mount

Phase angle control

Integral Protection

Built-in snubber network

Input signal or Potentiometer (0-5/0-10VDC 4-20mA)

Output power span and zero (Minimum Speed Set)

Power and status LEDs

Up to 10A Load

Built-in Heatsink

United Automation X10784 Series Fan Speed Controller for Use with Mains Driven Motors and Fans, 10 A Max 230 V ac

대량 구매 가격 책정 옵션

10A Fan and Pump Speed Controller, FSC230/10
