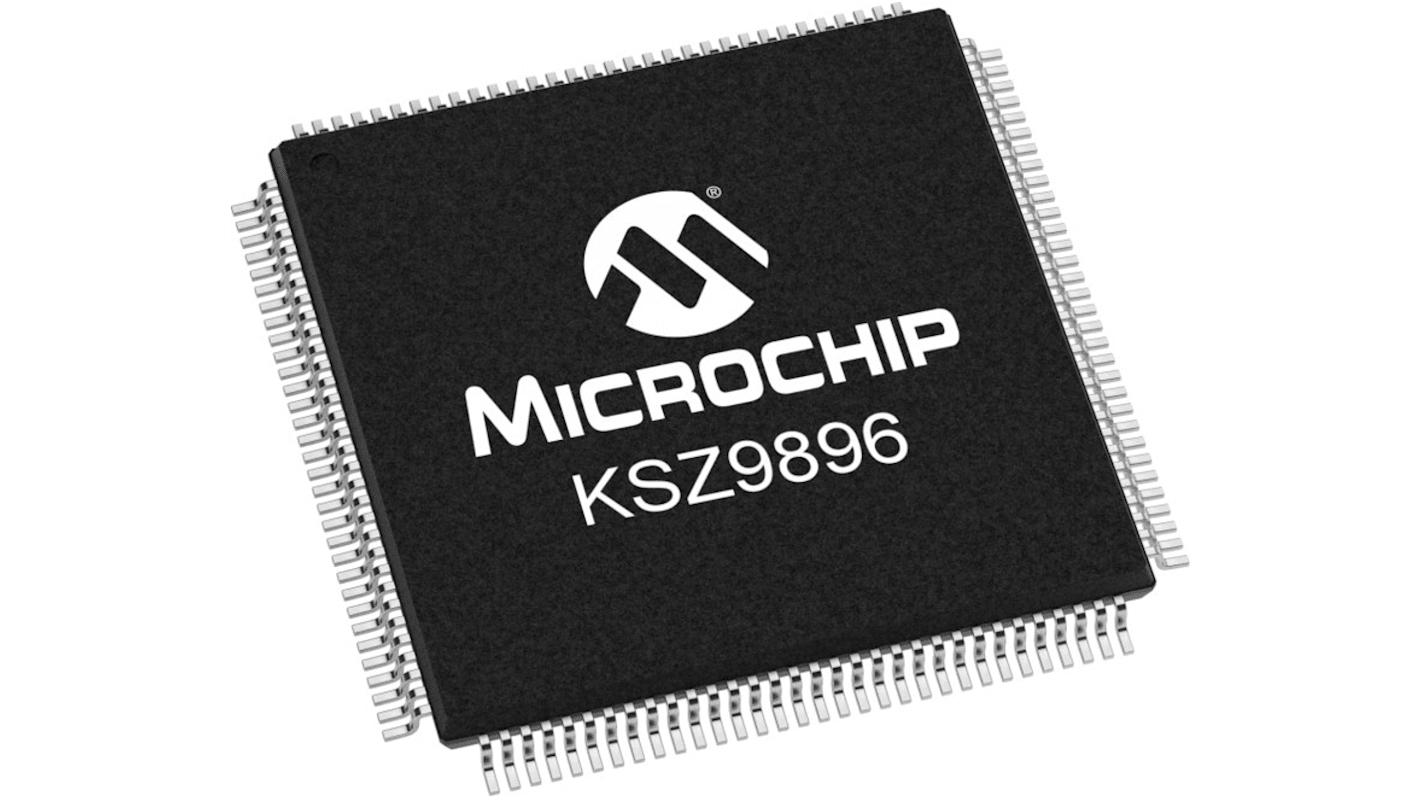

Microchip KSZ9896CTXI, Ethernet Switch IC, 3.13 V 100 Mbps RGMII, RMII, MII, 128-Pin 3.46 V TQFP

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

모든 Ethernet Interface Ics 열람하기
대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩23,330.80

Add to Basket
수량 선택 또는 입력
재고있음
  • 41 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 - 9₩23,330.80
10 - 24₩22,860.80
25 - 49₩22,409.60
50 - 89₩21,958.40
90 +₩21,526.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
239-5584
제조사 부품 번호:
KSZ9896CTXI
제조업체:
Microchip
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Microchip

Product Type

Ethernet Switch IC

Maximum Data Rate

100Mbps

Communication Mode

Full Duplex/Half Duplex

Number of Transceivers

5

Interface Type

RGMII, RMII, MII

Package Type

TQFP

Maximum Supply Voltage

3.46V

Pin Count

128

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

85°C

Standards/Approvals

RoHS

Minimum Supply Voltage

3.13V

Automotive Standard

No

The Microchip KSZ9896C series of highly-integrated, IEEE 802.3 compliant networking device incorporate a layer-2 managed Gigabit Ethernet switch, five 10BASE-Te/100BASE-TX/1000BASE-T physical layer transceivers (PHYs) and associated MAC units, and one configurable GMII/RGMII/MII/RMII MAC port for direct connection to a host processor/controller, another Ethernet switch, or an Ethernet PHY transceiver. The flexible digital I/O voltage on the KSZ9896CTXI allows the MAC port to interface directly with a 1.8/2.5/3.3V host processor/controller/FPGA. Additionally, a robust assortment of power-management features including Wake-on-LAN (WoL) for low power standby operation, have been designed to satisfy energy-efficient system requirements.

Requires 2 to 3 power supply for 1.8 V, 2.5 V, or 3.3 V

Non-blocking wire-speed Ethernet switch fabric supports 1 Gbps on RGMII

Full-featured forwarding and filtering control, including port-based Access Control List (ACL) filtering

Full VLAN and QoS support

Traffic prioritization with per-port ingress/egress queues and by traffic classification
