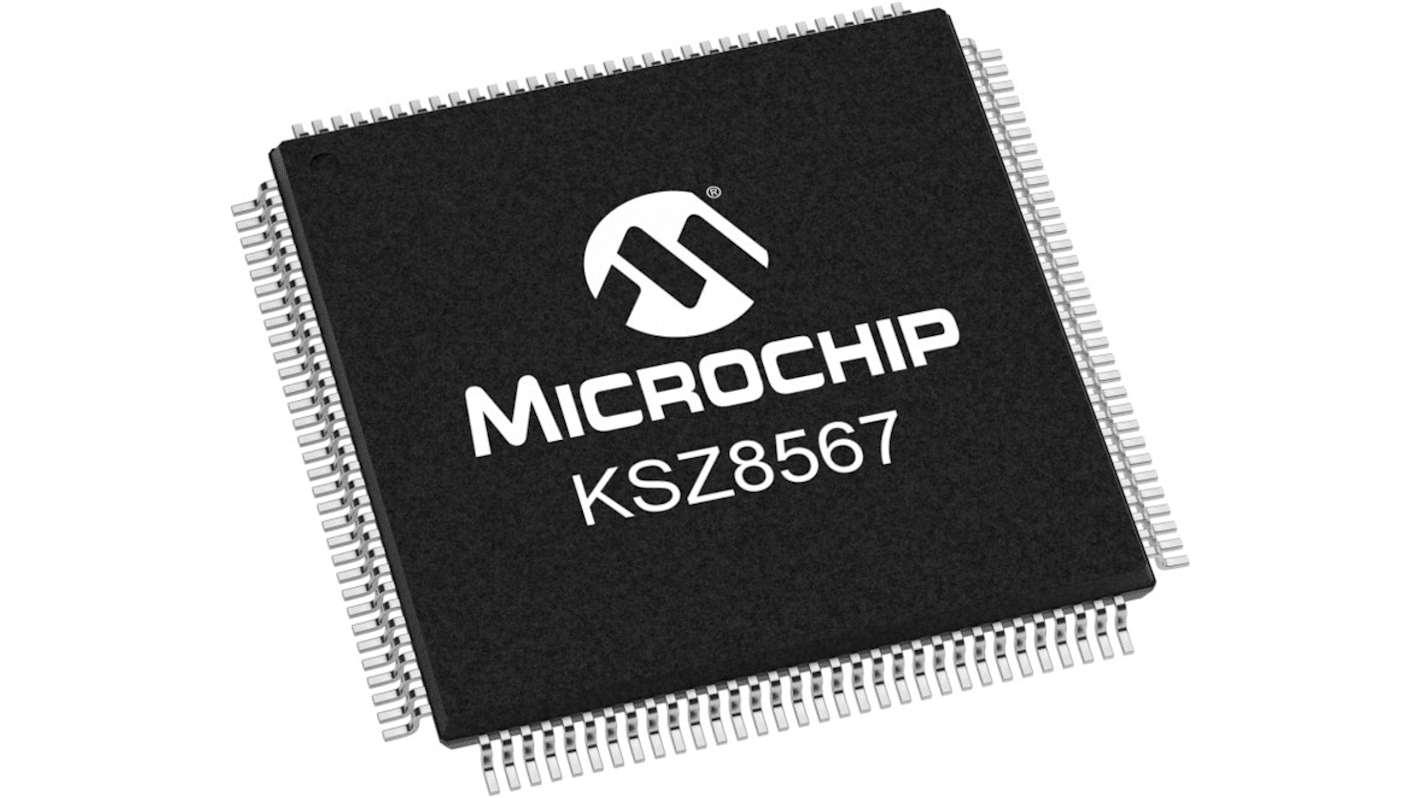

Microchip KSZ8567RTXI, Ethernet Switch IC MDI/MDIX, 1.8 V, 2.5 V, 3.3 V, 128-Pin TQFP

모든 Ethernet Interface Ics 열람하기
대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩19,533.20

Add to Basket
수량 선택 또는 입력
재고있음
  • 80 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 - 9₩19,533.20
10 - 24₩19,138.40
25 - 49₩18,762.40
50 - 89₩18,386.40
90 +₩18,010.40

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
239-5580
제조사 부품 번호:
KSZ8567RTXI
제조업체:
Microchip
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Microchip

Physical Network Type

10/100BASE-T PHY

Network Interface

MDI/MDIX

Communication Mode

Full Duplex/ Half Duplex

Number of Transceivers

5

Package Type

TQFP

Pin Count

128

Typical Operating Supply Voltage

1.8 V, 2.5 V, 3.3 V

The Microchip highly-integrated, IEEE 802.3 compliant networking device that incorporates a layer-2 managed high-performance Ethernet switch, five 10BASE-T/Te/100BASE-TX physical layer transceivers (PHYs) and associated MAC units, and two MAC ports with individually configurable RGMII/MII/RMII interfaces for direct connection to a host processor/controller, another Ethernet switch, or an Ethernet PHY transceiver. This device incorporates full hardware support for the IEEE 1588v2 precision time protocol (PTP), including hardware time-stamping at all PHY-MAC interfaces, and a high-resolution hardware “PTP clock”. IEEE 1588 provides sub microsecond synchronization for a range of industrial Ethernet applications.

Requires 2 to 3 power supply for 1.8 V, 2.5 V, or 3.3 V
Non-blocking wire-speed Ethernet switch fabric supports 1 Gbps on RGMII
Full-featured forwarding and filtering control, including port-based Access Control List filtering
Full VLAN and QoS support
Traffic prioritization with per-port ingress/egress queues and by traffic classification
