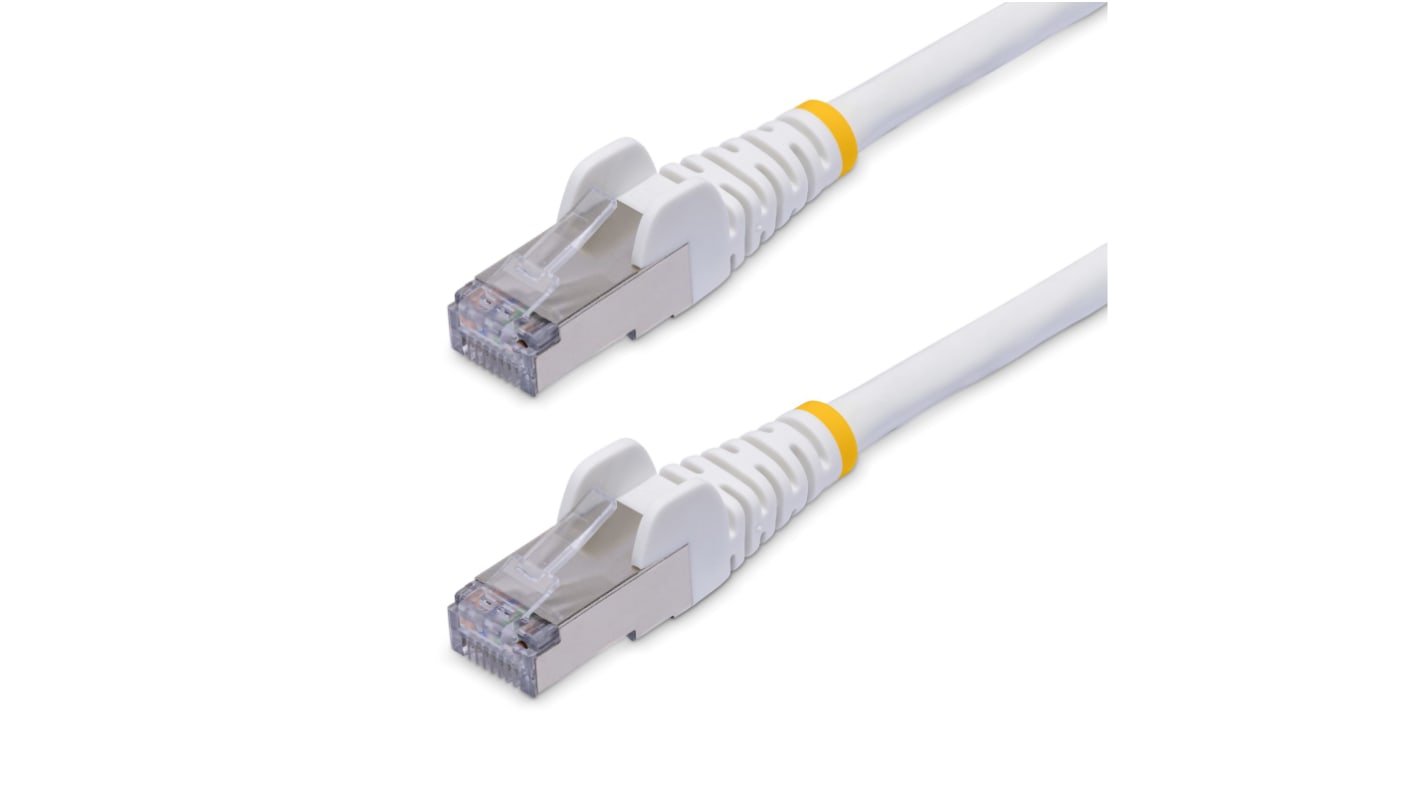

StarTech.com NLWH Cat8 Ethernet Cable, 10 m, S/FTP Screened, White Low Smoke Zero Halogen

RS 제품 번호:: 102-624
제조사 부품 번호:: NLWH-10M-CAT8-PATCH
제조업체:: StarTech.com

StarTech.com NLWH Cat8 Ethernet Cable, 10 m, S/FTP Screened, White Low Smoke Zero Halogen

대량 구매 할인 받기

10개 더 담고 10% 할인 받기

View bulk pricing options

Subtotal (1 unit)*

₩132,400.00

2 개 단위 배송 준비 완료

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당	절감
1 - 9	₩132,400.00	-
10 +	₩119,160.00	10%

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 102-624
제조사 부품 번호:: NLWH-10M-CAT8-PATCH
제조업체:: StarTech.com

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	StarTech.com
	Product Type	Ethernet Cable
	Series	NLWH
	Cable Length	10m
	LAN Category	Cat8
	Terminated/Unterminated	Terminated
	Shield Type	S/FTP
	Sub Type	Snagless
	Screened/Unscreened	Screened
	Conductor Type	Solid
	Jacket Colour	White
	Jacket Material	Low Smoke Zero Halogen
	Minimum Operating Temperature	0°C
	Maximum Operating Temperature	50°C
	Standards/Approvals	IEEE 802.3ba 40GBASE-T, RoHS, TIA/EIA-T568B, CAT8
	Fire Behaviour	Low Smoke Zero Halogen (LSZH)
	Outside Diameter	5.60mm
	Conductor Material	Copper

	모두 선택
	브랜드 StarTech.com
	Product Type Ethernet Cable
	Series NLWH
	Cable Length 10m
	LAN Category Cat8
	Terminated/Unterminated Terminated
	Shield Type S/FTP
	Sub Type Snagless
	Screened/Unscreened Screened
	Conductor Type Solid
	Jacket Colour White
	Jacket Material Low Smoke Zero Halogen
	Minimum Operating Temperature 0°C
	Maximum Operating Temperature 50°C
	Standards/Approvals IEEE 802.3ba 40GBASE-T, RoHS, TIA/EIA-T568B, CAT8
	Fire Behaviour Low Smoke Zero Halogen (LSZH)
	Outside Diameter 5.60mm
	Conductor Material Copper

COO (Country of Origin):: CN

StarTech NLWH Series Ethernet Cable, 10m Cable Length, White Jacket - NLWH-10M-CAT8-PATCH

This Ethernet cable provides screened high-speed connectivity for 25/40Gbps network environments, designed for sheltered and poorly ventilated installations. It uses a shielded S/FTP construction with solid copper conductors and an LSZH jacket to reduce toxic emissions in fire conditions. The cable supports PoE++ power delivery and is suitable for data centres and high-density switch deployments.

Features and Benefits:

• 2000MHz frequency enhances throughput for high-bandwidth links
• 26AWG Pure bare copper reduces electrical resistance for stable transmission
• S/FTP shielding minimises EMI for consistent signal integrity
• Gold-plated connectors rated beyond 750 insertions reduce contact wear
• LSZH jacket emits low toxic fumes for enclosed-space safety

Applications

• Suitable for 40GBASE-T switch interconnects in enterprise networks
• Used with copper SFP modules and 25G/40G network interfaces
• Ideal for powering PoE++ devices such as access points
• Can be used in confined cabling routes and equipment racks

What conductor arrangement is used?

It uses four solid conductor pairs with individual foil shielding and an overall braided shield.

How is PoE capability specified?

The cable supports up to 100W power delivery compliant with IEEE 802.3bt Type 4 PoE++ requirements.

Which standards and verification apply to its performance?

It is verified to meet ANSI/TIA-568.2-D parameters and 40GBASE-T performance limits.

What operating temperatures are permitted?

The operational range is 0°C to 50°C for Active use.
