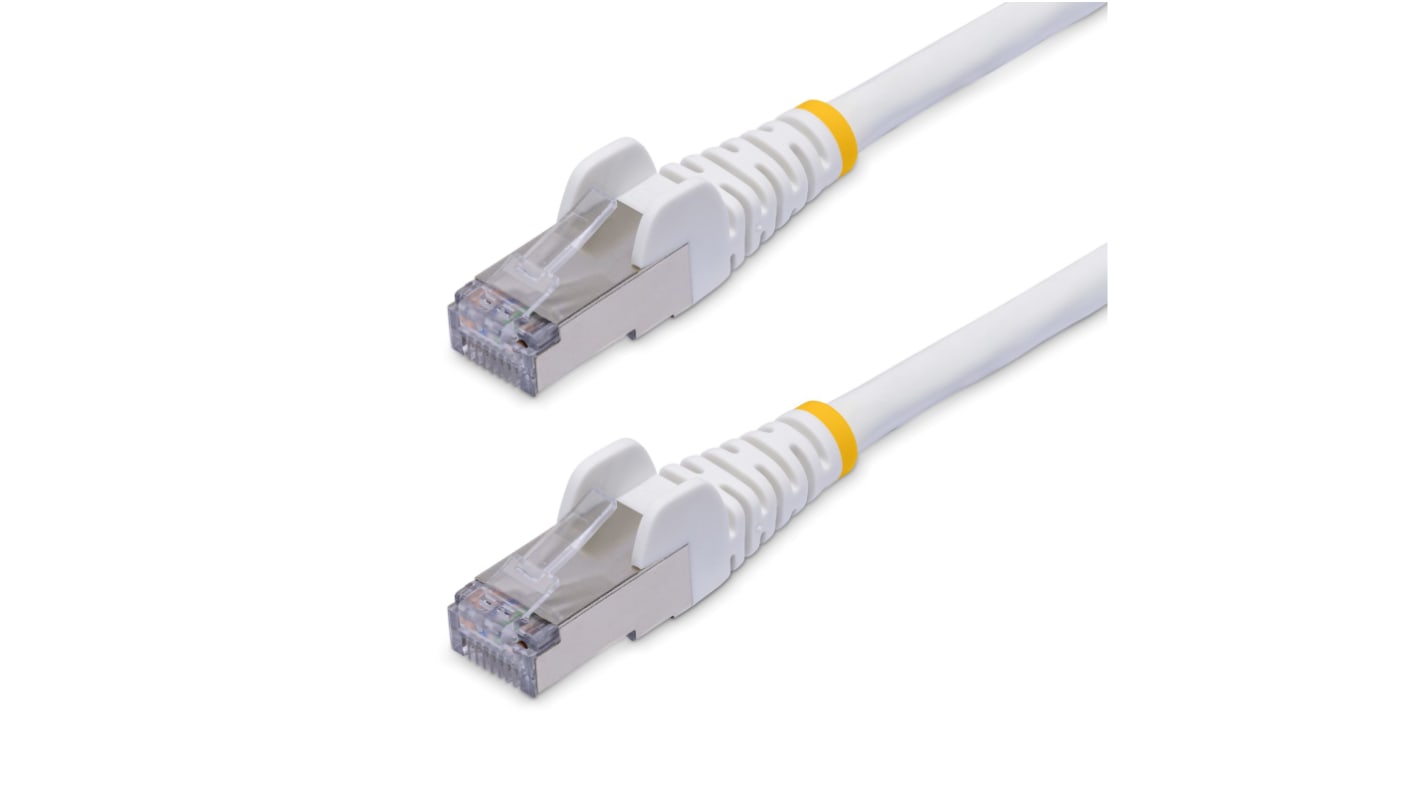

StarTech.com NLWH Cat8 Ethernet Cable, 15 m, S/FTP Screened, White Low Smoke Zero Halogen

RS 제품 번호:: 102-616
제조사 부품 번호:: NLWH-15M-CAT8-PATCH
제조업체:: StarTech.com

StarTech.com NLWH Cat8 Ethernet Cable, 15 m, S/FTP Screened, White Low Smoke Zero Halogen

대량 구매 할인 기용 가능

View bulk pricing options

Subtotal (1 unit)*

₩207,720.00

7 개 단위 배송 준비 완료

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 - 9	₩207,720.00
10 +	₩186,960.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 102-616
제조사 부품 번호:: NLWH-15M-CAT8-PATCH
제조업체:: StarTech.com

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	StarTech.com
	Product Type	Ethernet Cable
	Series	NLWH
	Cable Length	15m
	LAN Category	Cat8
	Terminated/Unterminated	Terminated
	Sub Type	Snagless
	Shield Type	S/FTP
	Screened/Unscreened	Screened
	Conductor Type	Solid
	Jacket Colour	White
	Jacket Material	Low Smoke Zero Halogen
	Minimum Operating Temperature	0°C
	Maximum Operating Temperature	50°C
	Standards/Approvals	RoHS, CAT8, TIA/EIA-T568B, IEEE 802.3ba 40GBASE-T
	Fire Behaviour	Low Smoke Zero Halogen (LSZH)
	Conductor Material	Copper
	Outside Diameter	5.6mm

	모두 선택
	브랜드 StarTech.com
	Product Type Ethernet Cable
	Series NLWH
	Cable Length 15m
	LAN Category Cat8
	Terminated/Unterminated Terminated
	Sub Type Snagless
	Shield Type S/FTP
	Screened/Unscreened Screened
	Conductor Type Solid
	Jacket Colour White
	Jacket Material Low Smoke Zero Halogen
	Minimum Operating Temperature 0°C
	Maximum Operating Temperature 50°C
	Standards/Approvals RoHS, CAT8, TIA/EIA-T568B, IEEE 802.3ba 40GBASE-T
	Fire Behaviour Low Smoke Zero Halogen (LSZH)
	Conductor Material Copper
	Outside Diameter 5.6mm

COO (Country of Origin):: CN

StarTech NLWH Series Ethernet Cable, 15m Cable Length, White - NLWH-15M-CAT8-PATCH

This ethernet cable provides high-speed screened connectivity for enterprise and dense installations. It supports 25/40Gbps links over a shielded four-pair S/FTP construction and is sheathed in a Low Smoke Zero Halogen jacket suitable for confined or poorly ventilated spaces. The cable is intended for use with 40GBASE-T hardware, delivering both data and up to 100W PoE++ power while maintaining stable transmission characteristics across demanding environments.

Features and Benefits:

• 2000MHz frequency for increased throughput and reduced congestion
• 26AWG Pure bare copper for low resistance and consistent conductivity
• S/FTP shielding with Al-mylar and braid for enhanced EMI protection
• 50μ gold-plated RJ45 connectors minimise wear across insertions
• LSZH jacket limits smoke and toxic emissions in fires

Applications

• Suitable for high-density data centre switch interconnects
• Used with 40GBASE-T switches and copper SFP modules
• Ideal for powering PoE++ access points and IP cameras
• Used for NAS and SAN copper connectivity in racks

What conductor type is used and why is it chosen?

It uses 26AWG solid Pure bare copper conductors which provide low resistance and stable signal performance across varying temperatures.

How is electromagnetic interference addressed in the cable design?

Each twisted pair is individually foil screened and the overall cable has a tinned-copper braid to improve EMI rejection in noisy environments.

What are the operating and storage temperature limits?

The cable operates between 0°C and 50°C and can be stored between -20°C and 60°C.

How is performance verification performed for each unit?

Every cable is tested individually using a Fluke DSX2-8000 CableAnalyser to confirm conformance to Cat8 parameters.

Which wiring standard and PoE specification does it support?

It follows TIA/EIA-T568B wiring and supports PoE++ power delivery up to 100W in line with IEEE 802.3bt.
