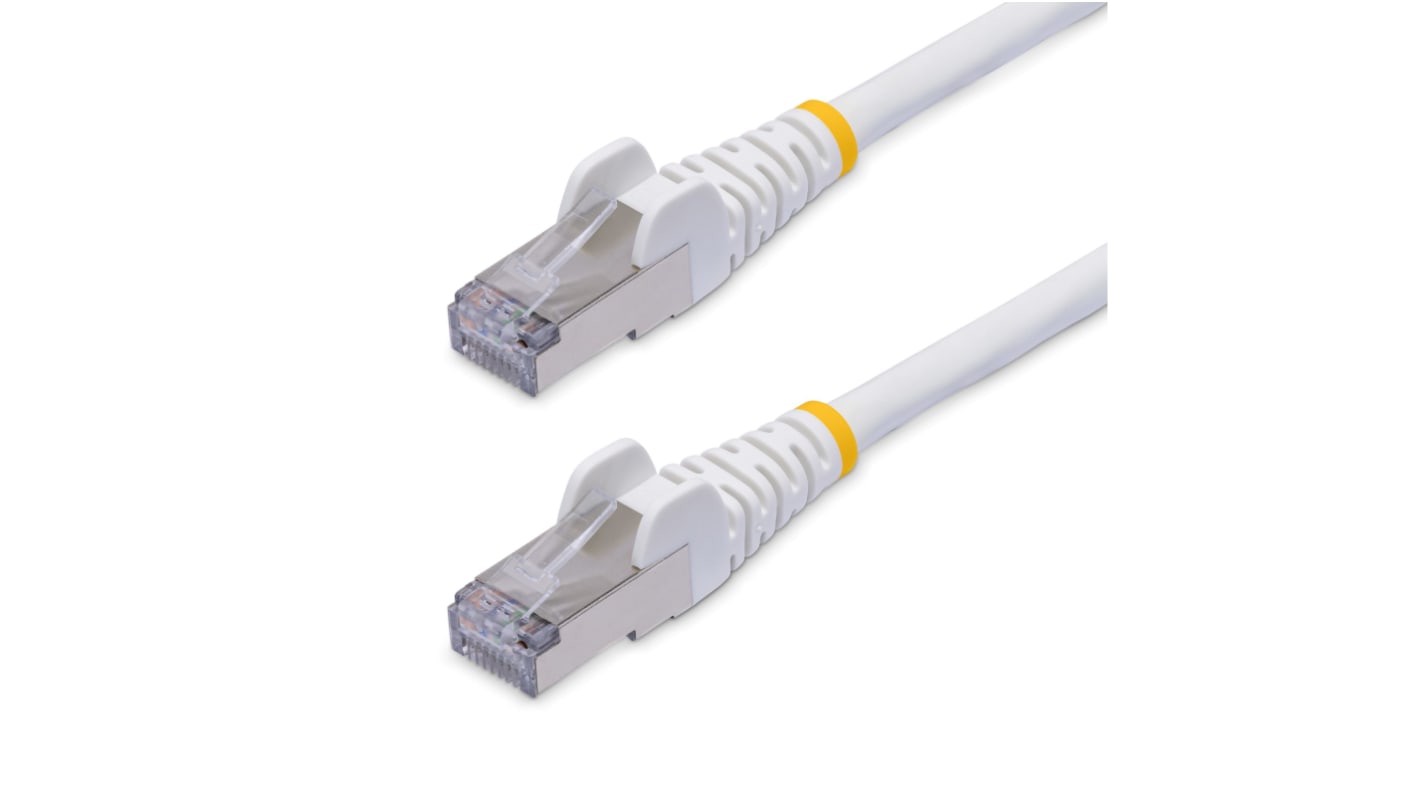

StarTech.com NLWH Cat8 Ethernet Cable, 12 m, S/FTP Screened, White Low Smoke Zero Halogen

RS 제품 번호:: 102-617
제조사 부품 번호:: NLWH-12M-CAT8-PATCH
제조업체:: StarTech.com

StarTech.com NLWH Cat8 Ethernet Cable, 12 m, S/FTP Screened, White Low Smoke Zero Halogen

대량 구매 할인 받기

10개 더 담고 9% 할인 받기

View bulk pricing options

Subtotal (1 unit)*

₩164,620.00

6 개 단위 배송 준비 완료

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당	절감
1 - 9	₩164,620.00	-
10 +	₩148,160.00	9%

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 102-617
제조사 부품 번호:: NLWH-12M-CAT8-PATCH
제조업체:: StarTech.com

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	StarTech.com
	Series	NLWH
	Product Type	Ethernet Cable
	LAN Category	Cat8
	Cable Length	12m
	Terminated/Unterminated	Terminated
	Shield Type	S/FTP
	Sub Type	Snagless
	Screened/Unscreened	Screened
	Conductor Type	Solid
	Jacket Colour	White
	Jacket Material	Low Smoke Zero Halogen
	Minimum Operating Temperature	0°C
	Maximum Operating Temperature	50°C
	Fire Behaviour	Low Smoke Zero Halogen (LSZH)
	Standards/Approvals	IEEE 802.3ba 40GBASE-T, CAT8, RoHS, TIA/EIA-T568B
	Outside Diameter	5.6mm
	Conductor Material	Copper

	모두 선택
	브랜드 StarTech.com
	Series NLWH
	Product Type Ethernet Cable
	LAN Category Cat8
	Cable Length 12m
	Terminated/Unterminated Terminated
	Shield Type S/FTP
	Sub Type Snagless
	Screened/Unscreened Screened
	Conductor Type Solid
	Jacket Colour White
	Jacket Material Low Smoke Zero Halogen
	Minimum Operating Temperature 0°C
	Maximum Operating Temperature 50°C
	Fire Behaviour Low Smoke Zero Halogen (LSZH)
	Standards/Approvals IEEE 802.3ba 40GBASE-T, CAT8, RoHS, TIA/EIA-T568B
	Outside Diameter 5.6mm
	Conductor Material Copper

COO (Country of Origin):: CN

StarTech NLWH Series Ethernet Cable, 12m Cable Length, White - NLWH-12M-CAT8-PATCH

This ethernet cable provides high-speed screened connectivity for enterprise and dense networking environments. It supports 25/40Gbps links and 40GBASE-T hardware while delivering data and power over PoE++ in confined or poorly ventilated spaces. The cable combines solid copper conductors with an LSZH jacket and full pair shielding to maintain signal integrity where electromagnetic interference is present.

Features and Benefits:

• 2000MHz frequency for significantly increased throughput
• S/FTP construction reduces electromagnetic interference effects
• 26AWG Pure bare copper for lower resistance transmission
• 100W PoE++ support supplies power to connected devices
• Individually Fluke-tested to verify Cat8 performance

Applications

• Suitable for high-density 25/40GBASE-T switch connections
• Used with copper SFP modules and NICs in racks
• Ideal for powering PoE++ access points and cameras
• Can be used in enclosed transport or industrial areas
• Used in data centres needing screened patching solutions

What conductor type is used and how does it affect performance?

It uses solid 26AWG Pure bare copper conductors which provide consistent conductivity and reduced signal loss across installations.

How is the cable protected against external interference?

Each twisted pair is wrapped in aluminium-mylar foil with an overall braided shield delivering S/FTP screening for enhanced EMI resistance.

What operational temperatures can the cable tolerate?

It operates between 0°C and 50°C and can be stored between -20°C and 60°C.

How does the jacket material influence safety in enclosed spaces?

The Low Smoke Zero Halogen jacket emits reduced smoke and toxic fumes when exposed to heat, improving safety in poorly ventilated environments.

What connector durability and testing standards exist for the product?

Connectors feature 50μ gold plating rated beyond 750 mating cycles and each cable is tested with a Fluke DSX2-8000 to confirm compliance with ANSI/TIA-568.2-D.
