IDEM ES Series Twist Release Emergency Stop Push Button, Surface Mount, 2 NC/1 NO, IP69K
- RS 제품 번호:
- 826-4390
- 제조사 부품 번호:
- 231001
- 제조업체:
- IDEM
Subtotal (1 unit)*
₩292,324.50
재고있음
- 추가로 2026년 4월 27일 부터 45 개 단위 배송
- 추가로 2026년 4월 29일 부터 18 개 단위 배송
- 추가로 2026년 5월 13일 부터 30 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩292,324.50 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 826-4390
- 제조사 부품 번호:
- 231001
- 제조업체:
- IDEM
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | IDEM | |
| Product Type | Emergency Stop Push Button | |
| Mount Type | Surface Mount | |
| Contact Configuration | 2 NC/1 NO | |
| Push Button Actuation | Twist Release | |
| Housing Material | Stainless Steel | |
| Illuminated | No | |
| Series | ES | |
| IP Rating | IP69K | |
| Colour | Red | |
| Terminal Type | Clamp Terminal | |
| Contact AC Voltage | 240V ac | |
| Contact Current | 3A | |
| Contact DC Voltage | 24V dc | |
| Depth | 105mm | |
| Length | 75mm | |
| Standards/Approvals | EN 62061, ISO13850, IEC60947-5-5, EN 954-1, EN1088, EN60204-1, ISO 13849-1 | |
| Hazardous Area Certification | NO | |
| Width | 70mm | |
| Push Button Material | Plastic | |
| 모두 선택 | ||
|---|---|---|
브랜드 IDEM | ||
Product Type Emergency Stop Push Button | ||
Mount Type Surface Mount | ||
Contact Configuration 2 NC/1 NO | ||
Push Button Actuation Twist Release | ||
Housing Material Stainless Steel | ||
Illuminated No | ||
Series ES | ||
IP Rating IP69K | ||
Colour Red | ||
Terminal Type Clamp Terminal | ||
Contact AC Voltage 240V ac | ||
Contact Current 3A | ||
Contact DC Voltage 24V dc | ||
Depth 105mm | ||
Length 75mm | ||
Standards/Approvals EN 62061, ISO13850, IEC60947-5-5, EN 954-1, EN1088, EN60204-1, ISO 13849-1 | ||
Hazardous Area Certification NO | ||
Width 70mm | ||
Push Button Material Plastic | ||
- COO (Country of Origin):
- GB

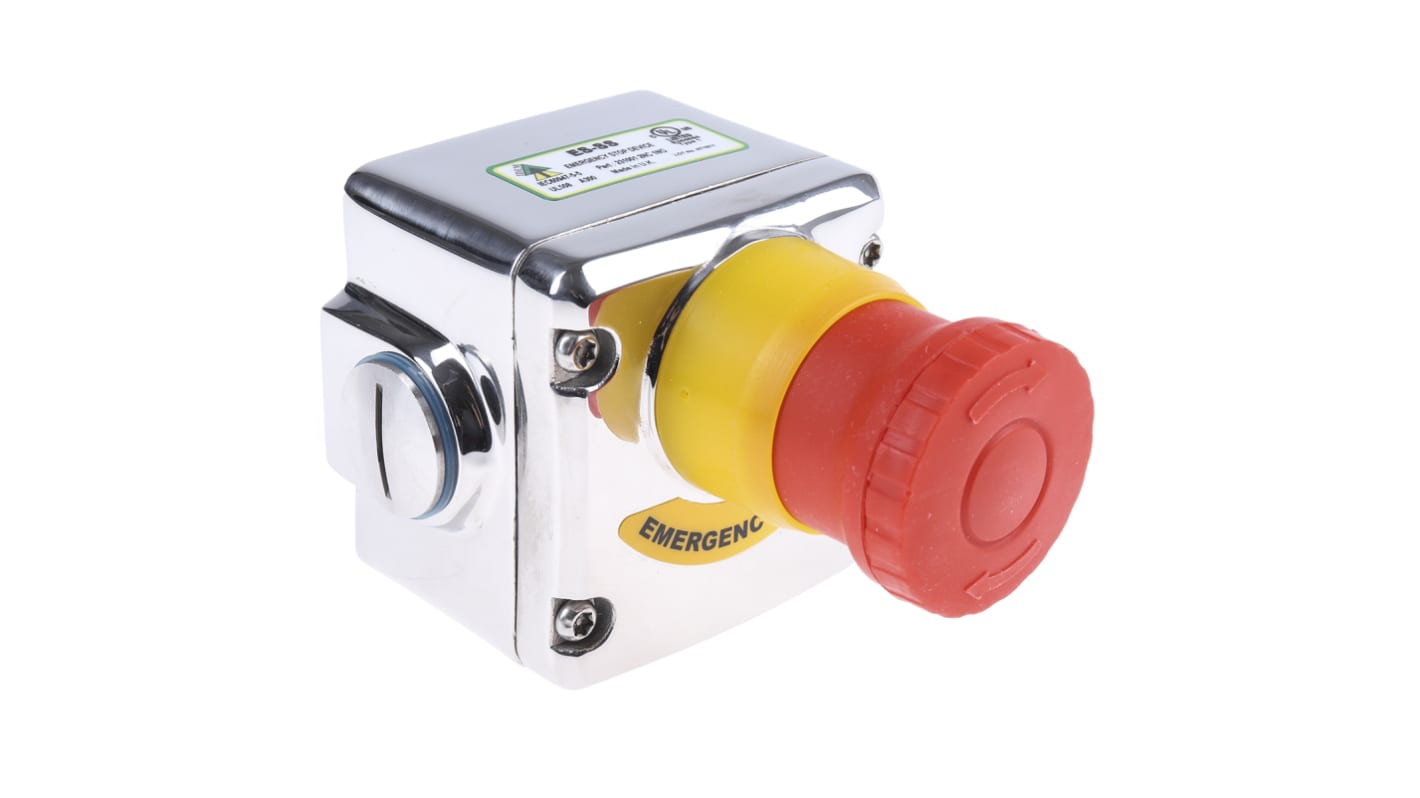

IDEM Emergency Stop Pushbutton
The IDEM ES-SS series emergency stop pushbutton has a red, unpainted round style head with the diameter of 40mm. Its housing is made from polyester material and the button is made of plastic material. This device is a standard duty emergency stop switch (E-Stop), designed to provide robust emergency stop protection for machines or exposed conveyors.
A special lid safety trip mechanism enables the safety contacts to open if the lid is removed. This pushbutton has a contact current rating of 3A and a voltage rating of 240V. They are suitable for use within virtually all industry sectors.
Features and Benefits
2NC/1NO contact configuration
Twist to reset method
Conduit entry of M20
Non-illuminated
High pressure hosed with detergents at high-temperature
Connects to most safety relays to give up to PLeCat.4
Certifications
ISO13850
EN60947-5-1
EN60947-5-5
UL 508
ISO13850
ISO13849-1
