제조사부품번호

APEM A01ES Series Twist Release Emergency Stop Push Button, Surface Mount, 1 NC, IP65

RS 제품 번호:: 417-5401
Distrelec 제품 번호:: 303-99-192
제조사 부품 번호:: A01ES-DSP3+54B-D+FM2+YL5+PEA01
제조업체:: APEM

APEM A01ES Series Twist Release Emergency Stop Push Button, Surface Mount, 1 NC, IP65

현재 비가용

RS는 이 제품을 더 이상 판매하지 않습니다.

대체품

이 제품은 현재 공급 불가입니다. 아래 제품들은 당사에서 추천드리는 대체품입니다.

Eaton Key Release Control Station Switch - SPDT, Plastic, Red, IP69K, IP67

RS 제품 번호: 399-3113

개당

₩140,680.00

RS 제품 번호:: 417-5401
Distrelec 제품 번호:: 303-99-192
제조사 부품 번호:: A01ES-DSP3+54B-D+FM2+YL5+PEA01
제조업체:: APEM

사양

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	APEM
	Product Type	Emergency Stop Push Button
	Mount Type	Surface Mount
	Contact Configuration	1 NC
	Housing Material	Polycarbonate
	Push Button Actuation	Twist Release
	Illuminated	No
	Series	A01ES
	IP Rating	IP65
	Contact AC Voltage	380V ac
	Contact DC Voltage	12V dc
	Number of Auxiliary Contacts	4
	Depth	57mm
	Switch Configuration	DP, 4P, 1P, 3P
	Standards/Approvals	IEC 529, BS RIA 20 Shock & Vibration, IEC 68-2-20Tb, UL 1054, EN 61058-1, Method 2
	Hazardous Area Certification	No
	Length	65mm
	Head Diameter	40mm
	Width	65mm
	Push Button Material	Plastic

	모두 선택
	브랜드 APEM
	Product Type Emergency Stop Push Button
	Mount Type Surface Mount
	Contact Configuration 1 NC
	Housing Material Polycarbonate
	Push Button Actuation Twist Release
	Illuminated No
	Series A01ES
	IP Rating IP65
	Contact AC Voltage 380V ac
	Contact DC Voltage 12V dc
	Number of Auxiliary Contacts 4
	Depth 57mm
	Switch Configuration DP, 4P, 1P, 3P
	Standards/Approvals IEC 529, BS RIA 20 Shock & Vibration, IEC 68-2-20Tb, UL 1054, EN 61058-1, Method 2
	Hazardous Area Certification No
	Length 65mm
	Head Diameter 40mm
	Width 65mm
	Push Button Material Plastic

COO (Country of Origin):: GB

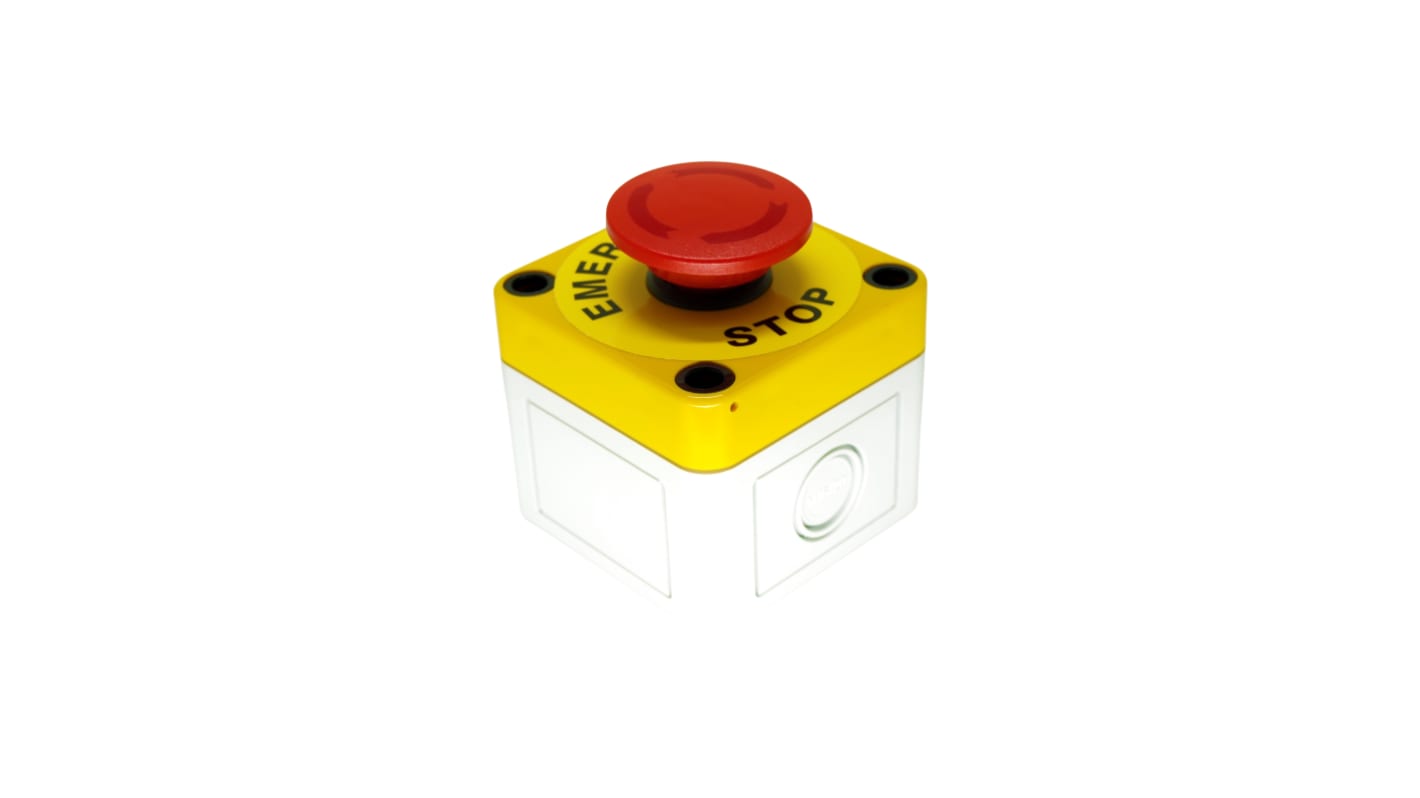

APEM Emergency Stop Assembly Station

The APEM A01ES series 40mm stop pushbutton has a double normally closed normal state configuration. It is made of plastic material and has a mushroom head style.

Features and Benefits

Twist-to-reset action

Non-illuminated

Double-pole, positive break switch

Operating temperature ranges between -200C and 55°C

2.8mm solder/quick connect terminals

Applications

OEMs

Panel builders, contractors,

Industrial machines and equipment

Control panels and control stations

Emergency circuits, alarm and signal equipment

Traction equipments

Certifications

UL listed

CSA certified

VDE certified

CE certified

Approvals

UL; CSA; VDE; CE
