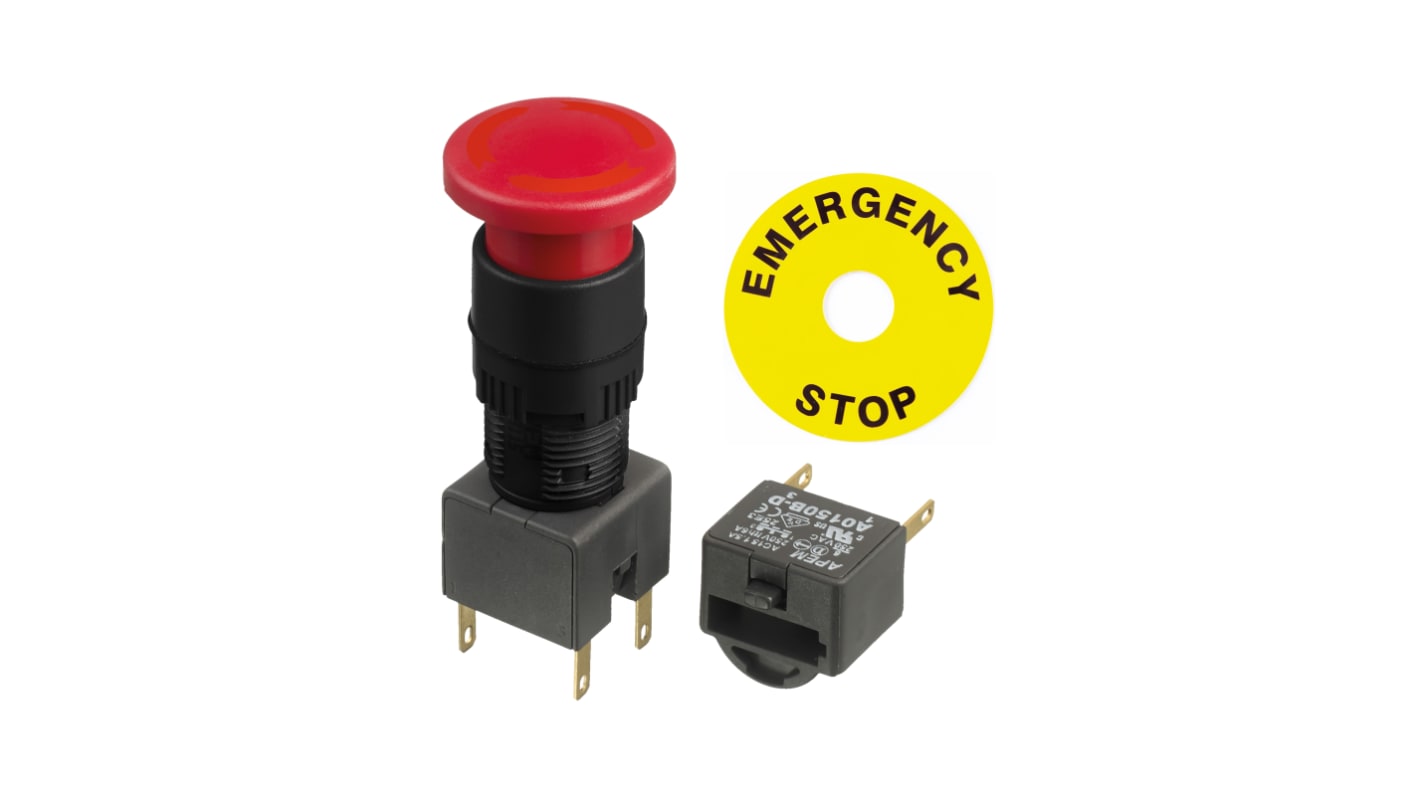

APEM A01ES Series Twist Release Emergency Stop Push Button, Panel Mount, 16mm Cutout, 2NC, IP65

RS 제품 번호:: 219-5813
Distrelec 제품 번호:: 303-99-191
제조사 부품 번호:: A01ES-DM+A0154B-D+A01YL1
제조업체:: APEM

APEM A01ES Series Twist Release Emergency Stop Push Button, Panel Mount, 16mm Cutout, 2NC, IP65

대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩47,958.80

제한된 재고

46 개 단위 배송 준비 완료

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 - 14	₩47,958.80
15 - 49	₩46,642.80
50 - 99	₩45,214.00
100 +	₩44,405.60

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 219-5813
Distrelec 제품 번호:: 303-99-191
제조사 부품 번호:: A01ES-DM+A0154B-D+A01YL1
제조업체:: APEM

AO1 Series Switches - 16mm Operators

Modular construction illuminated and non illuminated Pushbutton, Keylock, Rotary and Emergency Stop switches to fit industry standard 16mm diameter cut-outs. Round, square and rectangular operators can be fitted to single, double, three and four pole switch blocks for a variety of applications. A complete Pushbutton switch assembly requires an operator, switch block, lens and lamp (if illuminated). Keylock and Rotary switches require an operator and switch block, while the Emergency Stop switch comes as a complete assembly supplied with a double pole N/C switch block and a yellow self adhesive label.

Panel sealing to IP65
Gold plated silver contacts
Pushbuttons illuminated with T1 midget groove filament lamp or LED
Keylocks supplied with 2 keys
Rotary lever switches 219-5784 & 219-5762 feature CW lever rotation, all others are CCW lever rotation
For switch blocks & lenses see stk nos 219-5829 & 239-3483 typically
Selection of accessories includes flipguards, flush mounting bezels, PCB sockets and installation tools, see stk nos 278-1262, 325-2800, 325-2816 & 241-5757 typically

Note

Single and double pole PCB socket accessories are suitable for illuminated pushbuttons only.

Approvals

BEAB, VDE, UL & CSA (Emergency Stop, VDE, UL & CSA only)

Features and Benefits

•Operating temperature : -20°C to +55°C

•Sealing options : front panel IP65, rear panel IP40 according to EN60947-5-5

•Electrical function : push to shut off, twist to release

•Current/voltage rating : AC-15 1,5A 250VAC, 6A 250VAC

•Electrical life : 6.050 cycles

•Insulation resistance : 50MΩ min

•Dielectric test voltage : 2900V

•Mechanical life : 6050 cycles

•Operator case : polyetherimide

•Actuator : polycarbonate

•Switch block : PBT

•Panel seal : neoprene

Frequently asked questions & answers

What is the different between a push button switch for an emergency stop and a general-purpose push button switch?

A general-purpose push button switch is used for controls, e.g. to start machine operation or simply to switch modes. An emergency stop push button switch however, is mainly used as a safety measure to stop hazardous events.

What is Trigger Action?

A standard operator can be teased enough to open a normally closed contact without latching into the depressed position. Trigger action units are spring loaded so they only depress the contact block after it latches into the depressed position.

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	APEM
	Mounting Type	Panel Mount
	Cutout Diameter	16mm
	Contact Configuration	2NC
	Push Button Actuation	Twist Release
	Voltage Rating	250V ac
	Illuminated	No
	Series	A01ES
	IP Rating	IP65
	Colour	Red
	Supply Current	1.5A
	Push Button Material	Plastic

	모두 선택
	브랜드 APEM
	Mounting Type Panel Mount
	Cutout Diameter 16mm
	Contact Configuration 2NC
	Push Button Actuation Twist Release
	Voltage Rating 250V ac
	Illuminated No
	Series A01ES
	IP Rating IP65
	Colour Red
	Supply Current 1.5A
	Push Button Material Plastic
