APEM ES1S4 Series Pull Release Emergency Stop Push Button, Panel Mount, 34 mm Cutout, 2 NC, IP65
- RS 제품 번호:
- 765-1254
- Distrelec 제품 번호:
- 300-23-798
- 제조사 부품 번호:
- ES1S41653001
- 제조업체:
- APEM
대량 구매 할인 기용 가능
View bulk pricing optionsSubtotal (1 unit)*
₩283,549.50
재고있음
- 추가로 2026년 6월 15일 부터 9 개 단위 배송
- 추가로 2026년 6월 22일 부터 14 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 4 | ₩283,549.50 |
| 5 - 24 | ₩278,304.00 |
| 25 - 49 | ₩272,922.00 |
| 50 + | ₩268,690.50 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 765-1254
- Distrelec 제품 번호:
- 300-23-798
- 제조사 부품 번호:
- ES1S41653001
- 제조업체:
- APEM
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | APEM | |
| Product Type | Emergency Stop Push Button | |
| Mount Type | Panel Mount | |
| Cutout Diameter | 34mm | |
| Contact Configuration | 2 NC | |
| Housing Material | Diallylphthalate (Dap) | |
| Push Button Actuation | Pull Release | |
| Series | ES1S4 | |
| Illuminated | No | |
| IP Rating | IP65 | |
| Colour | Red | |
| Contact DC Voltage | 24V dc | |
| Contact Current | 1A | |
| Switch Configuration | 2P, 3P | |
| Depth | 42.3mm | |
| Head Diameter | 34.5mm | |
| Hazardous Area Certification | NO | |
| Standards/Approvals | EN 60947-5-1 | |
| Push Button Material | Aluminium | |
| 모두 선택 | ||
|---|---|---|
브랜드 APEM | ||
Product Type Emergency Stop Push Button | ||
Mount Type Panel Mount | ||
Cutout Diameter 34mm | ||
Contact Configuration 2 NC | ||
Housing Material Diallylphthalate (Dap) | ||
Push Button Actuation Pull Release | ||
Series ES1S4 | ||
Illuminated No | ||
IP Rating IP65 | ||
Colour Red | ||
Contact DC Voltage 24V dc | ||
Contact Current 1A | ||
Switch Configuration 2P, 3P | ||
Depth 42.3mm | ||
Head Diameter 34.5mm | ||
Hazardous Area Certification NO | ||
Standards/Approvals EN 60947-5-1 | ||
Push Button Material Aluminium | ||
- COO (Country of Origin):
- FR
APEM Emergency Stop Button

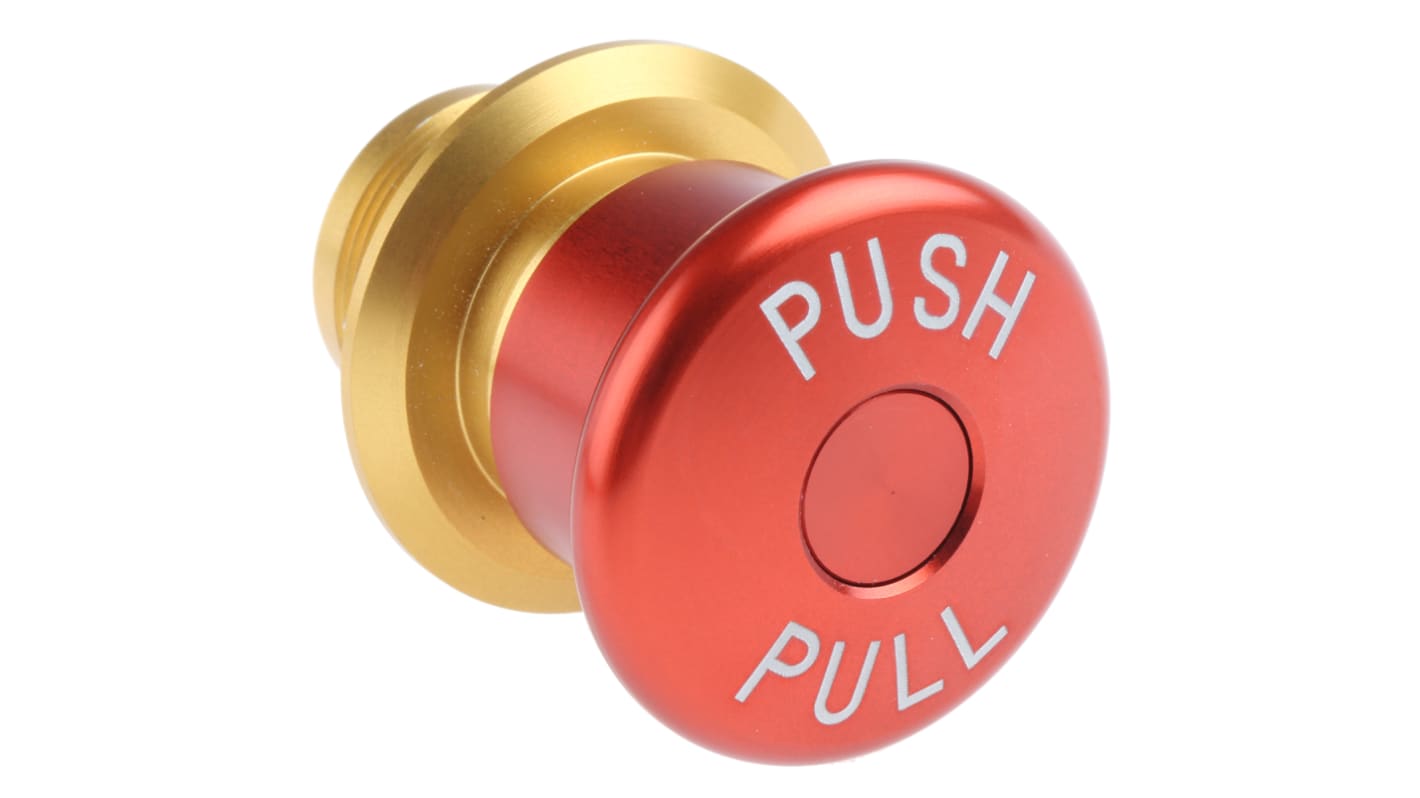

The APEM ES series emergency stop pushbutton has a red anodised mushroom style head with the diameter of 34mm. The head has a PUSH-PULL marking and is made of diallyl phthalate material. It has a double pole single throw (DPST) contact configuration. The button has an electrical current rating of 1A and voltage rating of 24VDC.
Features and Benefits
Pull to reset
Non-illuminated
1NC normal contact configuration
100,000 cycle mechanical life
No axis deformation even if exposed to major shocks
Lower behind-panel depth
Locked/unlocked status indicator
Solder-lug terminal
Panel cut-out diameter of 22.5mm
Applications
Industrial lifts
Air-conditioning panels
Oil and food industry
Certifications
IK10 rated
IP65 rated
EN 60947-5-1
