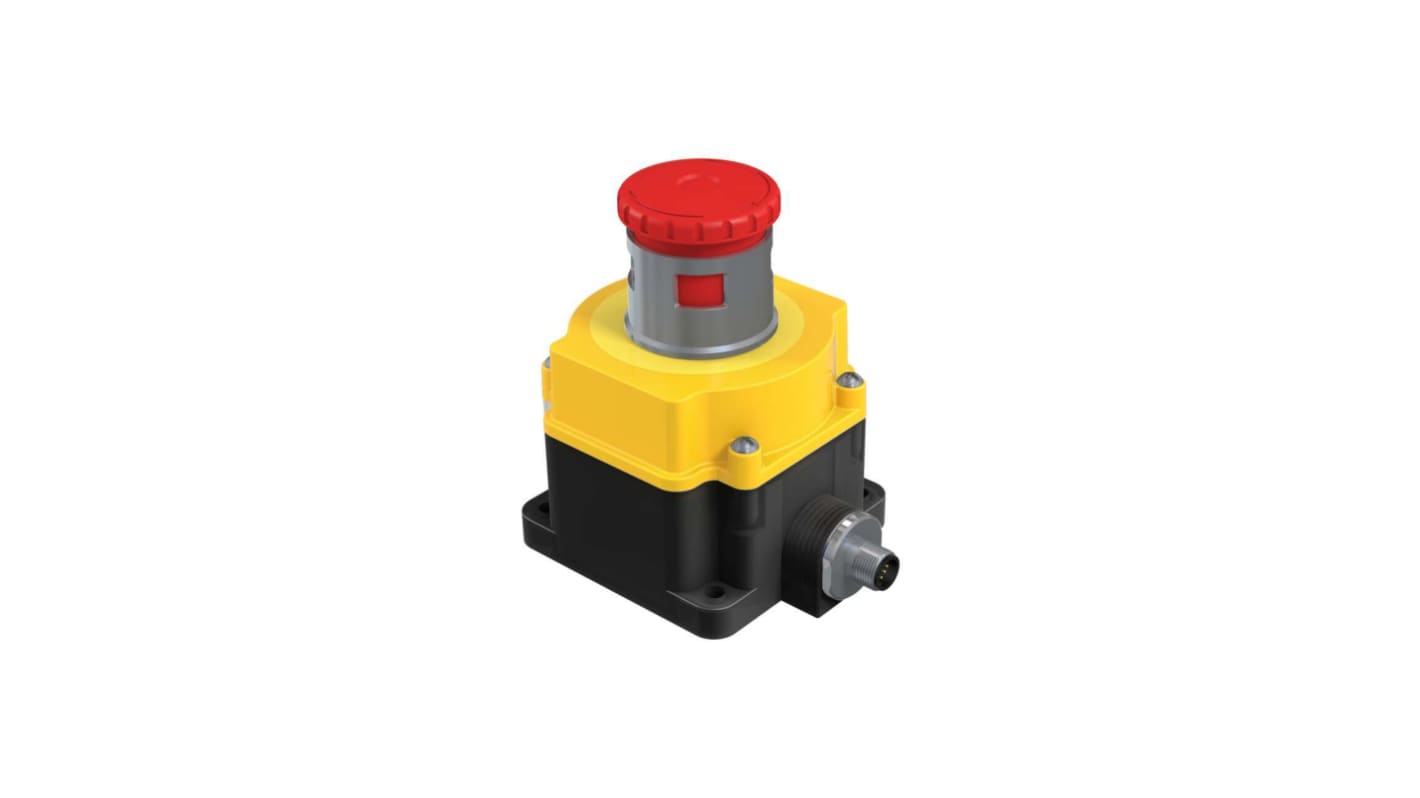

Banner SSA-EB Series Emergency Stop Push Button, Flush, 30 mm Cutout, 2 NC/1 NO, IP20, IP65

RS 제품 번호:: 295-130
제조사 부품 번호:: SSA-EB1MP-22ED1Q8
제조업체:: Banner

Banner SSA-EB Series Emergency Stop Push Button, Flush, 30 mm Cutout, 2 NC/1 NO, IP20, IP65

Subtotal (1 unit)*

₩418,270.00

제조사가 재고 비축중

2026년 12월 28일 부터 배송 준비 완료

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 +	₩418,270.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 295-130
제조사 부품 번호:: SSA-EB1MP-22ED1Q8
제조업체:: Banner

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Banner
	Product Type	Emergency Stop Push Button
	Mount Type	Flush
	Cutout Diameter	30mm
	Contact Configuration	2 NC/1 NO
	Housing Material	Polyamide, Aluminium, Polycarbonate
	Illuminated	No
	Series	SSA-EB
	IP Rating	IP20, IP65
	Colour	Red
	Contact DC Voltage	75V dc
	Contact Current	3A
	Number of Auxiliary Contacts	2
	Switch Configuration	Electro Mechanical
	Depth	109.5mm
	Standards/Approvals	EN ISO 12100, ANSI B11.19, IEC 60947-5-5, UKCA: Machinery (Safety) 2008, IEC/EN 60204-1, ISO 13850, 2006/42/EC, EN 60947-5-5, IEC 62061, OSHA 29CFR1910.147, EN 60947-5-1, ANSI Z244.1, NFPA 79, EN 60947-1, CSA Z460, EN ISO 13849-1:2015, ISO 14118
	Hazardous Area Certification	CE, UKCA
	Head Diameter	60mm
	Width	65mm
	Safety Contacts	1 NC

	모두 선택
	브랜드 Banner
	Product Type Emergency Stop Push Button
	Mount Type Flush
	Cutout Diameter 30mm
	Contact Configuration 2 NC/1 NO
	Housing Material Polyamide, Aluminium, Polycarbonate
	Illuminated No
	Series SSA-EB
	IP Rating IP20, IP65
	Colour Red
	Contact DC Voltage 75V dc
	Contact Current 3A
	Number of Auxiliary Contacts 2
	Switch Configuration Electro Mechanical
	Depth 109.5mm
	Standards/Approvals EN ISO 12100, ANSI B11.19, IEC 60947-5-5, UKCA: Machinery (Safety) 2008, IEC/EN 60204-1, ISO 13850, 2006/42/EC, EN 60947-5-5, IEC 62061, OSHA 29CFR1910.147, EN 60947-5-1, ANSI Z244.1, NFPA 79, EN 60947-1, CSA Z460, EN ISO 13849-1:2015, ISO 14118
	Hazardous Area Certification CE, UKCA
	Head Diameter 60mm
	Width 65mm
	Safety Contacts 1 NC

Datasheet - SSA-EB1MP-22ED1Q8

COO (Country of Origin):: JP

The Banner Emergency Stop Button features push to stop switches. It comes with twist to release operation. It comes with a latching design which complies with ISO 13850.

Rugged

Easy installation with no assembly or individual wiring required

Banner SSA-EB Series Emergency Stop Push Button, Flush, 30 mm Cutout, 2 NC/1 NO, IP20, IP65
