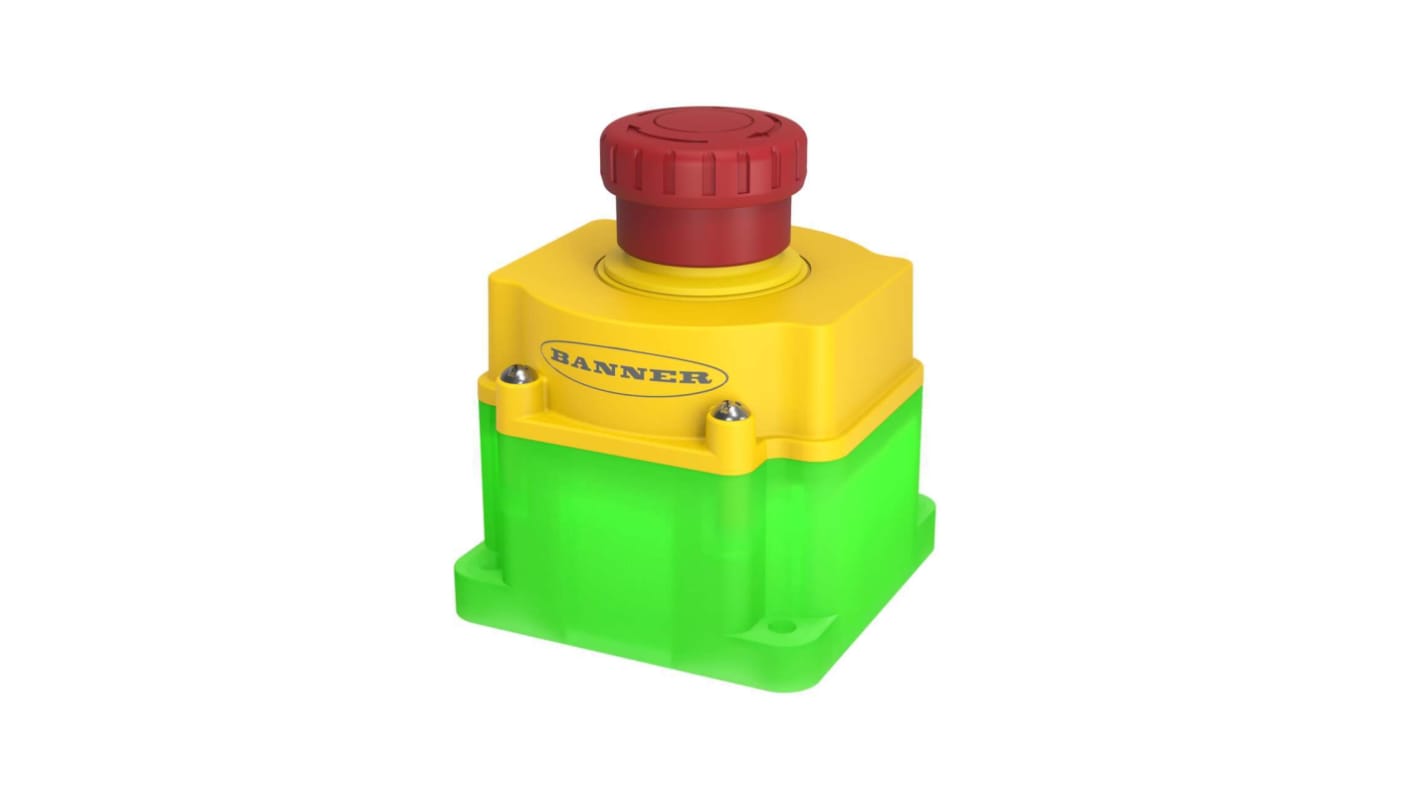

Banner SSA-EB1PLx-0Dx Series Twist Release Illuminated Emergency Stop Push Button, Flush, DPST, IP65
- RS 제품 번호:
- 293-679
- 제조사 부품 번호:
- SSA-EB1PLGR-0DED1Q8
- 제조업체:
- Banner
Subtotal (1 unit)*
₩436,098.00
제조사가 재고 비축중
- 2026년 8월 05일 부터 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩436,098.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 293-679
- 제조사 부품 번호:
- SSA-EB1PLGR-0DED1Q8
- 제조업체:
- Banner
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Banner | |
| Mount Type | Flush | |
| Product Type | Emergency Stop Push Button | |
| Contact Configuration | DPST | |
| Push Button Actuation | Twist Release | |
| Series | SSA-EB1PLx-0Dx | |
| Illuminated | Yes | |
| IP Rating | IP65 | |
| Colour | Green | |
| Contact DC Voltage | 75V dc | |
| Contact Current | 100A | |
| Depth | 102.1mm | |
| Standards/Approvals | OSHA 29CFR1910.147, and IEC/EN 60204-1, EN 60947-5-5, NFPA 79, ANSI Z244-1, ISO 13850, ANSI B11.19, According to EN 61326-1 and EN 61326-3-1, RoHS | |
| Hazardous Area Certification | No | |
| Head Diameter | 30mm | |
| Length | 80.3mm | |
| Width | 80.8mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 Banner | ||
Mount Type Flush | ||
Product Type Emergency Stop Push Button | ||
Contact Configuration DPST | ||
Push Button Actuation Twist Release | ||
Series SSA-EB1PLx-0Dx | ||
Illuminated Yes | ||
IP Rating IP65 | ||
Colour Green | ||
Contact DC Voltage 75V dc | ||
Contact Current 100A | ||
Depth 102.1mm | ||
Standards/Approvals OSHA 29CFR1910.147, and IEC/EN 60204-1, EN 60947-5-5, NFPA 79, ANSI Z244-1, ISO 13850, ANSI B11.19, According to EN 61326-1 and EN 61326-3-1, RoHS | ||
Hazardous Area Certification No | ||
Head Diameter 30mm | ||
Length 80.3mm | ||
Width 80.8mm | ||
- COO (Country of Origin):
- JP
The Banner Lighted Emergency Stop Button features push to stop switches. It comes with twist to release or pull to release operation. It comes with a latching design which complies with ISO 13850.
Rugged
Easy installation with no assembly or individual wiring required
