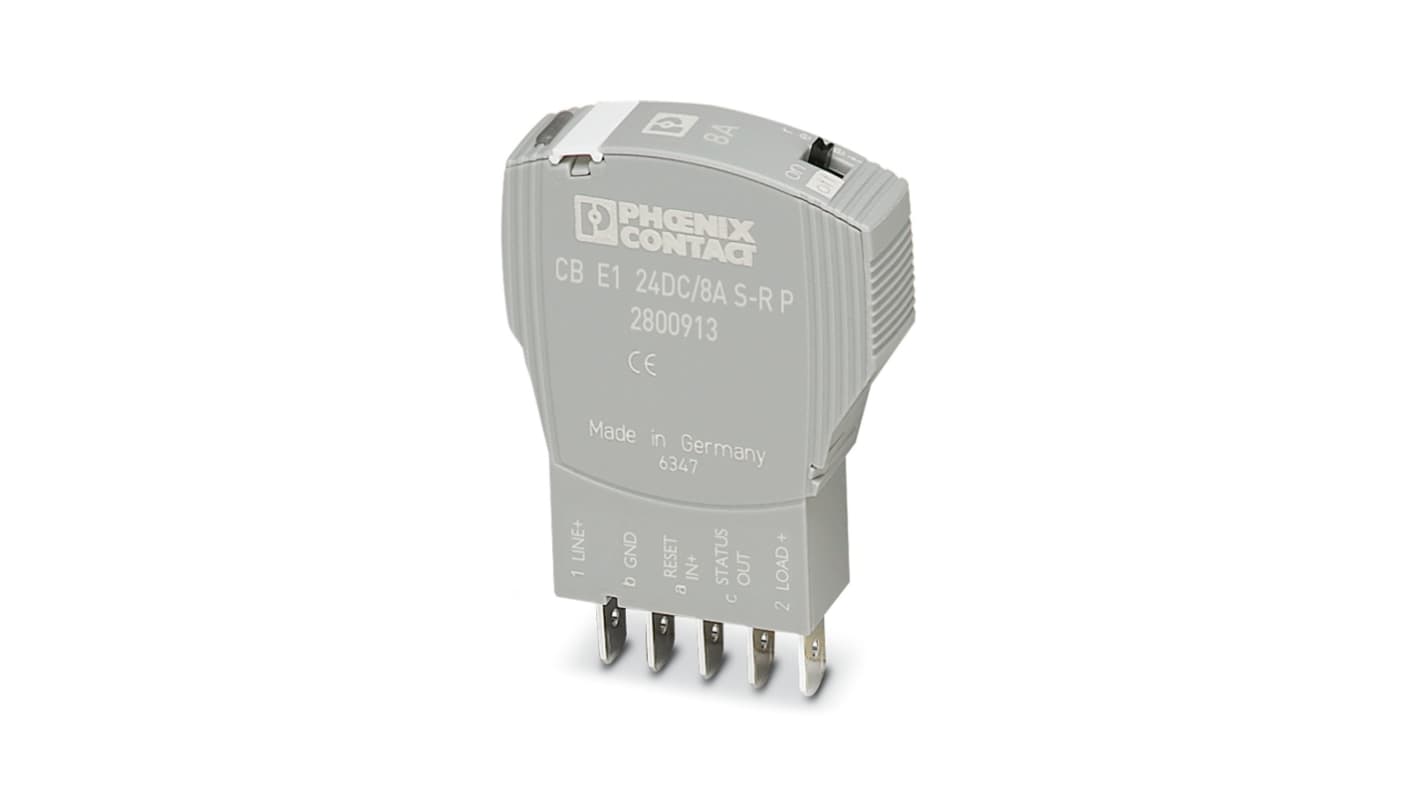

Phoenix Contact CB CB Electronic Circuit Breaker 8 A 24 V, On Base Element Type E
- RS 제품 번호:
- 855-7399
- 제조사 부품 번호:
- 2800913
- 제조업체:
- Phoenix Contact
현재 비가용
RS는 이 제품을 더 이상 판매하지 않습니다.
- RS 제품 번호:
- 855-7399
- 제조사 부품 번호:
- 2800913
- 제조업체:
- Phoenix Contact
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Phoenix Contact | |
| Range | CB | |
| Product Type | Electronic Circuit Breaker | |
| Series | CB | |
| Current Rating | 8 A | |
| Voltage | 24 V | |
| Mount Type | On Base Element | |
| Tripping Characteristics | Type E | |
| Length | 80mm | |
| Terminal Type | Screw | |
| Width | 52 mm | |
| Depth | 52mm | |
| Standards/Approvals | cULus, EN 61000-6-3, RoHS, UL, cUL | |
| 모두 선택 | ||
|---|---|---|
브랜드 Phoenix Contact | ||
Range CB | ||
Product Type Electronic Circuit Breaker | ||
Series CB | ||
Current Rating 8 A | ||
Voltage 24 V | ||
Mount Type On Base Element | ||
Tripping Characteristics Type E | ||
Length 80mm | ||
Terminal Type Screw | ||
Width 52 mm | ||
Depth 52mm | ||
Standards/Approvals cULus, EN 61000-6-3, RoHS, UL, cUL | ||
- COO (Country of Origin):
- DE
Electronic device circuit breaker, 1-pos., active current limitation, status output and reset input, plug for base element.
Supply/remote signaling can be bridged with CLIPLINE complete accessories
Active current limitation, even when switching capacitive loads;The reset input can be switched by means of remote control
