WAGO EPSITRON EPSITRON Electronic Circuit Breaker 8 A 24 V, 1 channels, DIN Rail

모든 Electronic Circuit Breakers 열람하기

Subtotal (1 unit)*

₩147,937.20

Add to Basket
수량 선택 또는 입력
재고있음
  • 6 개 단위 배송 준비 완료
  • 추가로 2026년 3월 05일 부터 12 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 +₩147,937.20

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
177-6030
제조사 부품 번호:
787-2861/800-000
제조업체:
WAGO
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

WAGO

Product Type

Electronic Circuit Breaker

Range

EPSITRON

Series

EPSITRON

Number of Channels

1

Current Rating

8 A

Breaking Capacity

15A

Voltage

24 V

Mount Type

DIN Rail

Length

94mm

Terminal Type

Clamp

Width

97.8 mm

Depth

97.8mm

Standards/Approvals

EN 61000-6-2, RoHS, UL 61010-2-201, CE, EAC

COO (Country of Origin):
DE

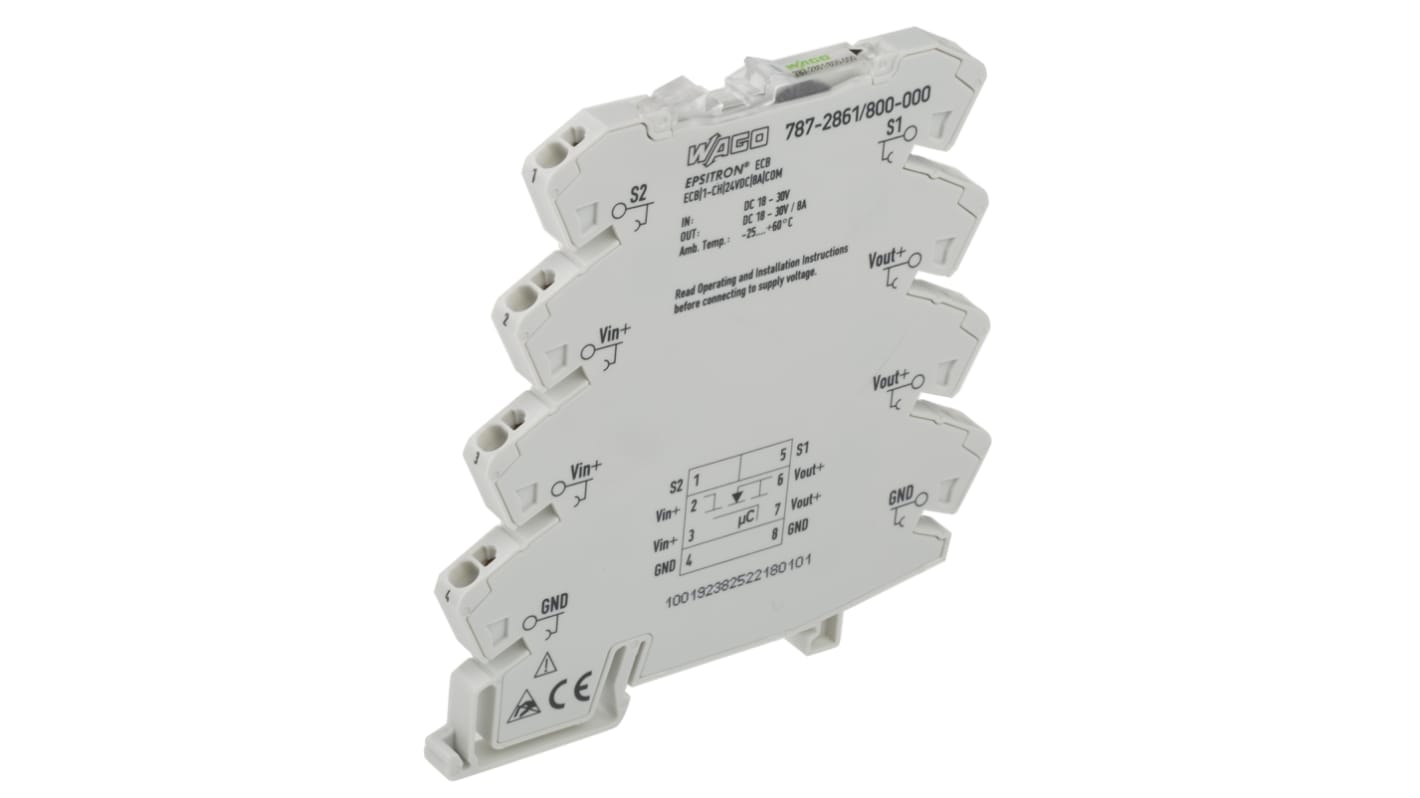

WAGO Electronic Circuit Breaker


The WAGO electronic circuit breaker is a single channel circuit breaker with an output current and voltage capacity of 8A and 30VDC. The DIN rail type of mounting is used for this circuit breaker. The status for the operation of the circuit breaker can be seen by green and red LEDs. The green LED indicates that the channel is ok and red LED shows that the channel is tripped.

Features and Benefits


• Enables the use of an economical, standard power supply

• Minimizes wiring via two voltage outputs and maximizes communing options on both input and output sides

• Prevents power supply overload due to total inrush current thanks to time delayed switching on during interconnected operation

• Reliably and safely trips in the event of an overload and short circuit on the secondary side

• Reset, switch on/off via remote input or local switch

• Space saving ECB

• Status signal as single or group message

• Switch on capacity > 50,000μF

Certifications


• CE certified

• DIN-35 rail (EN 60715)

• EN 61000-6-2

• EN 61000-6-3

• IP20 rated

• UL approved
