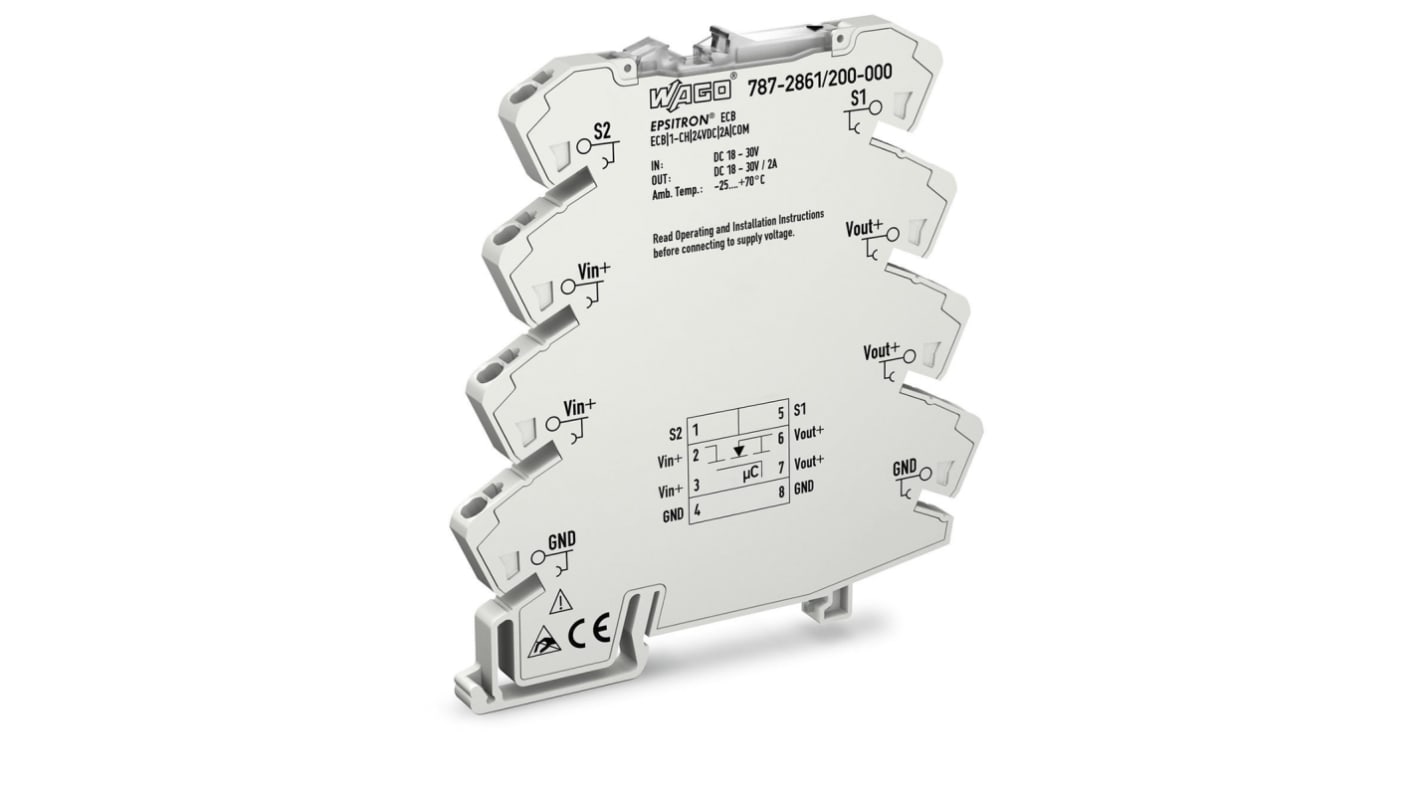

WAGO EPSITRON EPSITRON Electronic Circuit Breaker 2 A 24 V, 1 channels, DIN Rail
- RS 제품 번호:
- 177-6027
- 제조사 부품 번호:
- 787-2861/200-000
- 제조업체:
- WAGO
Subtotal (1 unit)*
₩85,897.20
재고있음
- 13 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩85,897.20 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 177-6027
- 제조사 부품 번호:
- 787-2861/200-000
- 제조업체:
- WAGO
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | WAGO | |
| Product Type | Electronic Circuit Breaker | |
| Range | EPSITRON | |
| Series | EPSITRON | |
| Number of Channels | 1 | |
| Current Rating | 2 A | |
| Voltage | 24 V | |
| Breaking Capacity | 15A | |
| Mount Type | DIN Rail | |
| Length | 94mm | |
| Terminal Type | Clamp | |
| Width | 94 mm | |
| Depth | 94mm | |
| Standards/Approvals | CE, EAC, EN 61000-6-2, RoHS, UL 61010-2-201 | |
| 모두 선택 | ||
|---|---|---|
브랜드 WAGO | ||
Product Type Electronic Circuit Breaker | ||
Range EPSITRON | ||
Series EPSITRON | ||
Number of Channels 1 | ||
Current Rating 2 A | ||
Voltage 24 V | ||
Breaking Capacity 15A | ||
Mount Type DIN Rail | ||
Length 94mm | ||
Terminal Type Clamp | ||
Width 94 mm | ||
Depth 94mm | ||
Standards/Approvals CE, EAC, EN 61000-6-2, RoHS, UL 61010-2-201 | ||
- COO (Country of Origin):
- DE
WAGO 787-2861 Series Electronic Circuit breaker, 2A Current Rating, 15A Breaking Capacity (at Maximum Voltage Rating) - 787-2861/200-000
This electronic circuit breaker features a nominal input voltage of 24 VDC, with an input voltage range of 18 to 30 VDC. It provides a fixed nominal output current of 2 A, with a variable trip time ranging from 4 ms to 100 s depending on load conditions. Its efficiency rating exceeds 99%, reducing unnecessary power loss.
Features & Benefits
• 15 A breaking capacity ensures circuit protection
• 2 A current rating provides efficiency for single-channel applications
• LED status indicators aid operational monitoring and troubleshooting
• Efficiency ≥99% minimises power loss and optimises performance
Applications
• Used with automation systems in manufacturing environments
• Suitable for protecting control circuits in electrical installations
• Utilised in various commercial and industrial electrical systems
Can it handle a range of input voltages?
Yes, it accommodates an input voltage range of 18 to 30 VDC.
Will it indicate when a channel is tripped?
Yes, the status LED turns red to signal a tripped channel.
Is it suitable for use in high humidity environments?
It operates effectively in relative humidity conditions up to 95%.
