WAGO EPSITRON Electronic Circuit breaker 1A 30V 787-2861, 1 channels , DIN Rail Mount
- RS 제품 번호:
- 177-6026
- 제조사 부품 번호:
- 787-2861/100-000
- 제조업체:
- WAGO
Subtotal (1 unit)*
₩137,258.80
재고있음
- 52 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩137,258.80 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 177-6026
- 제조사 부품 번호:
- 787-2861/100-000
- 제조업체:
- WAGO
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | WAGO | |
| Range | EPSITRON | |
| Series | 787-2861 | |
| Number of Channels | 1 | |
| Current Rating | 1A | |
| Breaking Capacity at Maximum Voltage Rating | 15 A | |
| Rated DC Voltage | 30V | |
| Mounting Style | DIN Rail Mount | |
| Length | 94mm | |
| Width | 6mm | |
| Depth | 94mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 WAGO | ||
Range EPSITRON | ||
Series 787-2861 | ||
Number of Channels 1 | ||
Current Rating 1A | ||
Breaking Capacity at Maximum Voltage Rating 15 A | ||
Rated DC Voltage 30V | ||
Mounting Style DIN Rail Mount | ||
Length 94mm | ||
Width 6mm | ||
Depth 94mm | ||
- COO (Country of Origin):
- DE

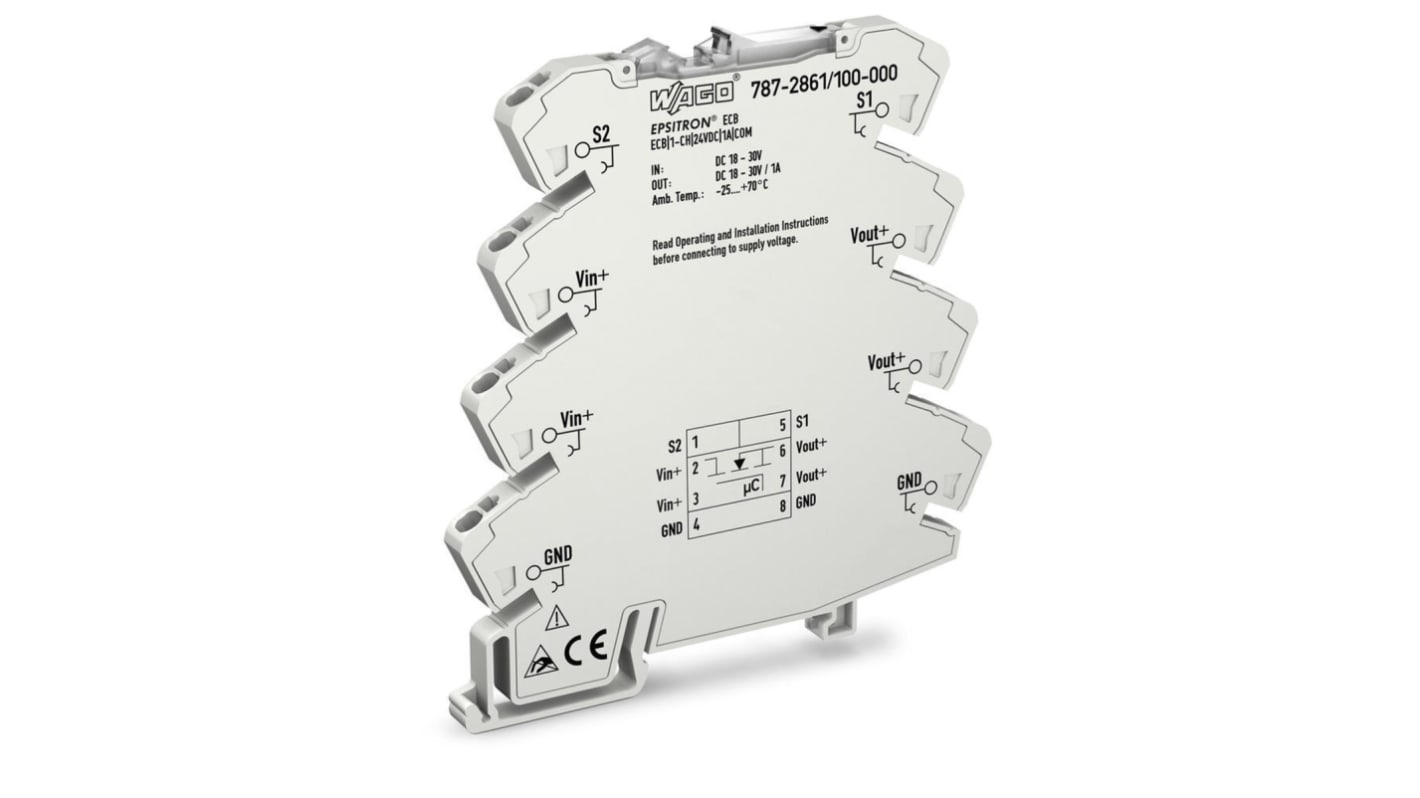

WAGO 787-2861 Series Electronic Circuit breaker, 1A Current Rating, 15A Breaking Capacity (at Maximum Voltage Rating) - 787-2861/100-000
This electronic circuit breaker operates with a 24 VDC input voltage and delivers a nominal output current of 1 A. It features a variable response time from 4 ms to 100 seconds, adapting to load fluctuations while ensuring robust protection. Its compact design allows for easy integration into tight spaces.
Features & Benefits
• 15A breaking capacity enhances system protection
• 1A fixed output current for stable operation
• Input voltage range of 18VDC to 30VDC provides flexibility
• LED indicators facilitate immediate status assessment
• Efficiency rating of 99% minimises power loss
• 1A fixed output current for stable operation
• Input voltage range of 18VDC to 30VDC provides flexibility
• LED indicators facilitate immediate status assessment
• Efficiency rating of 99% minimises power loss
Applications
• Ideal for automated control systems
• Suitable for circuit protection in electrical panels
• Employed in renewable energy setups managing DC loads
• Utilised in machinery for overload protection
• Suitable for circuit protection in electrical panels
• Employed in renewable energy setups managing DC loads
• Utilised in machinery for overload protection
Is it compatible with DIN-35 rail systems?
Yes, it is designed for DIN-35 rail mounting.
Can it operate in extreme temperatures?
It operates effectively between -25°C and 70°C.
