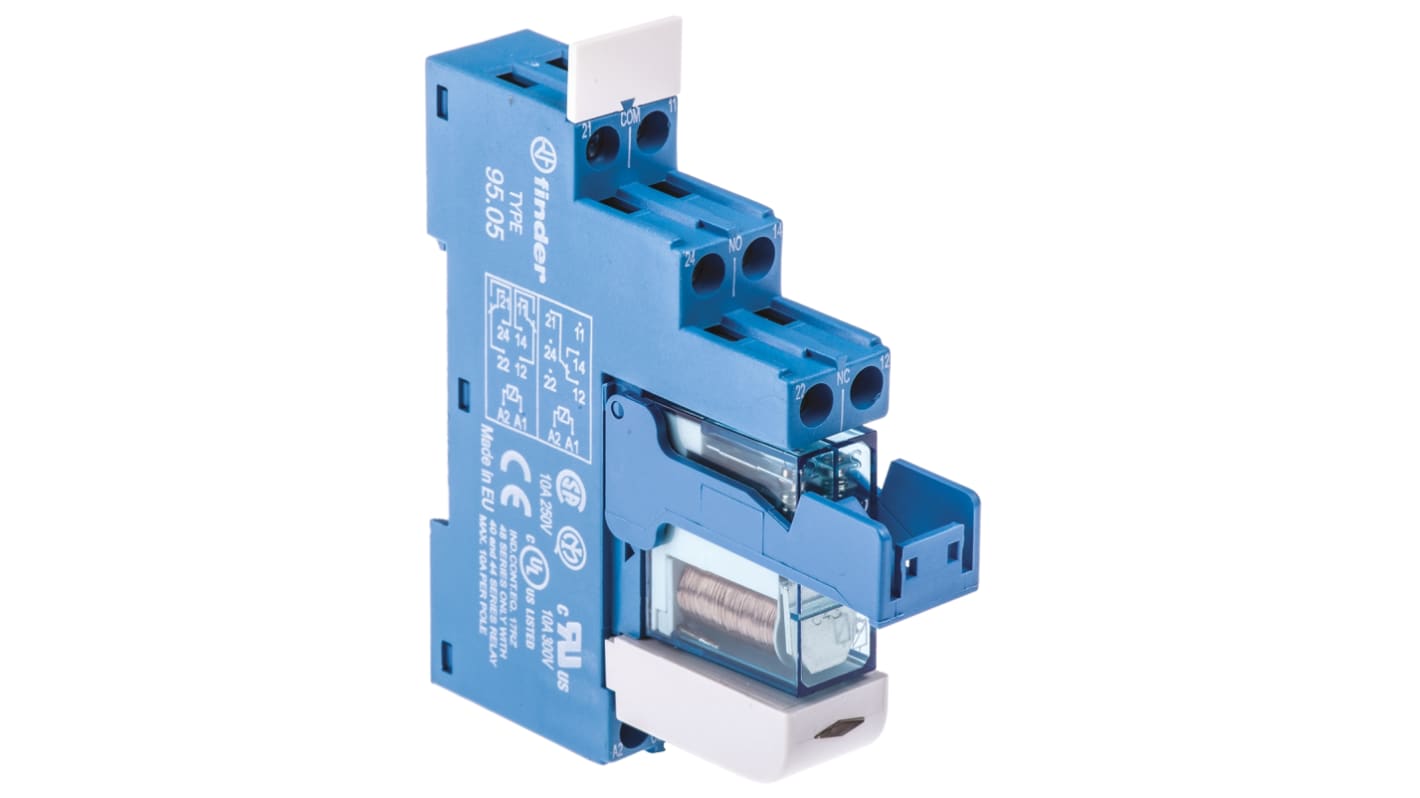

Finder 48 Series Interface Relay, DIN Rail, 12 V dc Coil, DPDT, 41 mA
- RS 제품 번호:
- 623-7141
- 제조사 부품 번호:
- 48.52.7.012.0050SPA
- 제조업체:
- Finder
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩24,064.00
재고있음
- 514 개 단위 배송 준비 완료
- 추가로 2026년 4월 10일 부터 100 개 단위 배송
- 추가로 2026년 5월 08일 부터 100 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 14 | ₩24,064.00 |
| 15 - 24 | ₩23,387.20 |
| 25 + | ₩22,428.40 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 623-7141
- 제조사 부품 번호:
- 48.52.7.012.0050SPA
- 제조업체:
- Finder
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Finder | |
| Product Type | Interface Relay | |
| Coil Resistance | 292.68Ω | |
| Coil Voltage | 12 V dc | |
| Contact Configuration | DPDT | |
| Mount Type | DIN Rail | |
| Series | 48 | |
| Terminal Type | Screw | |
| Switching Current | 8 A | |
| Switching DC Voltage | 12 V dc | |
| Minimum Operating Temperature | -40°C | |
| Coil Current | 41 mA | |
| Switching AC Voltage | 250 V ac | |
| Maximum Operating Temperature | 70°C | |
| Contact Material | Silver Alloy | |
| Standards/Approvals | CE, EAC | |
| Width | 75.3 mm | |
| Height | 78.6mm | |
| Length | 15.8mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 Finder | ||
Product Type Interface Relay | ||
Coil Resistance 292.68Ω | ||
Coil Voltage 12 V dc | ||
Contact Configuration DPDT | ||
Mount Type DIN Rail | ||
Series 48 | ||
Terminal Type Screw | ||
Switching Current 8 A | ||
Switching DC Voltage 12 V dc | ||
Minimum Operating Temperature -40°C | ||
Coil Current 41 mA | ||
Switching AC Voltage 250 V ac | ||
Maximum Operating Temperature 70°C | ||
Contact Material Silver Alloy | ||
Standards/Approvals CE, EAC | ||
Width 75.3 mm | ||
Height 78.6mm | ||
Length 15.8mm | ||
- COO (Country of Origin):
- IT
Finder Series 48 Interface Relay, 12V DC Coil Voltage, DPDT Contact Configuration - 48.52.7.012.0050SPA
This interface relay handles voltages up to 250V, making it suitable for various industrial applications. It ensures effective switching with minimal lag and operates well in tough environments.
Features & Benefits
• Supports 12V DC operation for diverse applications
• DPDT configuration enables dependable switching actions
• Designed for DIN rail mounting for easy installation
• Operates with an input current of 41mA, promoting low power consumption
• Maximum operating temperature of +70°C for longevity
• Silver alloy construction enhances conductivity
Applications
• Medical and dental equipment
• Control panels and building automation
• Elevator and lift operations
• Electrical distribution panels
• Carousel warehouses and shipyards
What voltage range is suitable for operation?
It operates optimally at a nominal voltage of 12V DC.
How is it mounted in an electrical system?
The relay is designed for installation on a standard DIN rail.
What load can be switched with this device?
It can switch loads up to 250V with a rated current of 8A.
Does this relay require specific wiring?
It features screw terminals for secure and reliable connections.
Is it compatible with different industrial systems?
Yes, it is versatile for various automation and control applications.
Approvals
BBJ; BEAB; CSA; DEMKO; FIMKO; GOST; IMQ; NEMKO; RINA; SEMKO; SEV; UL recognised component for Canada and US; UTE; VDE
