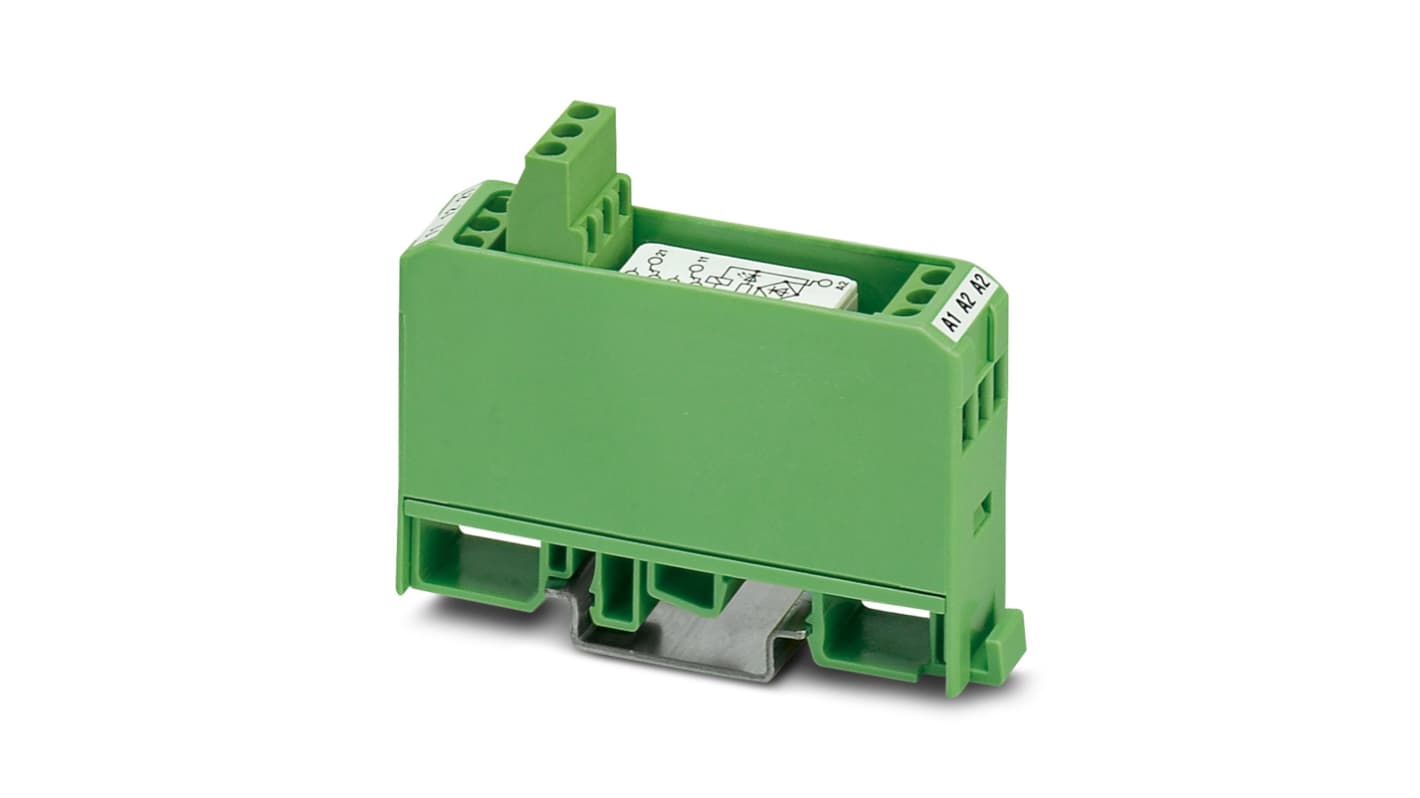

Phoenix Contact EMG Series Relay Module, DIN Rail, 48V Coil, DPDT, 10mA

본 제품군 열람하기

Subtotal (1 pack of 10 units)*

₩1,108,516.50

Add to Basket
수량 선택 또는 입력
제조사가 재고 비축중
  • 2026년 6월 05일 부터 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
팩
한팩당
한팩당*
1 +₩1,108,516.50₩110,851.65

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
135-691
제조사 부품 번호:
2940401
제조업체:
Phoenix Contact
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Phoenix Contact

Coil Voltage

48V

Product Type

Relay Module

Contact Configuration

DPDT

Mount Type

DIN Rail

Series

EMG

Terminal Type

Screw

Switching Current

5A

Coil Current

10mA

Switching DC Voltage

250V dc

Switching AC Voltage

250V ac

Minimum Operating Temperature

-20°C

Contact Material

Silver Nickel Alloy

Maximum Operating Temperature

40°C

Standards/Approvals

IEC 60664-1, EN 61810-1

Width

17.5mm

Length

62.5mm

Height

75mm

COO (Country of Origin):
DE
The Phoenix Contact relay module is designed for medium to large loads with 2 changeover contacts, suitable for an input voltage of 48V AC/DC. It offers safe isolation between the coil and contact side, with integrated input and interference suppression circuits for reliable performance. The module has a mechanical service life of approximately 5x10^7 cycles and features insulation characteristics for basic insulation and safe isolation. With approvals from cULus, UL, and EAC, this relay module is a dependable choice for various applications.

Soldered-in relay for compact applications

Two changeover contacts for versatile use

Integrated input circuit for convenience

Safe isolation between coil and contacts
