ROHM BR24H32ANUX-5ACTR, 32 kB Serial EEPROM 8-Pin VSON I2C
- RS 제품 번호:
- 260-6104P
- 제조사 부품 번호:
- BR24H32ANUX-5ACTR
- 제조업체:
- ROHM

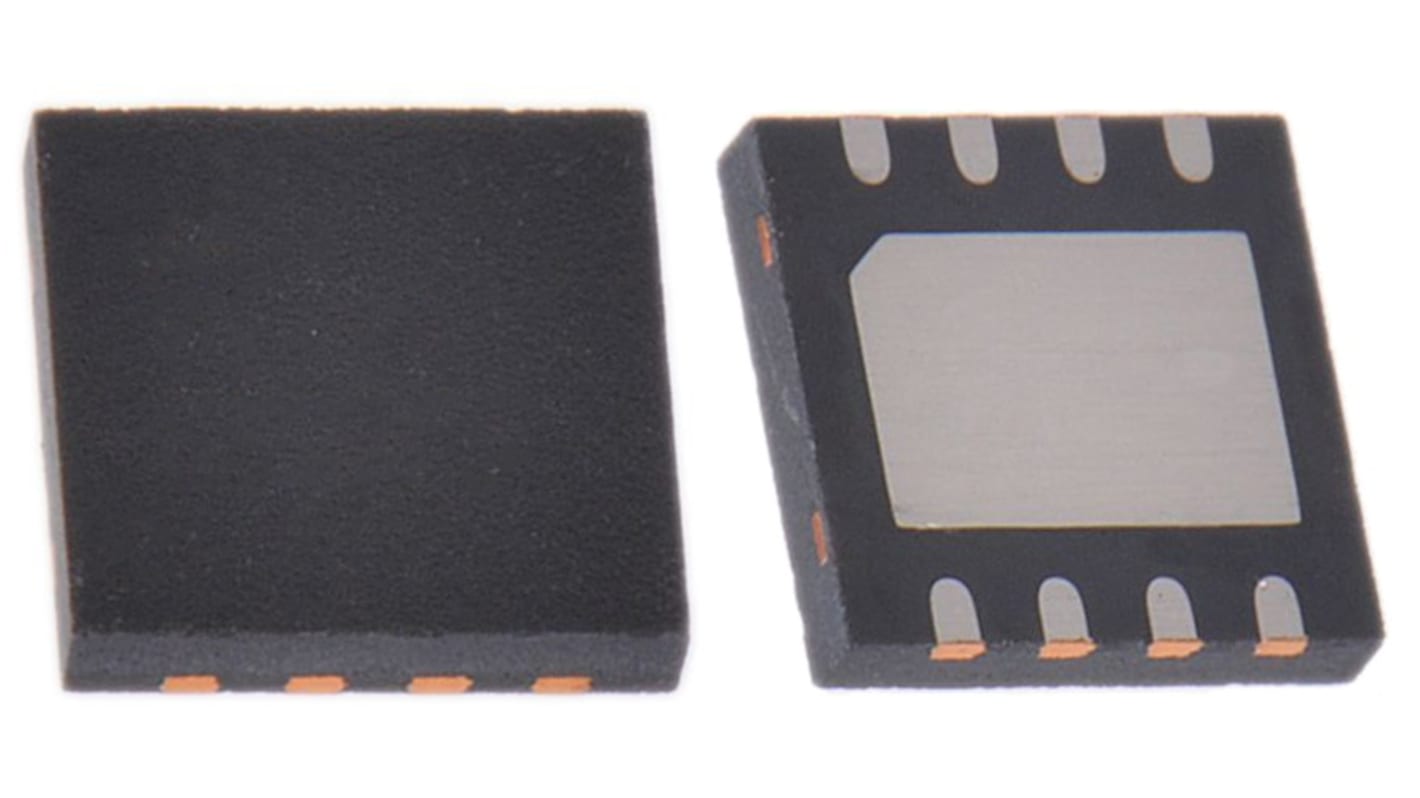

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
현재 비가용
RS는 이 제품을 더 이상 판매하지 않습니다.
- RS 제품 번호:
- 260-6104P
- 제조사 부품 번호:
- BR24H32ANUX-5ACTR
- 제조업체:
- ROHM
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | ROHM | |
| Memory Size | 32kB | |
| Product Type | Serial EEPROM | |
| Interface Type | I2C | |
| Package Type | VSON | |
| Mount Type | Surface | |
| Pin Count | 8 | |
| Organisation | 4k x 8 | |
| Maximum Clock Frequency | 1MHz | |
| Minimum Supply Voltage | 1.7V | |
| Number of Bits per Word | 8 | |
| Maximum Supply Voltage | 5.5V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Height | 600μm | |
| Length | 3mm | |
| Series | BR24H32xxx-5AC | |
| Standards/Approvals | No | |
| Width | 2mm | |
| Number of Words | 4K | |
| Automotive Standard | AEC-Q100 | |
| Supply Current | 1.7mA | |
| Data Retention | 100year | |
| 모두 선택 | ||
|---|---|---|
브랜드 ROHM | ||
Memory Size 32kB | ||
Product Type Serial EEPROM | ||
Interface Type I2C | ||
Package Type VSON | ||
Mount Type Surface | ||
Pin Count 8 | ||
Organisation 4k x 8 | ||
Maximum Clock Frequency 1MHz | ||
Minimum Supply Voltage 1.7V | ||
Number of Bits per Word 8 | ||
Maximum Supply Voltage 5.5V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Height 600μm | ||
Length 3mm | ||
Series BR24H32xxx-5AC | ||
Standards/Approvals No | ||
Width 2mm | ||
Number of Words 4K | ||
Automotive Standard AEC-Q100 | ||
Supply Current 1.7mA | ||
Data Retention 100year | ||
The ROHM BR24H32xxx-5AC Series is a 32 Kbit serial EEPROM of I2C BUS Interface. It has low current consumption and has noise filter built in SCL or SDA pin.
AEC Q100 Qualified
Functional safety supportive automotive products
Page write mode of 32 byte
Bit Format is 4 K x 8 bit
