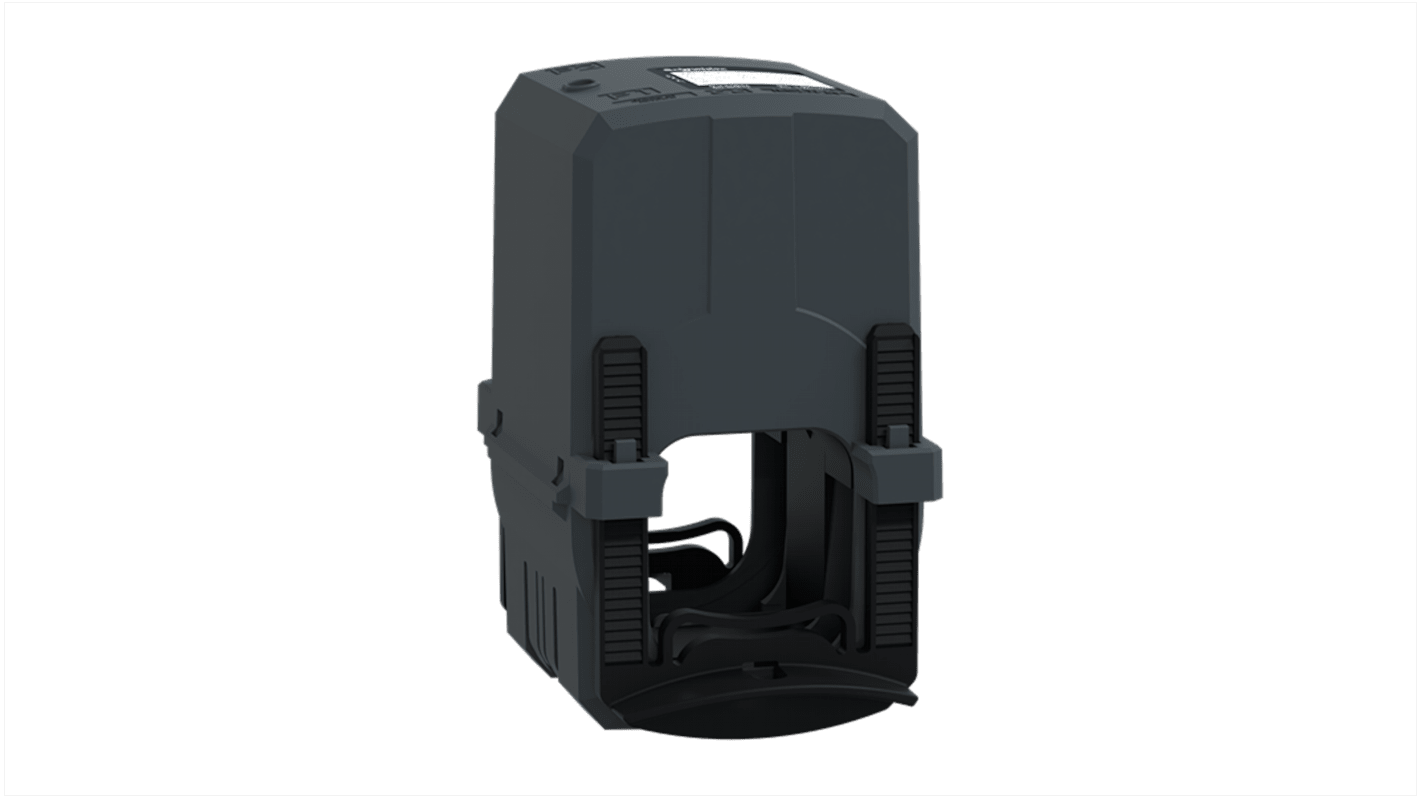

Schneider Electric PowerLogic Series Current Transformer 250 A 3 VA 720 V
- RS 제품 번호:
- 288-1418
- 제조사 부품 번호:
- METSECT5HG025
- 제조업체:
- Schneider Electric
Subtotal (1 unit)*
₩1,601,906.64
재고있음
- 추가로 2026년 3월 23일 부터 2 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩1,601,906.64 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 288-1418
- 제조사 부품 번호:
- METSECT5HG025
- 제조업체:
- Schneider Electric
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Schneider Electric | |
| Product Type | Current Transformer | |
| Series | PowerLogic | |
| Power Rating | 3VA | |
| Secondary Current | 5 A | |
| Terminal Type | Cable | |
| Minimum Operating Temperature | -5°C | |
| Primary Current | 250A | |
| Maximum Operating Temperature | 50°C | |
| Width | 59.2 mm | |
| Standards/Approvals | DIN 4600, DIN EN 61869, DIN EN 618691, EU RoHS, REACH, RoHS, VDE 0414 | |
| Depth | 89.2mm | |
| Weight | 322g | |
| Maximum Operating Frequency | 60Hz | |
| Minimum Operating Frequency | 50Hz | |
| Supply Voltage | 720 V | |
| 모두 선택 | ||
|---|---|---|
브랜드 Schneider Electric | ||
Product Type Current Transformer | ||
Series PowerLogic | ||
Power Rating 3VA | ||
Secondary Current 5 A | ||
Terminal Type Cable | ||
Minimum Operating Temperature -5°C | ||
Primary Current 250A | ||
Maximum Operating Temperature 50°C | ||
Width 59.2 mm | ||
Standards/Approvals DIN 4600, DIN EN 61869, DIN EN 618691, EU RoHS, REACH, RoHS, VDE 0414 | ||
Depth 89.2mm | ||
Weight 322g | ||
Maximum Operating Frequency 60Hz | ||
Minimum Operating Frequency 50Hz | ||
Supply Voltage 720 V | ||
- COO (Country of Origin):
- HU
The Schneider Electric Split Core Current Transformer is designed for cables with a secondary current of 5A and an accuracy class of Class 3 at 3VA. With a rated current of 250A, this current transformer offers a split core design and is suitable for a variety of applications. The device features a conventional free air thermal current of 300A and has a mounting mode of clip-on, making it easy to install and use in different scenarios.
Secondary current of 5A for accurate readings
Rated current of 250A for high power applications
Split core design for easy installation on cables
Conventional free air thermal current of 300A for safe operation
Mounting mode of clip on for versatile use
