Schneider Electric PowerLogic Series Current Transformer 250 A 720V
- RS 제품 번호:
- 119-314
- 제조사 부품 번호:
- METSECT5GA025
- 제조업체:
- Schneider Electric
Subtotal (1 unit)*
₩1,735,480.50
제조사가 재고 비축중
- 2026년 6월 29일 부터 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩1,735,480.50 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS 제품 번호:
- 119-314
- 제조사 부품 번호:
- METSECT5GA025
- 제조업체:
- Schneider Electric
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Schneider Electric | |
| Product Type | Current Transformer | |
| Series | PowerLogic | |
| Secondary Current | 5A | |
| Minimum Operating Temperature | -5°C | |
| Primary Current | 250A | |
| Maximum Operating Temperature | 40°C | |
| Length | 106.15mm | |
| Weight | 0.63kg | |
| Standards/Approvals | VDE 0414 DIN 4600 DIN EN 618691 DIN EN 61869 | |
| Width | 93mm | |
| Depth | 58mm | |
| Better World Claim | Designed for Disassembly | |
| Mount Type | DIN Rail, Screw | |
| Better World Product | Yes | |
| Supply Voltage | 720V | |
| 모두 선택 | ||
|---|---|---|
브랜드 Schneider Electric | ||
Product Type Current Transformer | ||
Series PowerLogic | ||
Secondary Current 5A | ||
Minimum Operating Temperature -5°C | ||
Primary Current 250A | ||
Maximum Operating Temperature 40°C | ||
Length 106.15mm | ||
Weight 0.63kg | ||
Standards/Approvals VDE 0414 DIN 4600 DIN EN 618691 DIN EN 61869 | ||
Width 93mm | ||
Depth 58mm | ||
Better World Claim Designed for Disassembly | ||
Mount Type DIN Rail, Screw | ||
Better World Product Yes | ||
Supply Voltage 720V | ||
- COO (Country of Origin):
- HU

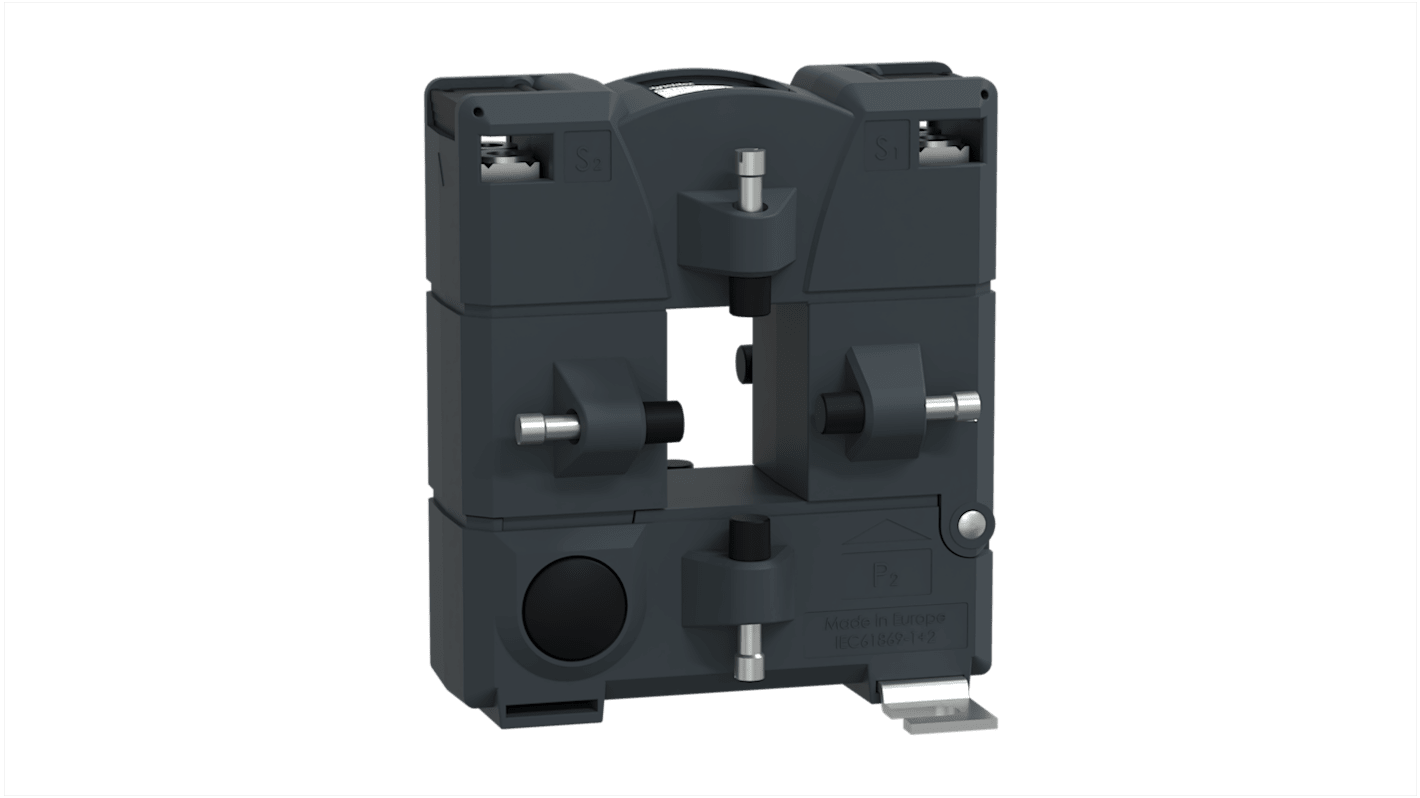

The Schneider Electric PowerLogic Split Core Current Transformer Type GA is designed for accurate secondary current measurement with an accuracy class of Class 1 at 1.5 VA. It has a conventional free air thermal current of 250 A and can withstand a maximum safety factor of 5. With a compact design and easy DIN rail mounting, this current transformer is suitable for various applications.
Compact design with DIN rail mounting for easy installation
