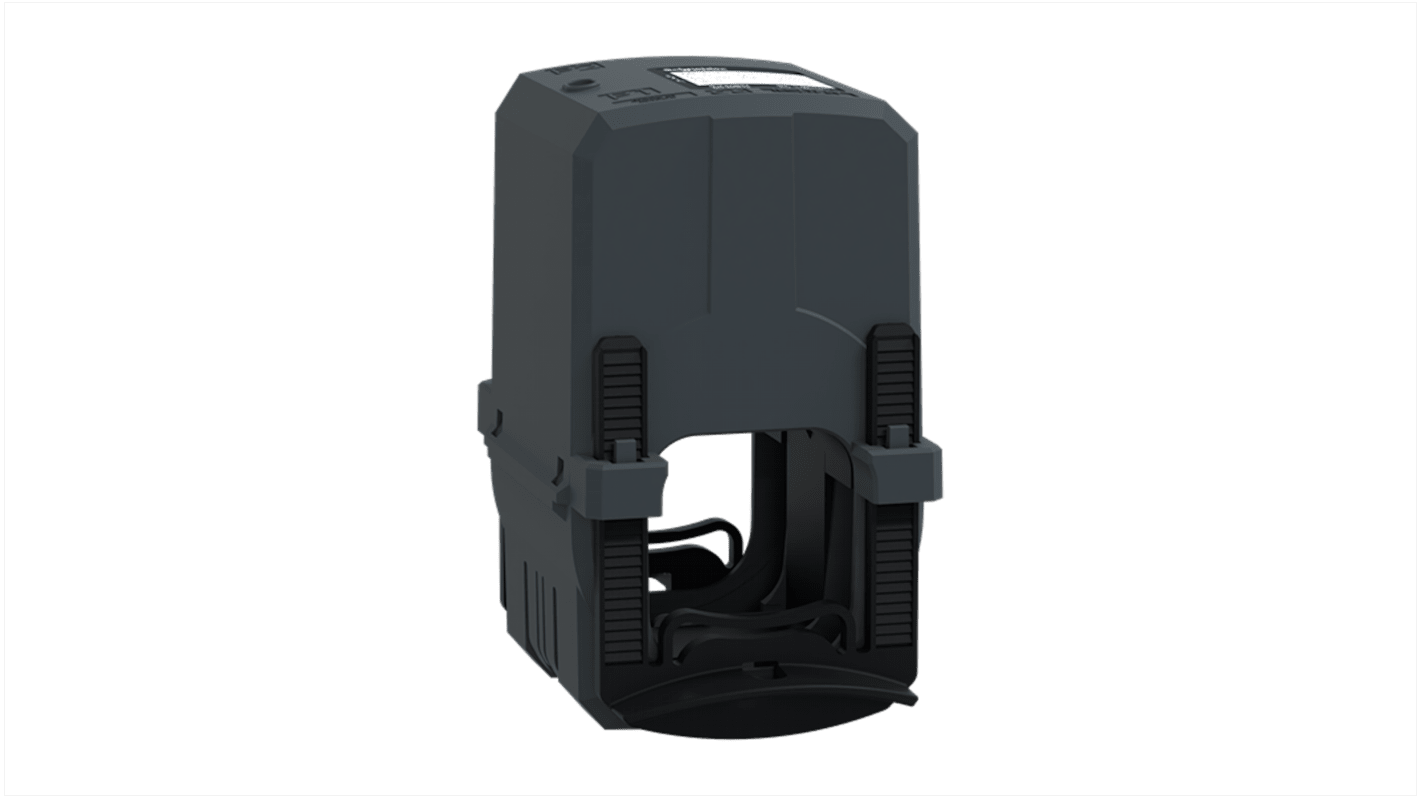

Schneider Electric PowerLogic Series Current Transformer 200 A 720 V
- RS 제품 번호:
- 288-1417
- 제조사 부품 번호:
- METSECT5HG020
- 제조업체:
- Schneider Electric
Subtotal (1 unit)*
₩1,553,562.44
현재 액세스할 수 없는 재고 정보 - 나중에 다시 확인해 주세요.
수량 | 한팩당 |
|---|---|
| 1 + | ₩1,553,562.44 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 288-1417
- 제조사 부품 번호:
- METSECT5HG020
- 제조업체:
- Schneider Electric
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Schneider Electric | |
| Product Type | Current Transformer | |
| Series | PowerLogic | |
| Secondary Current | 5 A | |
| Terminal Type | Cable | |
| Primary Current | 200A | |
| Minimum Operating Temperature | -5°C | |
| Maximum Operating Temperature | 50°C | |
| Width | 59.2 mm | |
| Standards/Approvals | RoHS, DIN EN 61869, REACH, DIN EN 618691, EU RoHS, VDE 0414, DIN 4600 | |
| Depth | 89.2mm | |
| Maximum Operating Frequency | 60Hz | |
| Supply Voltage | 720 V | |
| Minimum Operating Frequency | 50Hz | |
| 모두 선택 | ||
|---|---|---|
브랜드 Schneider Electric | ||
Product Type Current Transformer | ||
Series PowerLogic | ||
Secondary Current 5 A | ||
Terminal Type Cable | ||
Primary Current 200A | ||
Minimum Operating Temperature -5°C | ||
Maximum Operating Temperature 50°C | ||
Width 59.2 mm | ||
Standards/Approvals RoHS, DIN EN 61869, REACH, DIN EN 618691, EU RoHS, VDE 0414, DIN 4600 | ||
Depth 89.2mm | ||
Maximum Operating Frequency 60Hz | ||
Supply Voltage 720 V | ||
Minimum Operating Frequency 50Hz | ||
- COO (Country of Origin):
- HU
The Schneider Electric Split Core Current Transformer is a high quality product designed for accurate current measurement in power systems. With a range of 200A and an accuracy class of Class 3 at 3VA, this current transformer ensures precise readings for optimal performance. Its compact design and clip-on mounting mode make it easy to install in various applications, helping to streamline operations and improve efficiency.
Secondary current of 5A for accurate measurements
Conventional free air thermal current of 240A for reliable operation
Rated insulation voltage of 3kV for enhanced safety
Clip on mounting mode for easy installation
Compliant with DIN EN and VDE standards for quality assurance
