MikroElektronika MIKROE-2333 Elapsed Time Counter MikroBus Click Board for DS1682
- RS 제품 번호:
- 136-0825
- 제조사 부품 번호:
- MIKROE-2333
- 제조업체:
- MikroElektronika
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩35,532.00
재고있음
- 추가로 2026년 3월 09일 부터 7 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 4 | ₩35,532.00 |
| 5 + | ₩34,460.40 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 136-0825
- 제조사 부품 번호:
- MIKROE-2333
- 제조업체:
- MikroElektronika
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | MikroElektronika | |
| Product Type | Clock & Timer Development Kit | |
| Clock/Timer Function | Elapsed Time Counter | |
| Kit Classification | MikroBus Click Board | |
| Featured Device | DS1682 | |
| Standards/Approvals | No | |
| 모두 선택 | ||
|---|---|---|
브랜드 MikroElektronika | ||
Product Type Clock & Timer Development Kit | ||
Clock/Timer Function Elapsed Time Counter | ||
Kit Classification MikroBus Click Board | ||
Featured Device DS1682 | ||
Standards/Approvals No | ||

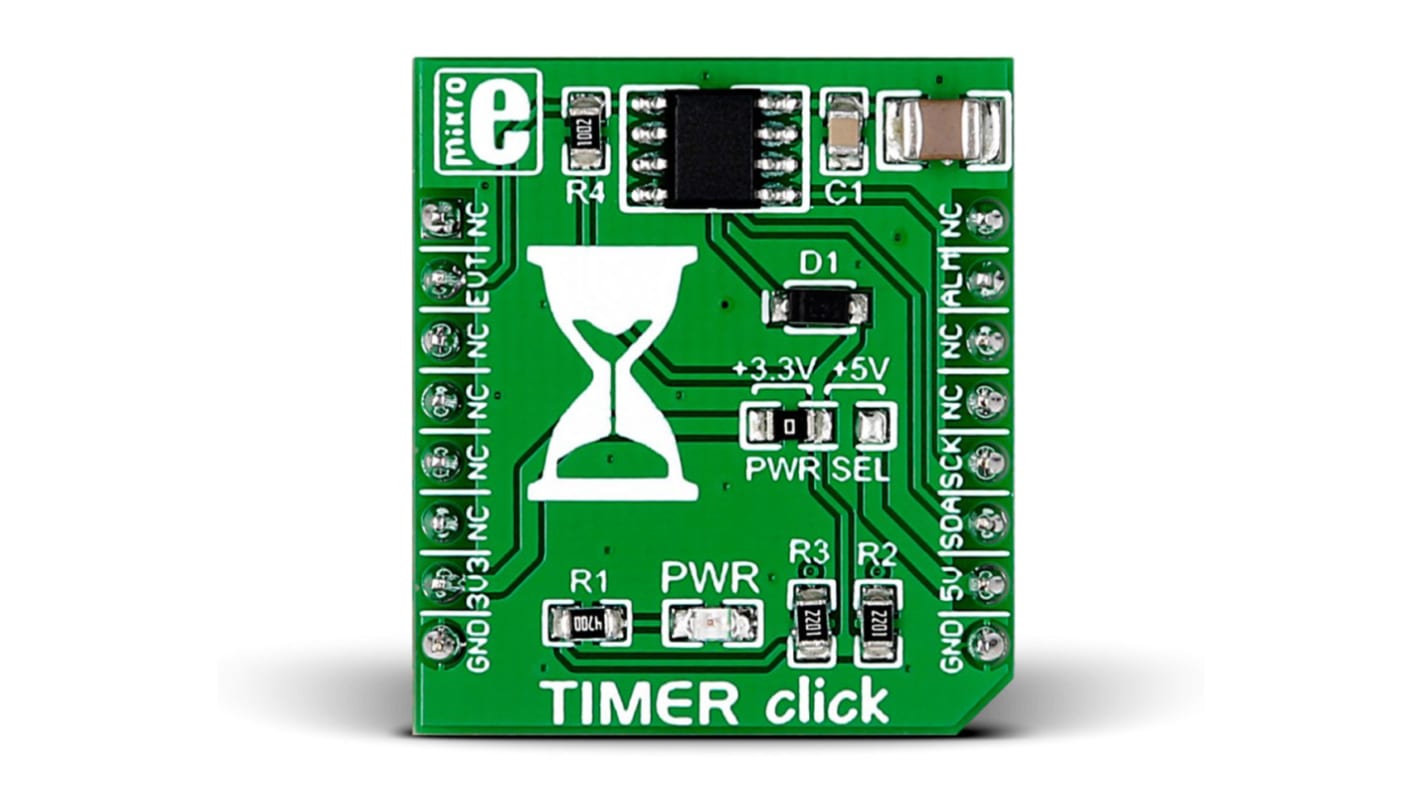

TIMER click mikroBUS™
TIMER click is a mikroBUS add-on board for recording Elapsed-Time. It features the Maxim DS1682, a Total-Elapsed-Time Recorder with Alarm. A 32-Bit Elapsed Time Counter monitors the event duration with a Quarter of a Second resolution. The TIMER click records the total time that the event input has been active, and the number of events that have occurred.
Programmable Elapsed Time Alarm output (Active-Low or High Impedance)
Event Input (Active high)
EEPROM maintains timer user data (10 Bytes) without power supply
I²C Bus interface on mikroBUS socket
3.3 V (default) or 5 V power supply on mikroBUS socket
Dimensions 28.6 x 25.4 mm
Click mikroBUS Boards
MikroElektronika has designed a range of boards to add new functions and enhance the development of your applications using the mikroBUS™ pinout standard socket. All in one click!
Click™ boards can add a range of sensing, Bluetooth, Wi-Fi, extra memory, UART communications, audio and much more functionality to your designs. Some boards also act as extensions for development platforms such as the Beaglebone, Arduino Uno and Raspberry Pi.
Note
Click board comes with the header strips soldered.
