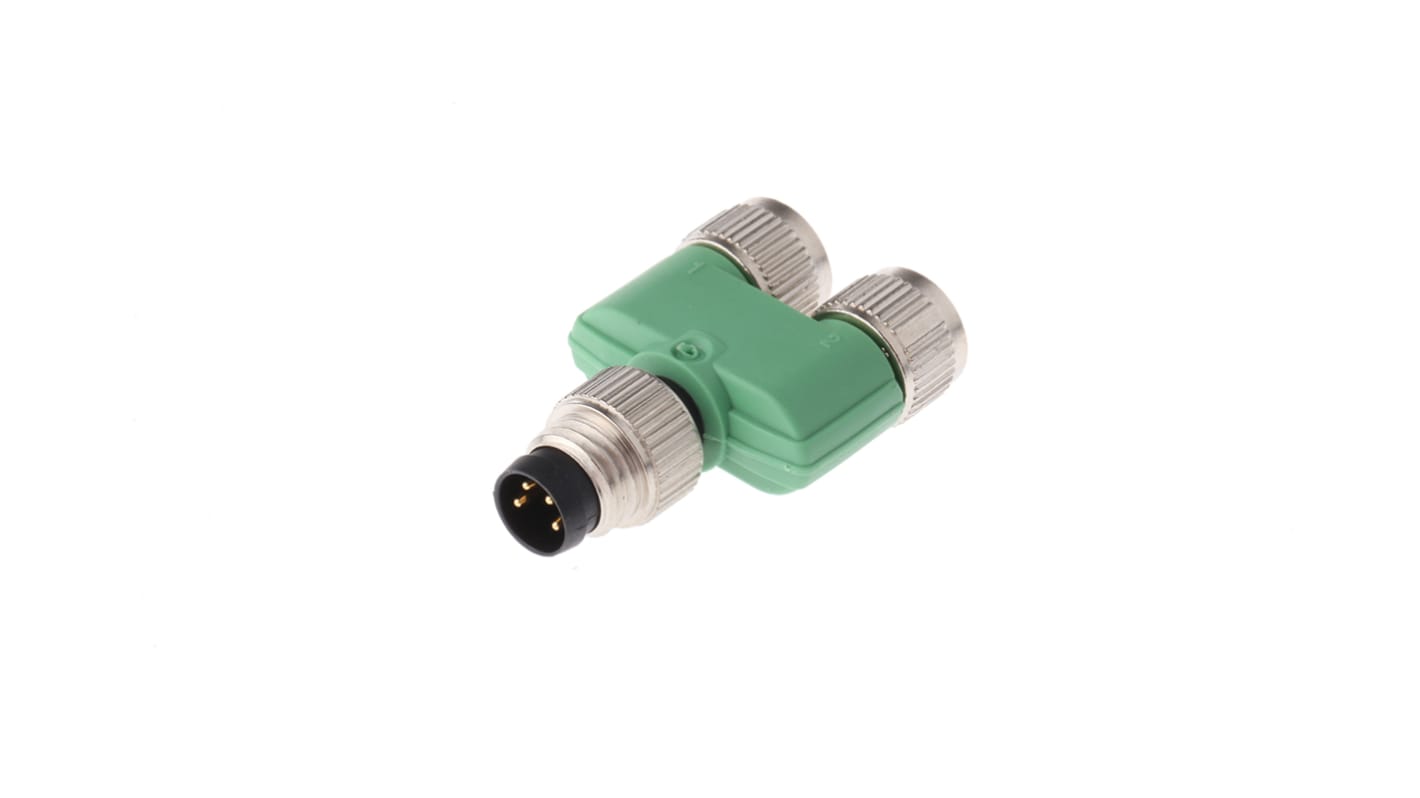

Phoenix Contact 4 Pole M8 Plug to 6 Pole M8 Socket Adapter

RS 제품 번호:: 721-1383
제조사 부품 번호:: 1696183
제조업체:: Phoenix Contact

Phoenix Contact 4 Pole M8 Plug to 6 Pole M8 Socket Adapter

대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩41,961.60

재고있음

14 개 단위 배송 준비 완료
추가로 2025년 12월 24일 부터 25 개 단위 배송

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 - 14	₩41,961.60
15 - 49	₩40,702.00
50 - 99	₩39,442.40
100 - 249	₩38,596.40
250 +	₩37,769.20

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 721-1383
제조사 부품 번호:: 1696183
제조업체:: Phoenix Contact

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Phoenix Contact
	End 1	M8
	End 1 Number of Contacts	4
	End 1 Number of Ports	1
	End 1 Gender	Male
	End 2	3 Pin Female M8 (2)
	End 1 Size	M8
	End 2 Number of Contacts	6
	End 2 Number of Ports	2
	End 2 Gender	Female
	End 2 Size	M8
	Current Rating	4A
	IP Rating	IP65, IP67
	Voltage Rating	30 V
	Body Orientation	Straight
	Length	33.7mm
	Minimum Operating Temperature	-25°C
	Maximum Operating Temperature	+90°C
	Contact Plating	Gold over Nickel
	Shell Plating	Nickel
	Contact Material	Brass

	모두 선택
	브랜드 Phoenix Contact
	End 1 M8
	End 1 Number of Contacts 4
	End 1 Number of Ports 1
	End 1 Gender Male
	End 2 3 Pin Female M8 (2)
	End 1 Size M8
	End 2 Number of Contacts 6
	End 2 Number of Ports 2
	End 2 Gender Female
	End 2 Size M8
	Current Rating 4A
	IP Rating IP65, IP67
	Voltage Rating 30 V
	Body Orientation Straight
	Length 33.7mm
	Minimum Operating Temperature -25°C
	Maximum Operating Temperature +90°C
	Contact Plating Gold over Nickel
	Shell Plating Nickel
	Contact Material Brass

Datasheet 1696183

SAC 3-pole distributors from Phoenix Contact

The 3-pole Y distributors from Phoenix contact come in a variation of M8 & M12 outputs. They're unshielded connectors with the coding of 'A' and will allow you to connect two sensor-actuator cables and output them via 1 single M8 or M12 connection. Not only are these distributors great in the line of duty thanks to there effortless connection method (plugin) but they make great use in more permanent situations too, allowing you to use these for any applications. These devices are backed by a brilliant IP67 rating, so can again be used as a quick deployment tool or in a permanent industrial application.

Not to mention, the Y distributor is designed to be used in harsh environments so it can handle operating temperatures of -25°C up to 90°C, with a strong housing and metal zinc cast knurls.

Features and benefits:

Y Distributor: 2 inputs into 1 output

Standard coding A with a straight socket

Parallell distributor

Backed by an IP67 rating when fully mated with other connectors

48 V AC/60 V DC rated voltage

Phoenix Contact Y Distributor, 3 Pole, M8 - SAC-3P-M 8Y/2XM 8FS - 1696183

Electrically connect two sensor cables to one output with this Y distributor from Phoenix Contact. A rugged design makes the device well-suited to harsh industrial environments, and you can use it as a permanent or temporary connection point. It has a voltage rating of 30V and three M8 ports.
The distributor is easy to hook up, thanks to its tool-free, plug-in connectors that provide a secure and durable join. Its TPU (thermoplastic polyurethane) body is outstandingly tough with high resistance to impact and abrasion. This material is also self-extinguishing so won't burn in the event of a fire. Die-cast zinc knurls ensure the connectors stay firmly attached to the plug's housing, even when frequently inserted and removed.
This circular socket connector is a popular choice for automation, infrastructure and railway applications. Its modular structure means you can easily integrate it into a system with other signal and data supply connectors from Phoenix Contact.

• IP67 (ingress protection) rated for protection against dust and brief submersion in water
• Conforms to the RoHS (Restriction of Hazardous Substances) directive, meaning it contains no more than minimal levels of hazardous substances
• Meets the ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 electrostatic control standards, so it won't damage equipment via electrostatic discharge

Phoenix Contact - PLUSCON field

Phoenix Contact 4 Pole M8 Plug to 6 Pole M8 Socket Adapter

SAC 3-pole distributors from Phoenix Contact

Features and benefits:

Phoenix Contact Y Distributor, 3 Pole, M8 - SAC-3P-M 8Y/2XM 8FS - 1696183
