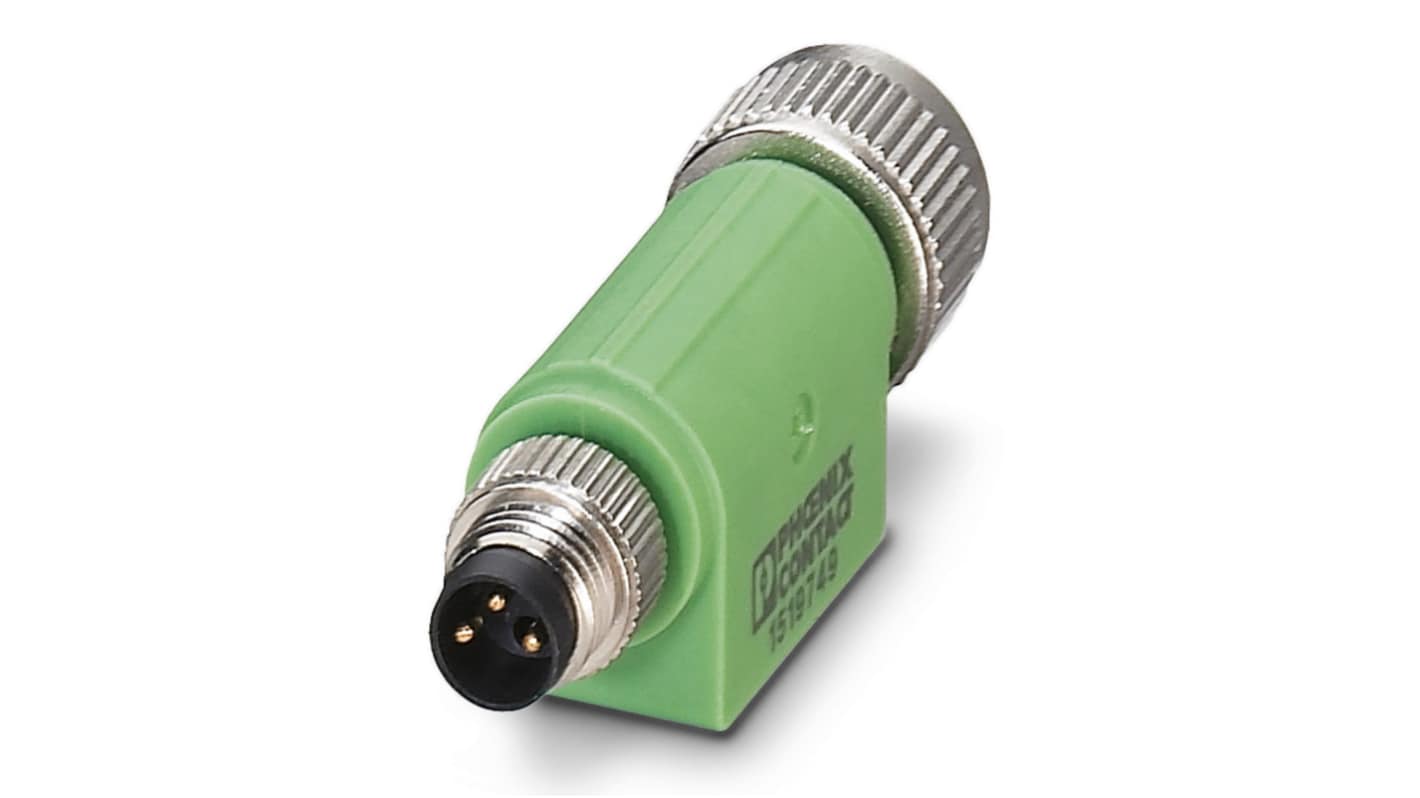

Phoenix Contact 3 Pole M8 Plug to 3 Pole M12 Socket Adapter
- RS 제품 번호:
- 721-1415
- 제조사 부품 번호:
- 1519749
- 제조업체:
- Phoenix Contact
일시 품절-다음 입고 날짜는 08/05/2024 (일/월/년) 이며, 그 후 5-10영업일내 홍콩에서 발송. 정확한 입고 수량에 대한 문의는 krenquiry@rs-components.com 로 연락주세요.
추가완료!
단가 개당
₩27,793.314
| 수량 | 한팩당 |
| 1 - 14 | ₩27,793.314 |
| 15 - 49 | ₩26,961.912 |
| 50 - 99 | ₩26,127.06 |
| 100 - 249 | ₩25,569.918 |
| 250 + | ₩25,012.775 |
대체품
이 제품은 현재 공급 불가입니다. 아래 제품들은 당사에서 추천드리는 대체품입니다.
- RS 제품 번호:
- 721-1415
- 제조사 부품 번호:
- 1519749
- 제조업체:
- Phoenix Contact
제정법과 컴플라이언스
- COO (Country of Origin):
- DE
제품 세부 사항
M8 and M12 adapter
These SAC-3P adapters from Phoenix Contact are a range of M8 to M12, or M12 to M8 adapters that are perfect for either permanent solutions or quick, field connections. They're a standard coding 'A' and come backed by an excellent IP67 rating when mated with other connectors for versatile uses. Not to mention, they can work in harsh conditions.
The easy plugin system allows effortless connection of sensor and actuator cables to have your systems up and running in a fraction of the time than splicing other circular connectors onto cables. SAC-3P adapters have been built with quality in mind, as the housing is built from durable plastic, with zinc metal knurls holding the connectors in place.
The easy plugin system allows effortless connection of sensor and actuator cables to have your systems up and running in a fraction of the time than splicing other circular connectors onto cables. SAC-3P adapters have been built with quality in mind, as the housing is built from durable plastic, with zinc metal knurls holding the connectors in place.
Features and benefits:
Sensor/ actuator adapter for the transition of M8 to M12
Phoenix Contact M8 Plug to M12 Socket Adapter, 3 Pole, 4A Current Rating - SAC-3P-M 8MS-M12FS - 1519749
Looking for a versatile socket adapter? This one from Phoenix Contact features an M8 male end and an M12 female end. It's easy to connect and disconnect, so you can use it for both permanent and temporary field connections to power electronic devices and transfer data.
Because there's no need to splice wires, electrical connections are quick and hassle-free to achieve. The housing is made of TPU that resists abrasion and chemicals, so delivers an extended service life in harsh conditions. This material is also durable, so it's unlikely to break even with frequent use. Protection against voltage surges adds to the safety of the adapter.
This handy unit is reusable and you can safely insert and unplug it up to 100 times without impacting its performance. It's suitable to use in aerospace and military applications and to connect equipment such as actuators and sensors.
Because there's no need to splice wires, electrical connections are quick and hassle-free to achieve. The housing is made of TPU that resists abrasion and chemicals, so delivers an extended service life in harsh conditions. This material is also durable, so it's unlikely to break even with frequent use. Protection against voltage surges adds to the safety of the adapter.
This handy unit is reusable and you can safely insert and unplug it up to 100 times without impacting its performance. It's suitable to use in aerospace and military applications and to connect equipment such as actuators and sensors.
• Made of self-extinguishing material, so it won't contribute to an electrical fire
• IP67 rated connection when mated, meaning it's dust-tight and protected against immersion in up to 1m of water
• Robust nitrile rubber seal withstands above-average wear and tear
• Die-cast knurls for an easy grip, with or without gloves
• IP67 rated connection when mated, meaning it's dust-tight and protected against immersion in up to 1m of water
• Robust nitrile rubber seal withstands above-average wear and tear
• Die-cast knurls for an easy grip, with or without gloves
Phoenix Contact - PLUSCON field
사양
속성 | 값 |
|---|---|
| End 1 | M8 |
| End 1 Number of Contacts | 3 |
| End 1 Number of Ports | 1 |
| End 1 Gender | Male |
| End 2 | 3 Pin Female M12 (1) |
| End 1 Size | M8 |
| End 2 Number of Contacts | 3 |
| End 2 Number of Ports | 1 |
| End 2 Gender | Female |
| End 2 Size | M12 |
| Current Rating | 4A |
| IP Rating | IP65, IP67 |
| Voltage Rating | 60 V |
| Series | SAC |
| Body Orientation | Straight |
| Maximum Operating Temperature | +90°C |
| Minimum Operating Temperature | -25°C |
| Contact Material | Copper Tin Alloy |
| Shell Plating | Nickel |
| Contact Plating | Gold over Nickel |
| Length | 52.7mm |
