Phoenix Contact Straight Circular Connector Adapter 4 M12 Male 6 M8 Female

모든 Circular Connector Adapters 열람하기
대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩44,460.00

Add to Basket
수량 선택 또는 입력
재고있음
  • 25 개 단위 배송 준비 완료
  • 추가로 2026년 5월 29일 부터 20 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량
한팩당
1 - 14₩44,460.00
15 - 49₩43,114.50
50 - 99₩41,769.00
100 - 249₩40,911.00
250 +₩39,916.50

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
721-1395
제조사 부품 번호:
1523984
제조업체:
Phoenix Contact
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Phoenix Contact

Product Type

Circular Connector Adapter

Connector Gender A

Male

Contact Gender A

Male

Connector Size A

M12

Current

4A

Contact Gender B

Female

Connector Size B

M8

Connector Gender B

Female

Number of Contacts A

4

Number of Ports A

1

Number of Ports B

2

Number of Contacts B

6

Minimum Operating Temperature

-25°C

Maximum Operating Temperature

90°C

IP Rating

IP67, IP65

Series

SAC

Voltage

60V

Standards/Approvals

No

Orientation

Straight

Contact Plating

Gold over Nickel

Contact Material

Brass

Shell Plating

Nickel

Length

40.7mm

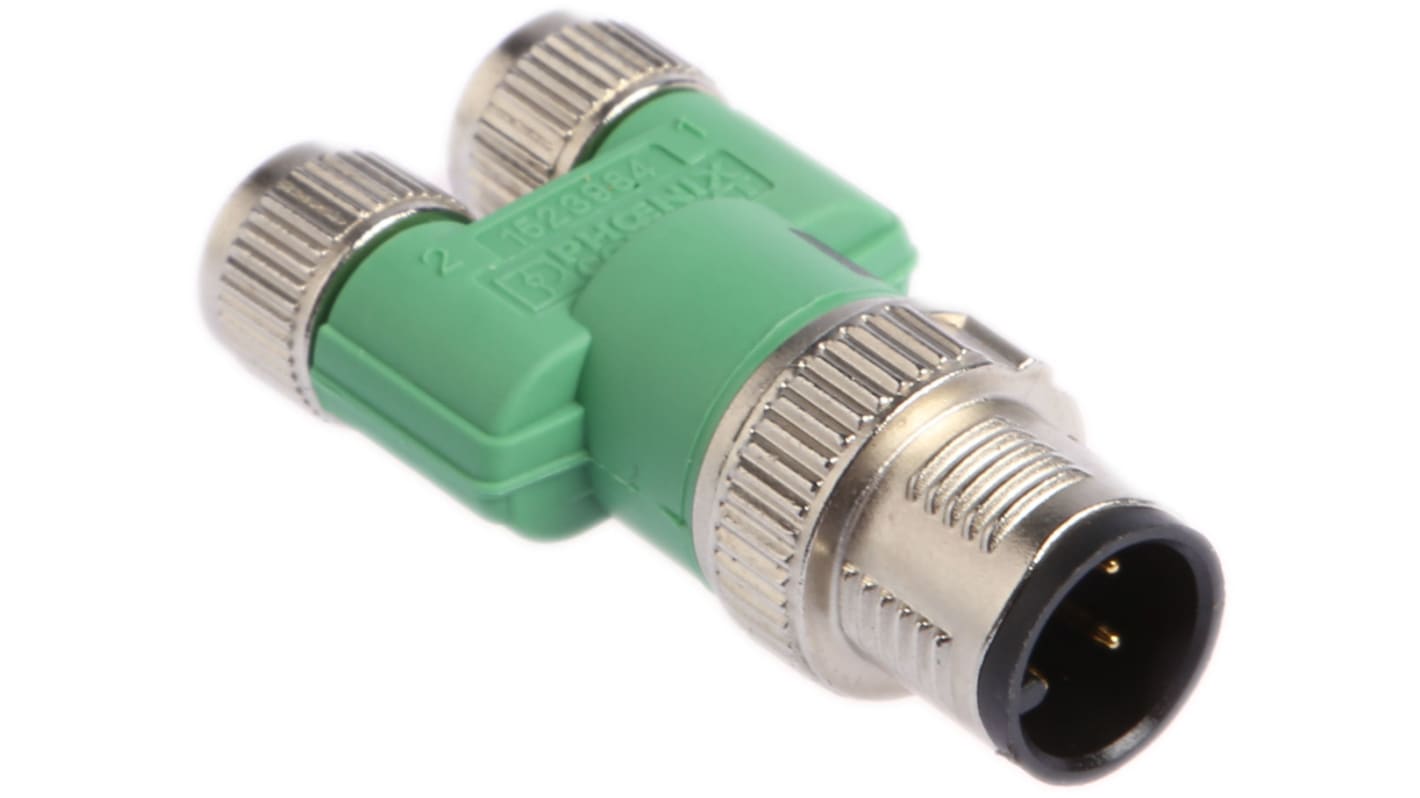

Phoenix Contact M12 Plug To M8 Socket Y Adapter, 4A, 60V - SAC-3P-Y/2XM 8FS SCO - 1523984


This Y adapter from Phoenix Contact lets you connect two sensor cables to one output port. It reduces the need for multiple plugs and is easy to connect and disconnect. An adaptor like this is suited to industrial environments and polluted conditions, such as those found in manufacturing factories.

The component has a strong plastic housing that's long-lasting and resistant to corrosion. As its body is self-extinguishing, there's little risk of the adapter contributing to an electrical fire. Die-cast zinc knurls withstand frequent use, so the connector can be mated multiple times while still retaining its reliability. Thanks to gold-plated contacts, it delivers superior electrical conductivity and withstands the corrosive effects of moist environments.

Use this connector to make reliable and strong temporary or permanent electrical connections. It's IP67 (ingress protection) rated when mated, so offers full protection against dust and water.

• Wide operating temperature range of -25°C to +90°C so will function in harsh industrial environments

• Protected against surge voltages for reliable operation in fluctuating power conditions

• Nitrile rubber (NBR) seals are long-lasting and withstand rough handling

• Insulated to reduce the risk of electric shocks during handling and installation

SAC 3-pole distributors from Phoenix Contact


The 3-pole Y distributors from Phoenix contact come in a variation of M8 & M12 outputs. They're unshielded connectors with the coding of 'A' and will allow you to connect two sensor-actuator cables and output them via 1 single M8 or M12 connection. Not only are these distributors great in the line of duty thanks to there effortless connection method (plugin) but they make great use in more permanent situations too, allowing you to use these for any applications. These devices are backed by a brilliant IP67 rating, so can again be used as a quick deployment tool or in a permanent industrial application.

Not to mention, the Y distributor is designed to be used in harsh environments so it can handle operating temperatures of -25°C up to 90°C, with a strong housing and metal zinc cast knurls.

Features and benefits:


  • Y Distributor: 2 inputs into 1 output

  • Standard coding A with a straight socket

  • Parallell distributor

  • Backed by an IP67 rating when fully mated with other connectors

  • 48 V AC/60 V DC rated voltage

    • Phoenix Contact - PLUSCON field
